STARTING MOTOR

GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

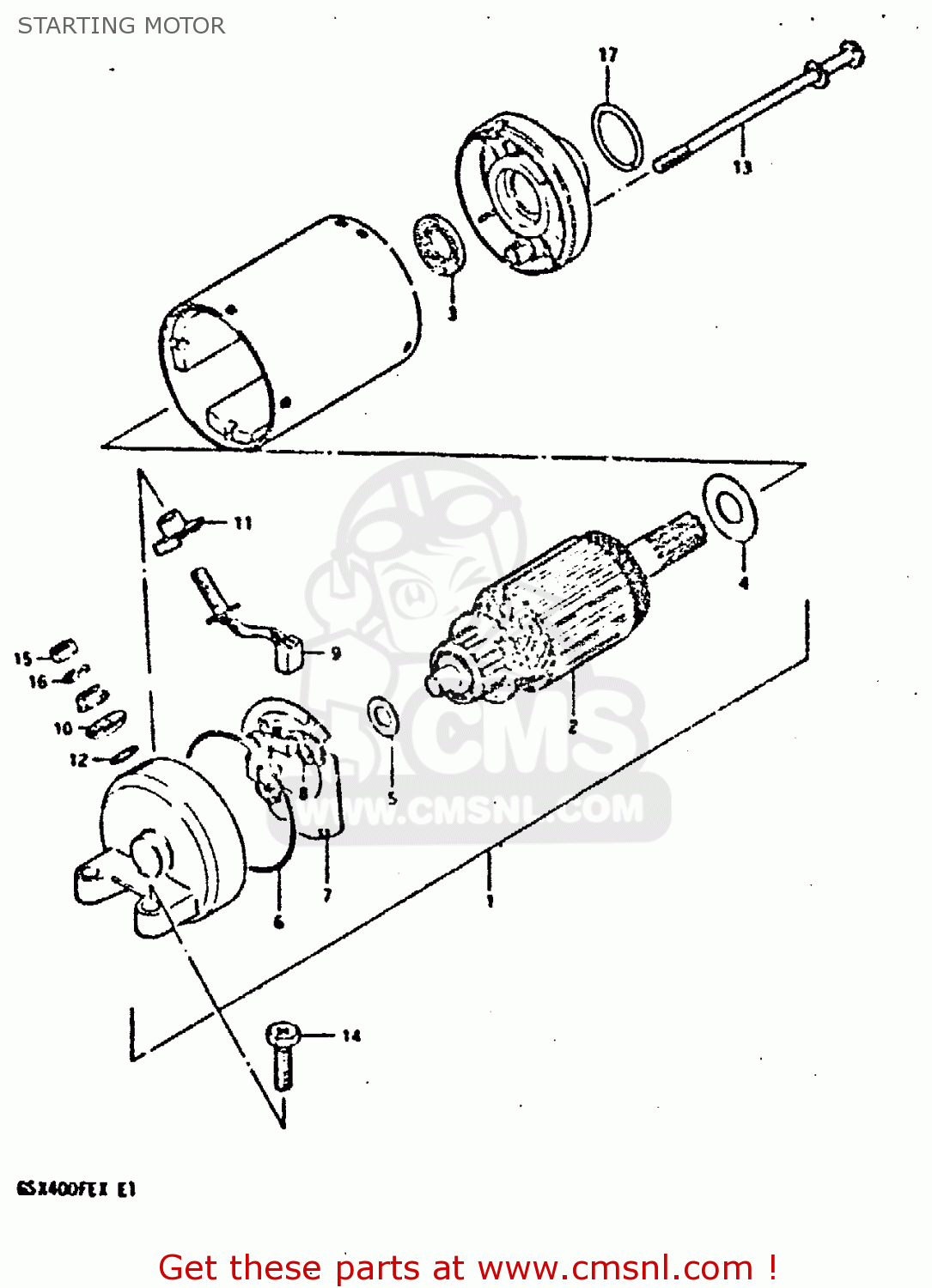

Starting motor diagram GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

3134644110
ref: 1

MOTOR ASSY, STARTING

€ 0.00

3137144110
ref: 2

ARMATURE

€ 0.00

3115345010
ref: 3

SEAL,OIL

€ 19.50

3156110200
ref: 4

SHIM (A)

€ 0.00

3135147010
ref: 5

SHIM (B)

€ 0.00

3126444110
ref: 6

O RING

€ 8.00

3113244110
ref: 7

HOLDER,BRUSH

€ 47.00

3113565010
ref: 8

SPRING

€ 3.00

3113044110
ref: 9

BRUSH (+)

€ 12.50

3117244110
ref: 10

BUSHING (1)

€ 6.00

3117144110
ref: 11

BUSH,NO.2

€ 8.00

3114344110
ref: 12

O-RING

€ 3.00

3128144110
ref: 13

BOLT,STARTING MOTOR HOUSING

€ 11.50

0912806024
ref: 14

SCREW (6X25)

€ 2.50

0831022068
ref: 15

NUT 6MM

€ 2.50

0832121068
ref: 16

LOCK WASHER

€ 2.50

0928024001
ref: 17

O RING(D:2,ID:24.5)

€ 2.00
