CYLINDER HEAD

GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

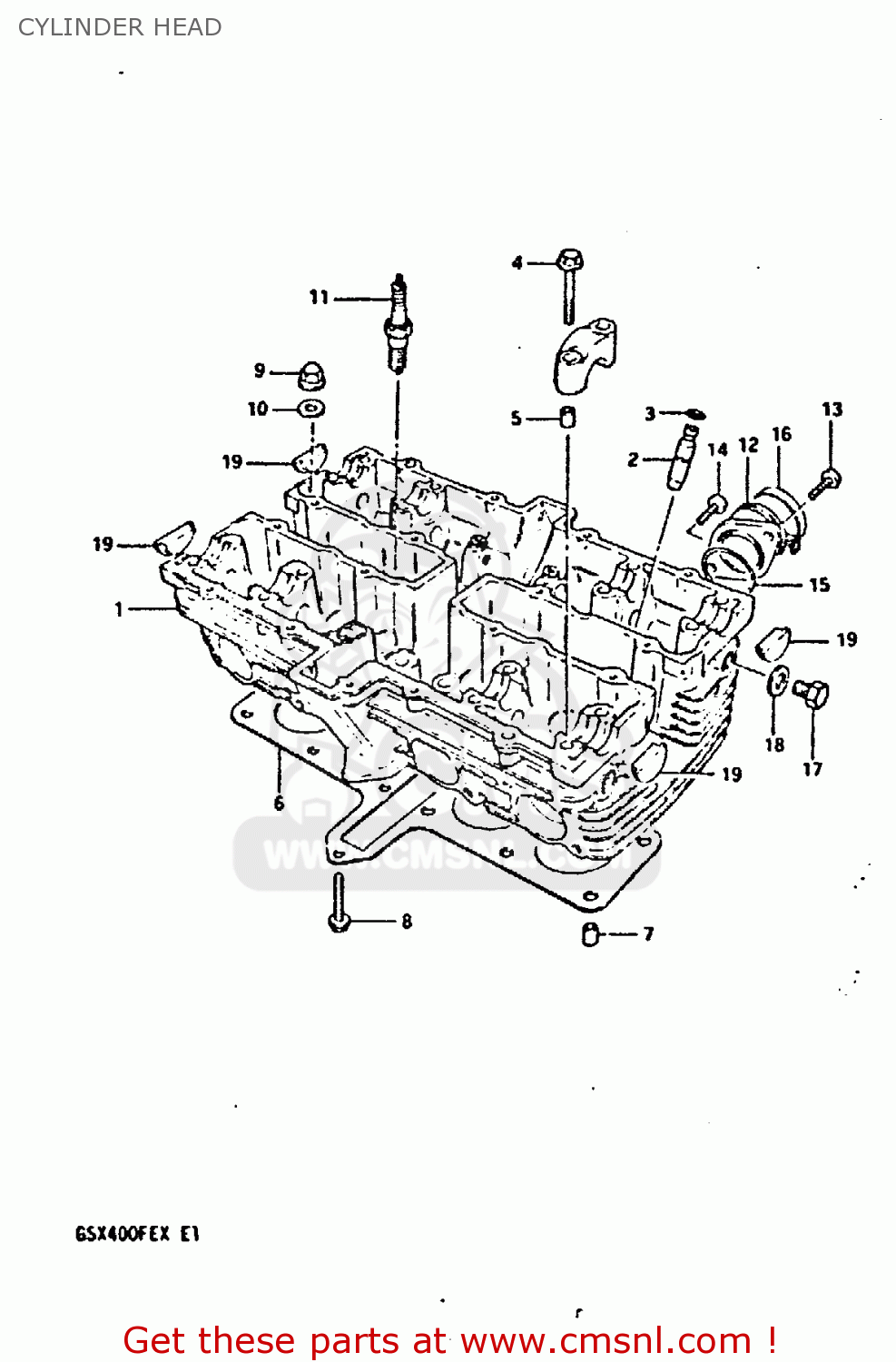

Cylinder head diagram GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

1110033200
ref: 1

CYLINDER HEAD SET

€ 940.00

1111533270
ref: 2

GUIDE, INTAKE VALVE

€ 18.00

0938110004
ref: 3

RING,SNAP

€ 1.50

0910306026
ref: 4

BOLT(6X39)

€ 2.00

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

1114133200
ref: 6

GASKET

€ 62.00

0421111189
ref: 7

PIN

€ 2.00

0151706258
ref: 8

BOLT

€ 2.50

0915908038
ref: 9

NUT

€ 6.00

0916808009
ref: 10

GASKET (NAS)

€ 4.50

11-1

NOTUSED
ref: 11-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11-2

NOTUSED
ref: 11-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11-3

0948200149
ref: 11-3
E2, E4, E15, E16, E1

SPARK PLUG DR8ES-L

€ 3.50

11-4

0948200223
ref: 11-4
E2, E4, E15, E16, E1

PLUG,SPARK(X24ESR-U)

€ 3.50

1311033200
ref: 12

PIPE, INTAKE

€ 39.00

0913906017
ref: 13

SCREW

€ 1.50

0211206168
ref: 14

SCREW

€ 2.50

0928032006
ref: 15

O RING(D:2.4,ID:31.7)

€ 2.50

0940244305
ref: 16

CLAMP

€ 5.50

0924714012
ref: 17

PLUG (14X12)

€ 3.50

0916814004
ref: 18

GASKET(14X19.2X2) (NAS)

€ 2.50

0924123002
ref: 19

PLUG

€ 8.50
