STARTER CLUTCH

GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

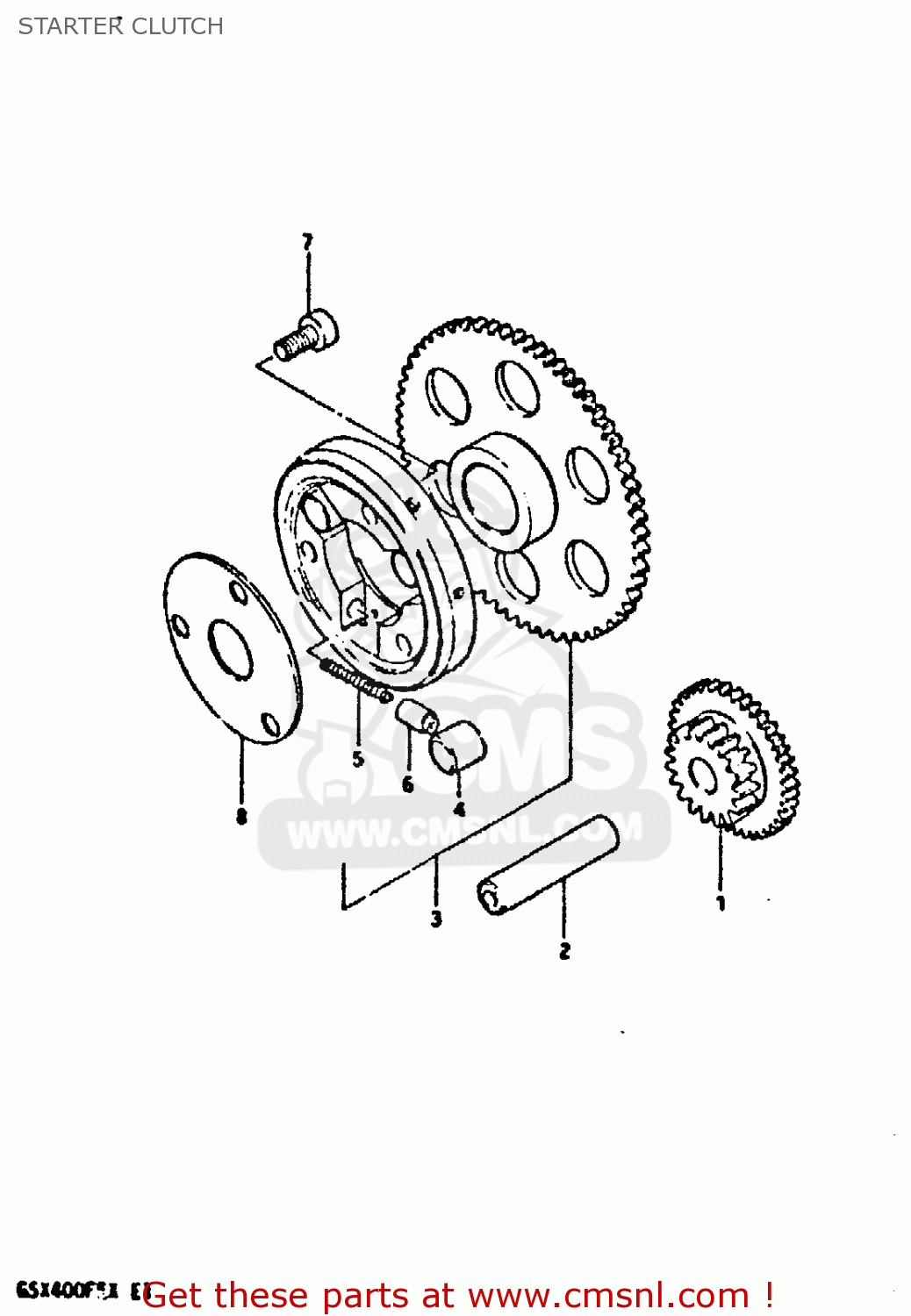

Starter clutch diagram GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

STARTER CLUTCH GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

STARTER CLUTCH GSX400FE 1981 (X) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39

prices are in EUR

ref

part #

description

quantity

1

1261133200
ref: 1

GEAR, STARTER IDLE (NT:47/18)

€ 0.00

2

0920613007
ref: 2

PIN(7.4X13X40)

€ 9.00

3

1260033810
ref: 3

STARTER CLUTCH SET

€ 73.00

4

0926115001
ref: 4

ROLLER(15X13)

€ 3.50

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910608006
ref: 7

BOLT

€ 3.00

8

1264945000
ref: 8

SHIM,STARTER CLUTCH HUB

€ 7.00
