CAM CHAIN

GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

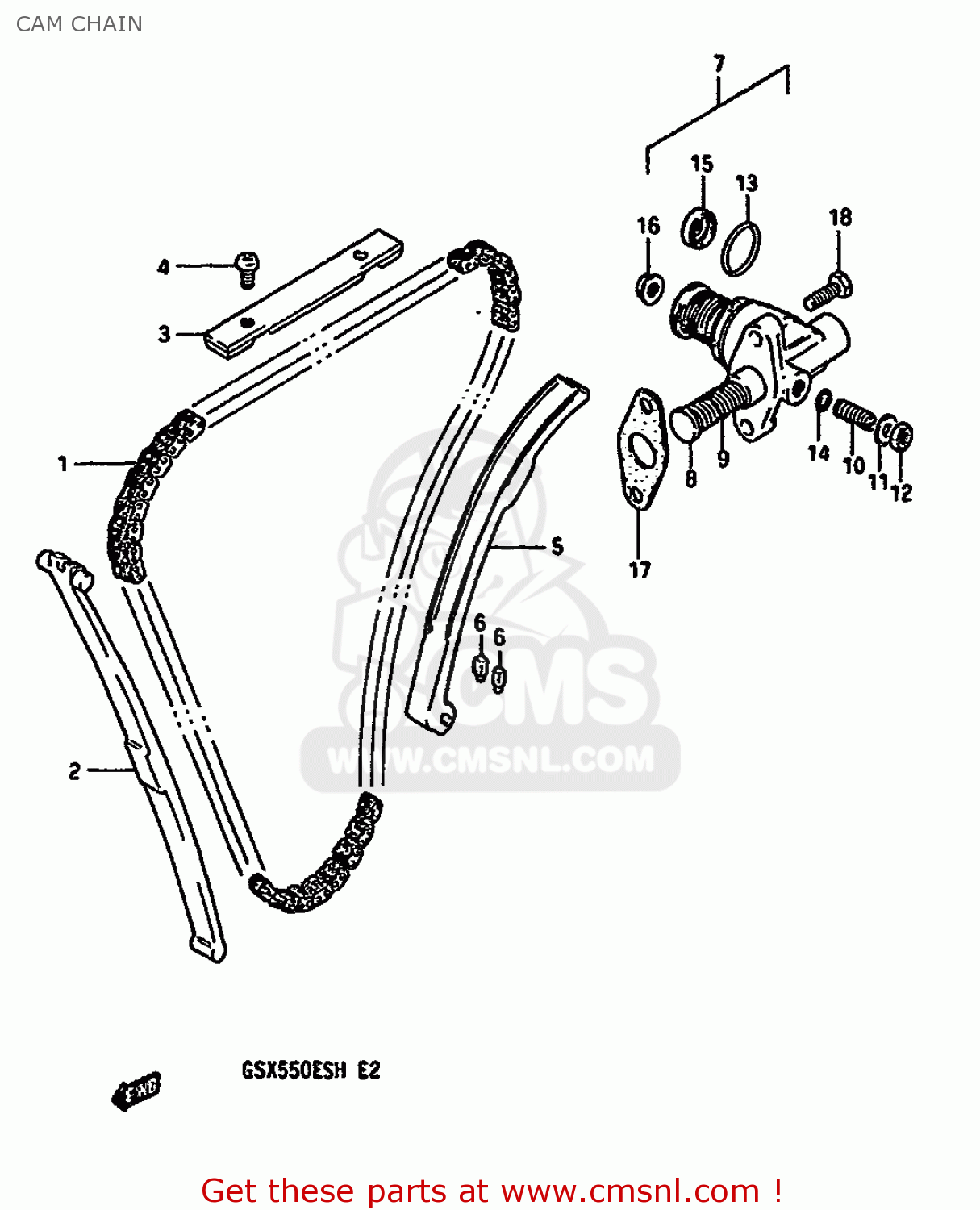

Cam chain diagram GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

CAM CHAIN GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
CAM CHAIN GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
CAM CHAIN GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
prices are in EUR
ref
part #
description
quantity
1
1276043400
ref: 1
CHAIN,CAMSHAFT DRIVE
1276043400
€ 114.00
2
1277143400
ref: 2
GUIDE,CAM CHAIN NO.1
1277143400
€ 29.50
3
1278233200
ref: 3
GUIDE,CAM CHAIN NO.2
€ 37.50
4
0211205107
ref: 4
SCREW
0211205107
€ 2.00
5
1281043400
ref: 5
TENSIONER,CAM CHAIN
1281043400
€ 62.50
6
1281444101
ref: 6
CUSHION,CAM CHAIN TENSIONER
1281444101
€ 8.50
7
1283033302
ref: 7
ADJUSTER ASSY,TENSIONER
1283033302
€ 116.50
8
1283333201
ref: 8
ROD,PUSH
€ 17.00
9
0944012029
ref: 9
SPRING
0944012029
€ 3.50
10
1283845010
ref: 10
SCREW,TENSIONER ADJUST
€ 6.00
11
0832211084
ref: 11
WASHER
0832211084
€ 1.50
12
0831011085
ref: 12
NUT
€ 1.50
13
0928021013
ref: 13
O RING(D:2.4,ID:20.8)
0928021013
€ 4.50
14
0928006005
ref: 14
O RING(D:1.9,ID:5.7)
0928006005
€ 2.50
15
0928410006
ref: 15
SEAL,OIL(10X16X4)
0928410006
€ 4.00
16
0831616064
ref: 16
NUT 6MM
0831616064
€ 2.50
17
1283731310
ref: 17
GASKET,TENSIONER ADJUSTER (MCA)
1283731310
€ 7.50
18
0912806022
ref: 18
SCREW
€ 2.50
