CYLINDER HEAD

GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

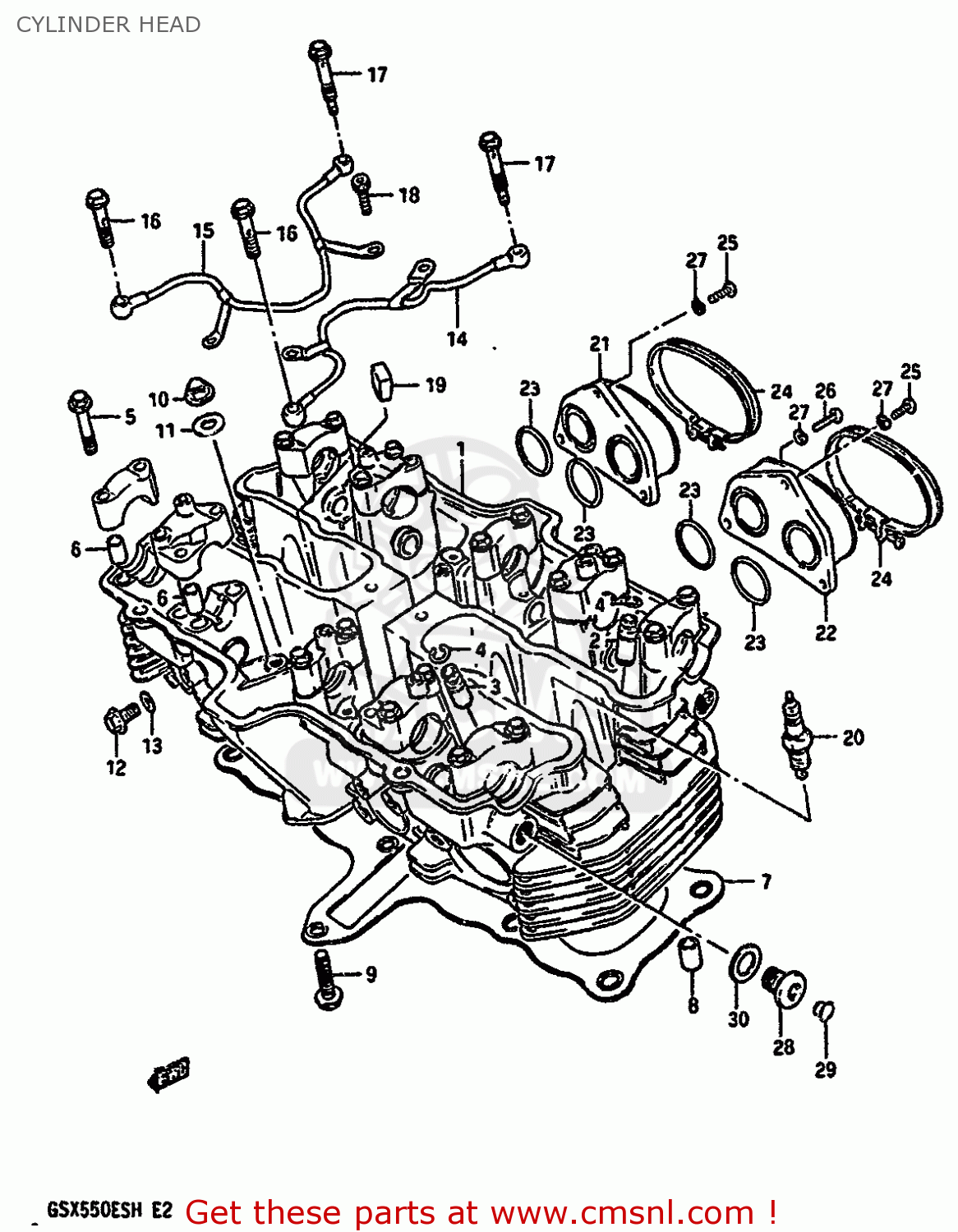

Cylinder head diagram GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

CYLINDER HEAD GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
CYLINDER HEAD GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
CYLINDER HEAD GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
prices are in EUR
ref
part #
description
quantity
1
1110043406
ref: 1
HEAD ASSEMBLY,CYLINDER
€ 1,165.00
2
1111543470
ref: 2
GUIDE,VALVE
1111543470
€ 43.00
3
1111643470
ref: 3
GUIDE,VALVE
1111643470
€ 43.00
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0910306026
ref: 5
BOLT(6X39)
0910306026
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7
1114143403
ref: 7
GASKET,CYLINDER HEAD (NAS)
1114143403
€ 63.50
8
0421111189
ref: 8
PIN
0421111189
€ 2.00
9
0151706254
ref: 9
BOLT
€ 2.50
10
0915908047
ref: 10
NUT
€ 7.00
11
0916808013
ref: 11
GASKET(8.5X20X2.3) (NAS)
0916808013
€ 4.50
12
0151706105
ref: 12
BOLT
€ 2.50
13
0916806018
ref: 13
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
14
1296143403
ref: 14
PIPE,OIL CYLINDER HEAD
€ 26.50
15
1296243403
ref: 15
PIPE,OIL CYLINDER HEAD
€ 24.50
16
0936006013
ref: 16
UNION
0936006013
€ 7.00
17
1296543400
ref: 17
BOLT,UNION
1296543400
€ 21.00
18
0711006168
ref: 18
BOLT, 6X16
€ 3.00
19
1125225000
ref: 19
PAD,CYLINDER
1125225000
€ 5.00
20-1
0948200184
ref: 20-1
SPARK PLUG D9EA
€ 6.50
20-2
0948200185
ref: 20-2
SPARK PLUG X27ES-U
€ 0.00
20-3
0948200221
ref: 20-3
E2,E4,E6,E17,E18,E21
PLUG,SPARK(DR8ES)
0948200221
€ 5.50
20-4
0948200224
ref: 20-4
E2,E4,E6,E17,E18,E21
PLUG,SPARK(X27ESR-U)
0948200224
€ 9.50
21
1311043400
ref: 21
PIPE,INTAKE,R
1311043400
€ 53.50
22
1312043400
ref: 22
PIPE,INTAKE,L
1312043400
€ 52.50
23
0928030004
ref: 23
O-RING (D:2.4 ID:29.7)
0928030004
€ 10.50
24
0940248401
ref: 24
CLAMP
€ 6.50
25
0211206164
ref: 25
SCREW
€ 2.00
26
0211206205
ref: 26
SCREW
€ 2.00
27
0832121064
ref: 27
WASHER,LOCK
0832121064
€ 2.00
28
0924814004
ref: 28
PLUG
0924814004
€ 5.00
29
0925008012
ref: 29
CAP(OD:12)
0925008012
€ 2.00
30
0916814004
ref: 30
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
