FUEL TANK (GSX550ESF/ESG)

GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

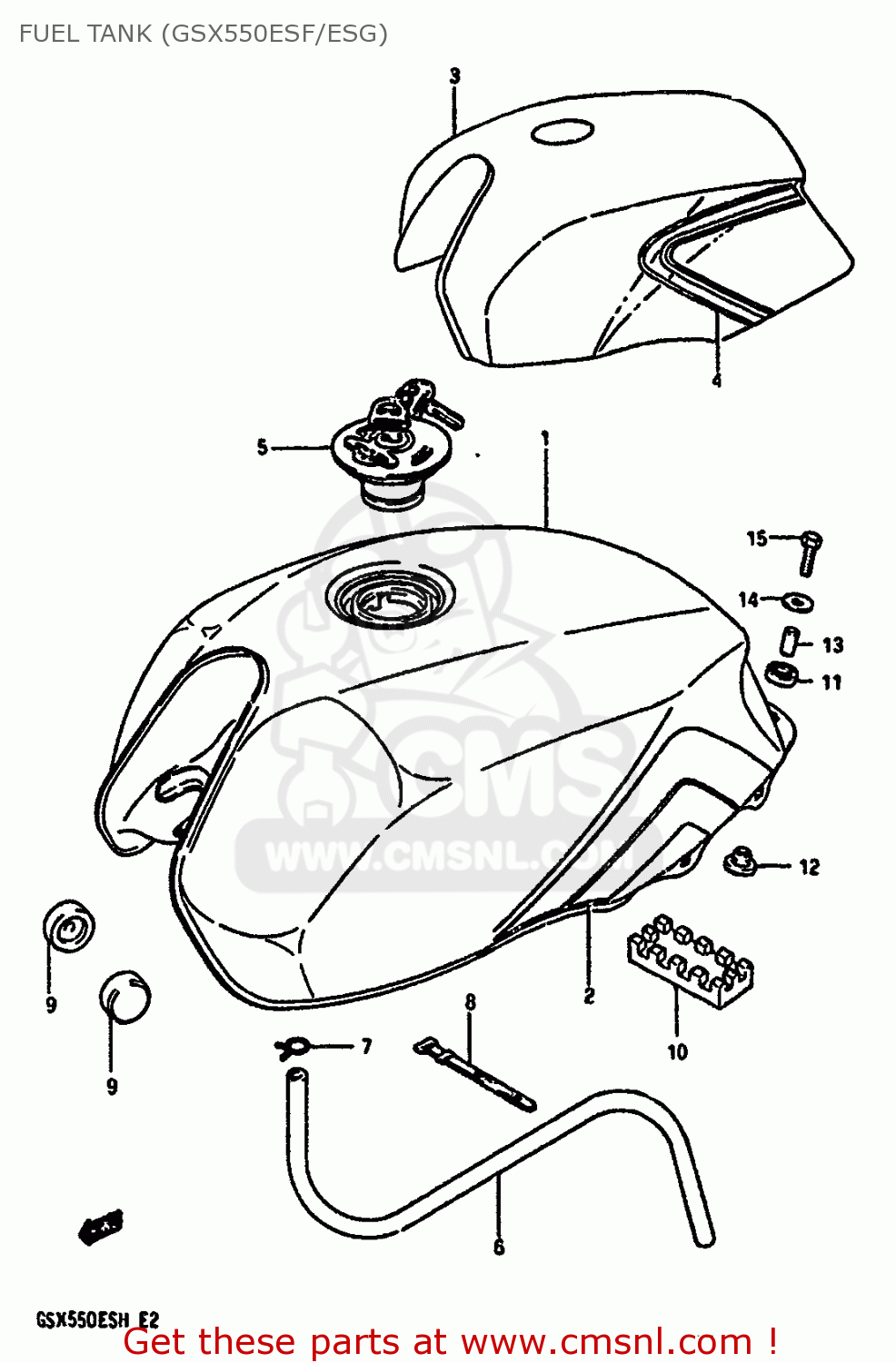

Fuel tank (gsx550esf/esg) diagram GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

FUEL TANK (GSX550ESF/ESG) GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
FUEL TANK (GSX550ESF/ESG) GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
FUEL TANK (GSX550ESF/ESG) GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
prices are in EUR
ref
part #
description
quantity
1-1
49100434507JH
ref: 1-1
MODEL F
TANK ASSEMBLY,FUEL
€ 582.00
1-2
49100434907JH
ref: 1-2
MODEL F E22
TANK ASSY,FUEL
€ 0.00
1-3
49100434507JJ
ref: 1-3
MODEL F
TANK ASSY, FUEL
€ 582.00
1-4
49100434907JJ
ref: 1-4
MODEL F E22
TANK ASSY,FUEL
€ 0.00
2-1
68110434507JM
ref: 2-1
MODEL F,FOR 7JH
TAPE SET,FUEL TANK
68110434507JM
€ 40.00
2-2
68110434507JK
ref: 2-2
MODEL F,FOR 7JJ
TAPE SET, FUEL TANK
€ 0.00
3-1
44100436307JH
ref: 3-1
MODEL G
TANK ASSY,FUEL
€ 582.00
3-2
44100436407JH
ref: 3-2
MODEL G E22
TANK ASSY,FUEL
€ 331.50
3-3
44100436307JK
ref: 3-3
MODEL G
TANK ASSY,FUEL
€ 582.00
3-4
44100436407JK
ref: 3-4
MODEL G E22
TANK,FUEL
€ 582.00
4-1
68110434807JF
ref: 4-1
MODEL G,FOR 7JH
TAPE SET,FUEL TANK
€ 0.00
4-2
68110434808BE
ref: 4-2
MODEL G,FOR 7JK
TAPE SET,FUEL TANK
€ 43.50
5
4420043410KEY
ref: 5
CAP ASSY,FUEL TANK
4420043410KEY
€ 125.50
6
0934305165
ref: 6
HOSE,FUEL
0934305165
€ 13.00
7
0940108402
ref: 7
CLIP
0940108402
€ 1.50
8
0940718401
ref: 8
CLAMP(L:187)
0940718401
€ 2.00
9
0932910007
ref: 9
CUSHION
0932910007
€ 3.00
10
4454143400
ref: 10
CUSHION,FUEL TANK
4454143400
€ 7.50
11
0932014013
ref: 11
CUSHION
0932014013
€ 3.00
12
0932010020
ref: 12
CUSHION
0932010020
€ 4.00
13
0918006107
ref: 13
SPACER (6.4X9X20)
0918006107
€ 3.00
14
0916006072
ref: 14
WASHER (6.5X24X1.6)
0916006072
€ 2.00
15
0110706306
ref: 15
BOLT
0110706306
€ 2.50
