GEAR SHIFTING

GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

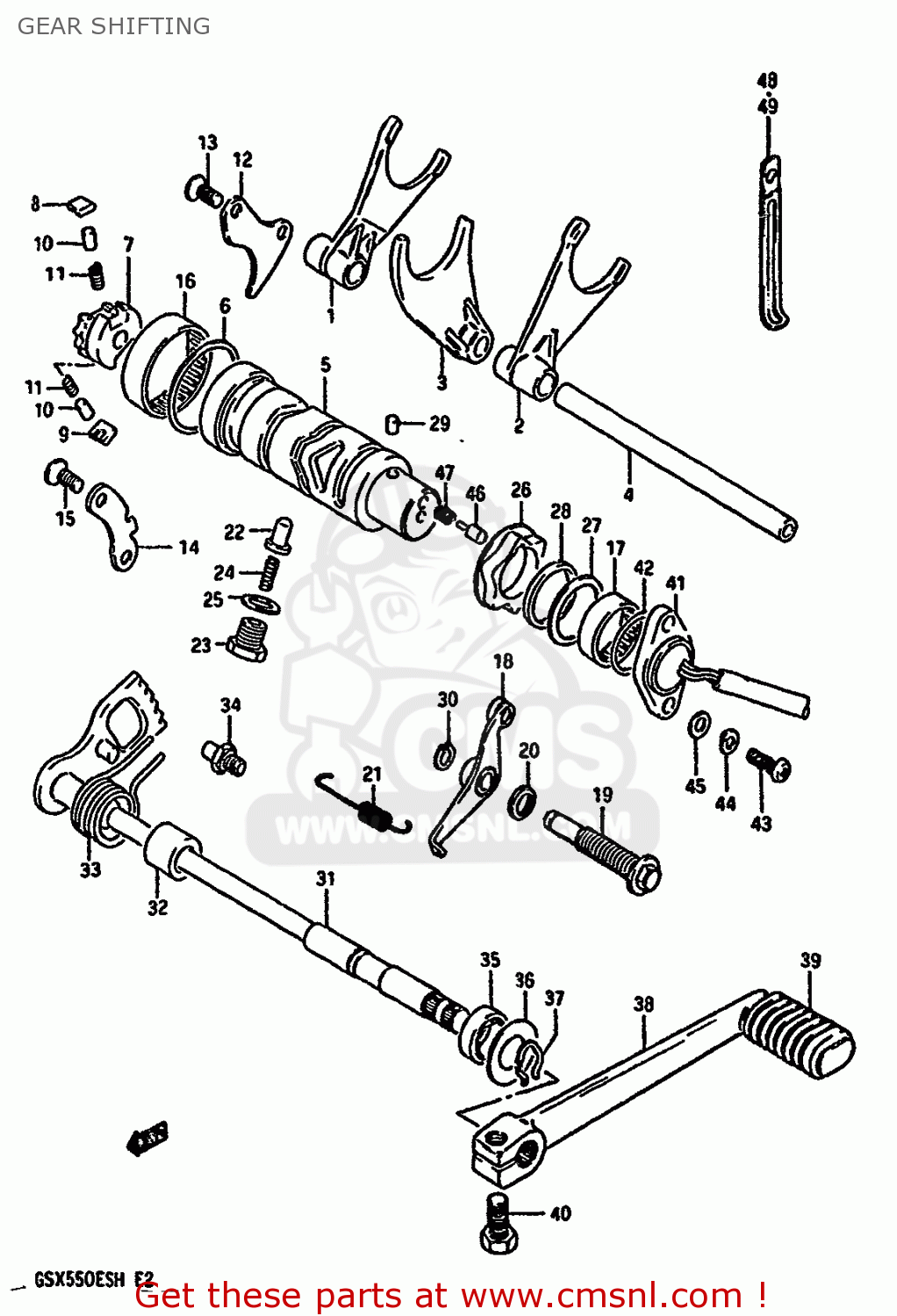

Gear shifting diagram GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

GEAR SHIFTING GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
GEAR SHIFTING GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
GEAR SHIFTING GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
prices are in EUR
ref
part #
description
quantity
1
2521143400
ref: 1
FORK,GEAR SHIFT NO.1
2521143400
€ 35.50
2
2522143400
ref: 2
FORK,GEAR SHIFT NO.2
2522143400
€ 65.50
3
2523143400
ref: 3
FORK,GEAR SHIFT NO.3
2523143400
€ 22.00
4
2541115501
ref: 4
SHAFT,GEAR SHIFT FORK
2541115501
€ 16.50
5
2531043400
ref: 5
CAM,GEAR SHIFT
€ 122.50
6
0916040006
ref: 6
WASHER (40X49X1)
0916040006
€ 1.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
8
2532334200
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434200
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
0926105003
€ 1.50
11
0944004003
ref: 11
SPRING
0944004003
€ 1.50
12
2533115501
ref: 12
LIFTER,GEAR SHIFT PAWL
€ 3.00
13
0212206128
ref: 13
SCREW
0212206128
€ 3.00
14
2534143400
ref: 14
GUIDE,GEAR SHIFT CAM
€ 4.50
15
0212206128
ref: 15
SCREW
0212206128
€ 3.00
16
0926343001
ref: 16
BEARING(43X49X12)
0926343001
€ 30.00
17
0926325018
ref: 17
BEARING(25X32X12)
0926325018
€ 17.50
18
2535043400
ref: 18
STOPPER,GEAR SHIFTING
2535043400
€ 11.50
19
2535343400
ref: 19
HOLDER,SHIFTING CAM STOPPER
€ 0.00
20
0916810002
ref: 20
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
21
0944308032
ref: 21
SPRING
€ 2.50
22
2535131302
ref: 22
STOPPER,GEAR SHIFTING
€ 6.50
23
2535430000
ref: 23
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
24
0944006027
ref: 24
SPRING
€ 3.00
25
0916814004
ref: 25
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
26
2538104700
ref: 26
PLATE,GEAR SHIFT CAM STOPPER
2538104700
€ 13.00
27
0821125321
ref: 27
WASHER
0821125321
€ 3.00
28
0821225305
ref: 28
WASHER
€ 0.00
29
0621104063
ref: 29
PIN 4X6
0621104063
€ 2.00
30
0833131086
ref: 30
CIRCLIP
0833131086
€ 2.00
31
2551043400
ref: 31
SHAFT,GEAR SHIFT
€ 66.50
32
0918012068
ref: 32
SPACER(12X20X15.3)
0918012068
€ 3.00
33
0944426013
ref: 33
SPRING
0944426013
€ 3.50
34
2567101000
ref: 34
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
35
0928512002
ref: 35
OIL SEAL
0928512002
€ 7.00
36
0916012020
ref: 36
WASHER (12.5X27X1.6)
0916012020
€ 2.00
37
0938412001
ref: 37
SPRING,RETAINER
0938412001
€ 2.00
38
2560043402
ref: 38
LEVER ASSEMBLY,GEAR SHIFTING
2560043402
€ 52.50
39
2565249300
ref: 39
RUBBER,PEDAL
2565249300
€ 5.50
40
0110708208
ref: 40
BOLT
0110708208
€ 3.00
41
3772043400
ref: 41
TERMINAL BASE ASSY,GEAR SHIFT
3772043400
€ 59.00
42
0928026003
ref: 42
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
43
0912505102
ref: 43
SCREW(5X14)
0912505102
€ 2.50
44
0832121057
ref: 44
LOCK WASHER
0832121057
€ 2.00
45
0832221057
ref: 45
WASHER
0832221057
€ 2.50
46
0920905011
ref: 46
PIN(5X15.5)
0920905011
€ 2.00
47
0944004010
ref: 47
SPRING
0944004010
€ 1.50
48
0940406401
ref: 48
CLAMP L:35
0940406401
€ 2.50
49
0940406404
ref: 49
CLAMP
0940406404
€ 3.00
