CRANKCASE COVER

GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

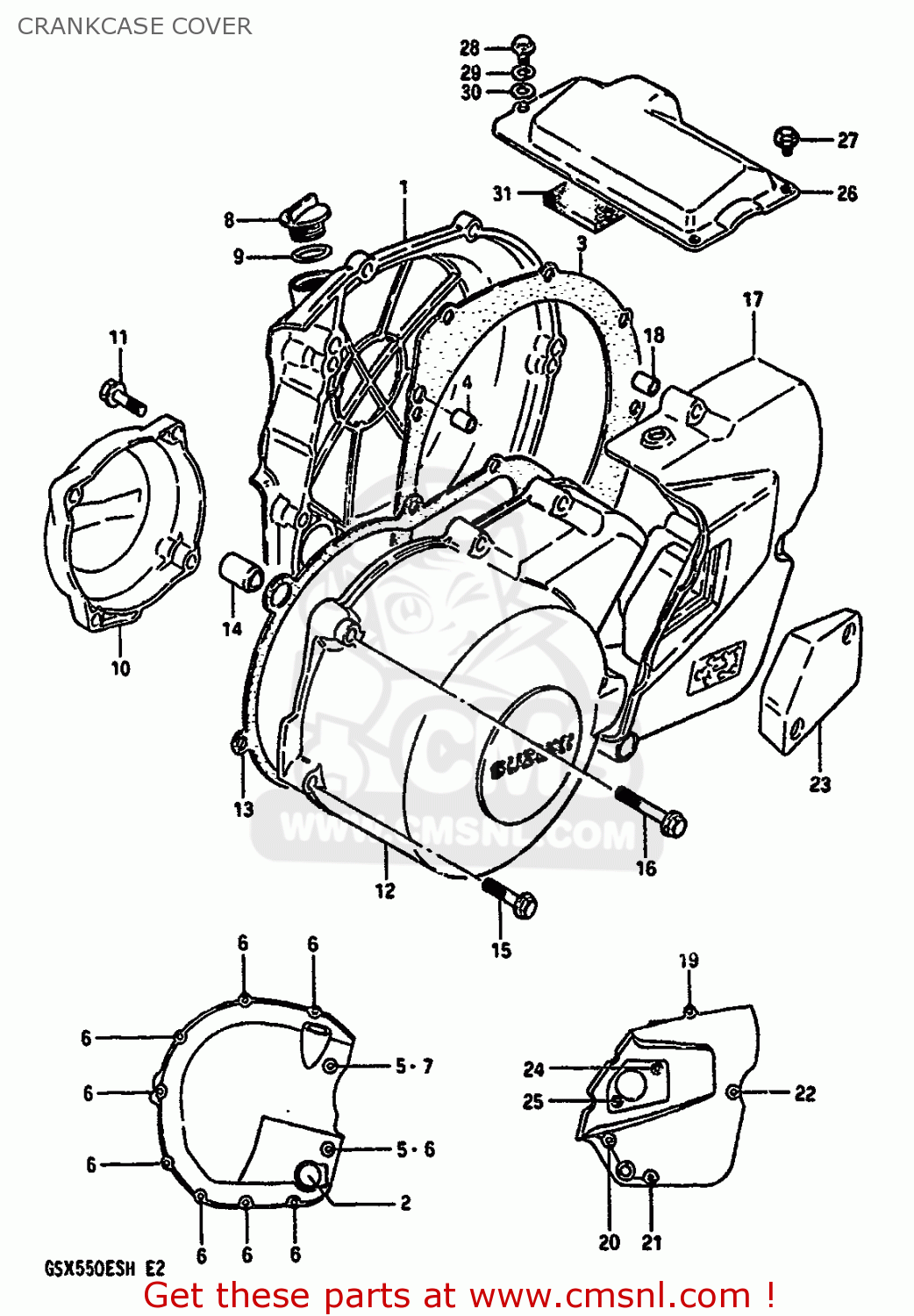

Crankcase cover diagram GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

CRANKCASE COVER GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
CRANKCASE COVER GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
CRANKCASE COVER GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
prices are in EUR
ref
part #
description
quantity
1
1134043401
ref: 1
COVER,CLUTCH
€ 176.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148243401
ref: 3
GASKET,CLUTCH COVER (MCA)
1148243401
€ 16.50
4
0421109129
ref: 4
PIN
0421109129
€ 2.00
5
0916806023
ref: 5
FROM 09168-06015
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
6
0154706254
ref: 6
BOLT 6X25
0154706254
€ 2.50
7
0154706354
ref: 7
BOLT 6X35
0154706354
€ 3.00
8
0925920008
ref: 8
PLUG
0925920008
€ 6.50
9
0928017003
ref: 9
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
10
1138143400
ref: 10
COVER,CONTACT BREAKER
1138143400
€ 56.50
11
0154706254
ref: 11
BOLT 6X25
0154706254
€ 2.50
12
1135143400
ref: 12
COVER,MAGNETO
1135143400
€ 173.00
13
1148343400
ref: 13
GASKET,MAGNETO COVER (MCA)
1148343400
€ 15.50
14
0920611005
ref: 14
PIN (11X20)(SUS)
€ 6.50
15
0154706304
ref: 15
BOLT 6X30
0154706304
€ 2.50
16
0154706454
ref: 16
BOLT
0154706454
€ 3.00
17
1136043400
ref: 17
COVER,ENGINE SPROCKET
1136043400
€ 79.00
18
0421109129
ref: 18
PIN
0421109129
€ 2.00
19
0154706404
ref: 19
BOLT 6X40
€ 3.00
20
0154706555
ref: 20
BOLT (6X55)
€ 3.00
21
0154706505
ref: 21
BOLT 6X50
0154706505
€ 3.50
22
0154706805
ref: 22
BOLT 6X80
€ 3.50
23
1138743400
ref: 23
CAP,CLUTCH RELEASE ADJUST
€ 26.00
24
0213205124
ref: 24
SCREW
€ 2.00
25
0213205205
ref: 25
SCREW
0213205205
€ 2.00
26
1138243401
ref: 26
COVER,STARTER MOTOR
1138243401
€ 20.00
27
0154705084
ref: 27
BOLT
0154705084
€ 2.50
28
0154705125
ref: 28
BOLT
€ 2.00
29
0832121055
ref: 29
WASHER,LOCK
0832121055
€ 3.00
30
0916005031
ref: 30
WASHER
€ 1.50
31
1136234200
ref: 31
DAMPER,STARTER MOTOR CLUTCH
€ 5.50
