COWLING (GSX550EFG)

GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

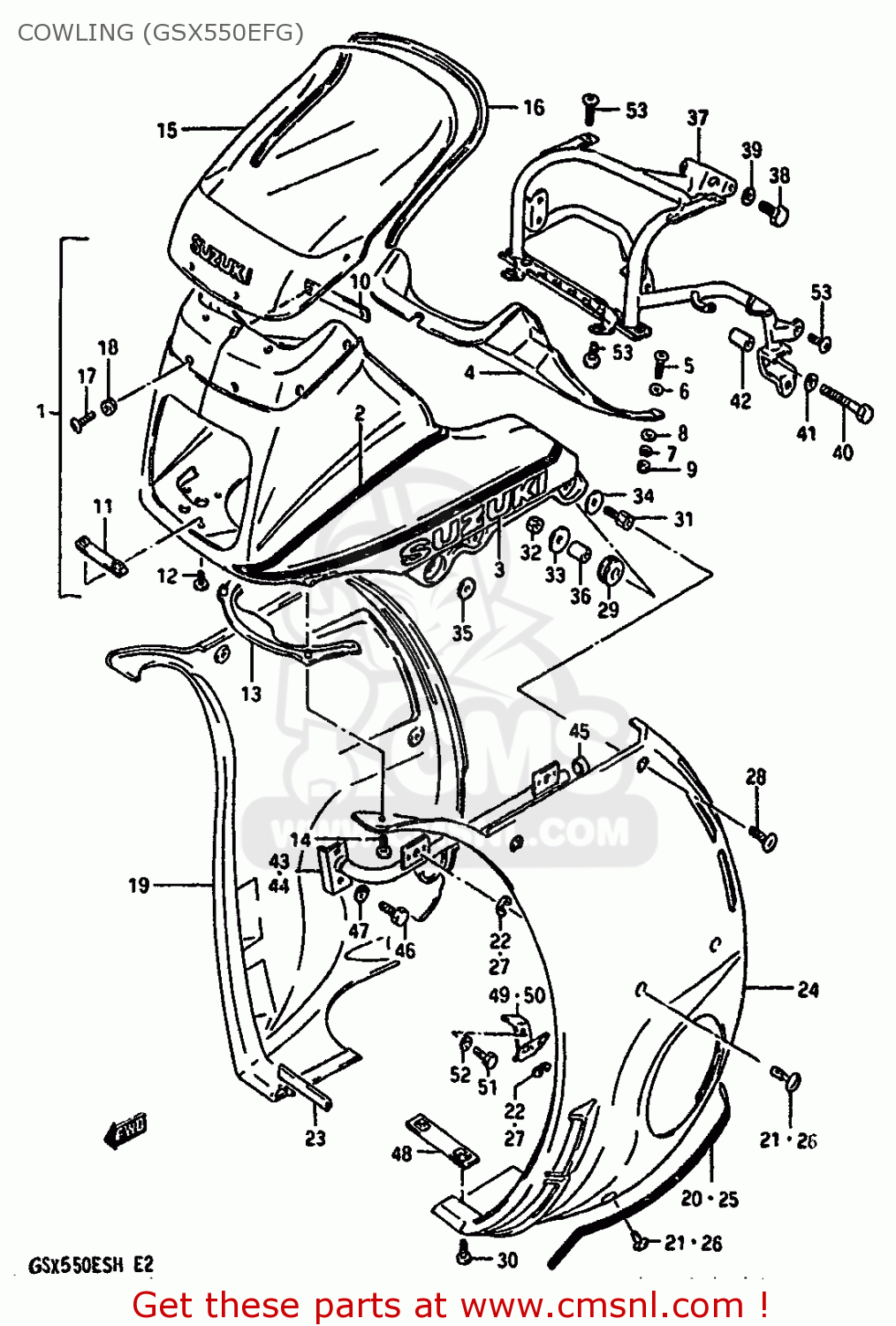

Cowling (gsx550efg) diagram GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

COWLING (GSX550EFG) GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
COWLING (GSX550EFG) GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
COWLING (GSX550EFG) GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
prices are in EUR
ref
part #
description
quantity
1-1
94700434808BN
ref: 1-1
COWLING ASSY (WHITE/BLUE)
€ 960.50
1-2
94700434807JK
ref: 1-2
COWLING ASSY (BLACK/RED)
€ 960.50
2-1
68190434508BN
ref: 2-1
FOR 8BN
TAPE SET
€ 64.00
2-2
68190434507JK
ref: 2-2
FOR 7JK
TAPE SET
€ 73.00
3-1
681114440007G
ref: 3-1
FOR 8BN
EMBLEM,FUEL TANK
€ 8.50
3-2
681114440022R
ref: 3-2
FOR 7JK
EMBLEM,COWLING
€ 13.50
4
9442243400
ref: 4
PANEL,COWLING,UPPER
€ 16.50
5
0214205165
ref: 5
SCREW
0214205165
€ 2.50
6
0832221055
ref: 6
WASHER,5MM
0832221055
€ 2.50
7
0832121055
ref: 7
WASHER,LOCK
0832121055
€ 3.00
8
0832221055
ref: 8
WASHER,5MM
0832221055
€ 2.50
9
0831012055
ref: 9
NUT ,5MM
0831012055
€ 2.50
10
9441643400
ref: 10
BRACKET,COWLING,UPPER
€ 3.50
11
9442043400
ref: 11
BRACKET,COWLING,LOWER
€ 2.50
12
0214205128
ref: 12
SCREW
0214205128
€ 1.50
13
9448043410
ref: 13
COVER,COWLING,LOWER
9448043410
€ 19.00
14
0214205165
ref: 14
SCREW
0214205165
€ 2.50
15-1
9461143421
ref: 15-1
WINDOW
9461143421
€ 281.50
15-2
9461143431
ref: 15-2
E17
WINDOW,COWLING
€ 281.50
16-1
9463143400
ref: 16-1
MOLDING,LOWER
9463143400
€ 18.00
16-2
9463143410
ref: 16-2
E17
MOULDING
€ 14.00
17
0214205165
ref: 17
SCREW
0214205165
€ 2.50
18
0932005008
ref: 18
CUSHION
0932005008
€ 5.00
19-1
94450434208BN
ref: 19-1
FOR 8BN
COVER,COWLING
€ 148.00
19-2
94450434207JK
ref: 19-2
FOR 7JK
COVER,COWLING
€ 148.00
20-1
68680434608BN
ref: 20-1
FOR 8BN
TAPE SET
€ 13.50
20-2
68680434607JK
ref: 20-2
FOR 7JK
TAPE SET
€ 13.50
21
9449143400
ref: 21
FASTENER,COWL SIDE COVER
9449143400
€ 8.00
22
0833211075
ref: 22
E-RING
€ 2.00
23
9463143450
ref: 23
MOLDING,LOWER
€ 3.50
24-1
94460434208BN
ref: 24-1
FOR 8BN
COVER,LH (WHITE/BLUE)
€ 175.50
24-2
94460434207JK
ref: 24-2
FOR 7JK
COVER,LH (BLACK/RED)
€ 175.50
25-1
68690434608BN
ref: 25-1
FOR 8BN
TAPE SET
€ 13.50
25-2
68690434607JK
ref: 25-2
FOR 7JK
TAPE SET
€ 0.00
26
9449143400
ref: 26
FASTENER,COWL SIDE COVER
9449143400
€ 8.00
27
0833211075
ref: 27
E-RING
€ 2.00
28
9443943400
ref: 28
SCREW,COWLING SIDE COVER
9443943400
€ 3.50
29
0932008018
ref: 29
CUSHION
0932008018
€ 4.00
30
0214206127
ref: 30
SCREW 6X12
0214206127
€ 1.50
31
9447543400
ref: 31
BOSS,COWLING BODY,SIDE
9447543400
€ 8.50
32
0831011065
ref: 32
NUT
€ 2.00
33
0916006004
ref: 33
WASHER (6.5X24X1.6)
0916006004
€ 1.50
34
0916006081
ref: 34
WASHER, QUTER, REAR
€ 2.00
35
0916006028
ref: 35
WASHER(6.5X18X1)
0916006028
€ 1.50
36
0918006027
ref: 36
SPACER (6.3X9.1X6.7)
0918006027
€ 3.00
37
9451043400
ref: 37
BRACE,COWLING
9451043400
€ 112.50
38
0110708165
ref: 38
BOLT
€ 2.00
39
0832121084
ref: 39
WASHER,LOCK,8.
0832121084
€ 2.50
40
0110708455
ref: 40
BOLT
€ 2.50
41
0832121084
ref: 41
WASHER,LOCK,8.
0832121084
€ 2.50
42
0918008057
ref: 42
SPACER (8.2X12.5X23.5)
0918008057
€ 2.00
43
9452043400
ref: 43
BRACE,COWLING SIDE,RIGHT
9452043400
€ 33.50
44
9456043400
ref: 44
BRACE,COWLING SIDE,LEFT
9456043400
€ 33.50
45
0932912004
ref: 45
CUSHION
0932912004
€ 1.50
46
0110706125
ref: 46
BOLT
€ 2.00
47
0832121064
ref: 47
WASHER,LOCK
0832121064
€ 2.00
48
9457043400
ref: 48
BRACE,COWLING,LOWER,FRONT
9457043400
€ 3.50
49
9458043400
ref: 49
BRACKET,COWLING SIDE,RIGHT
9458043400
€ 7.00
50
9459043400
ref: 50
BRACKET,COWLING SIDE,LEFT
9459043400
€ 7.50
51
0110706125
ref: 51
BOLT
€ 2.00
52
0832121064
ref: 52
WASHER,LOCK
0832121064
€ 2.00
53
0214206125
ref: 53
SCREW 6X12
0214206125
€ 2.00
