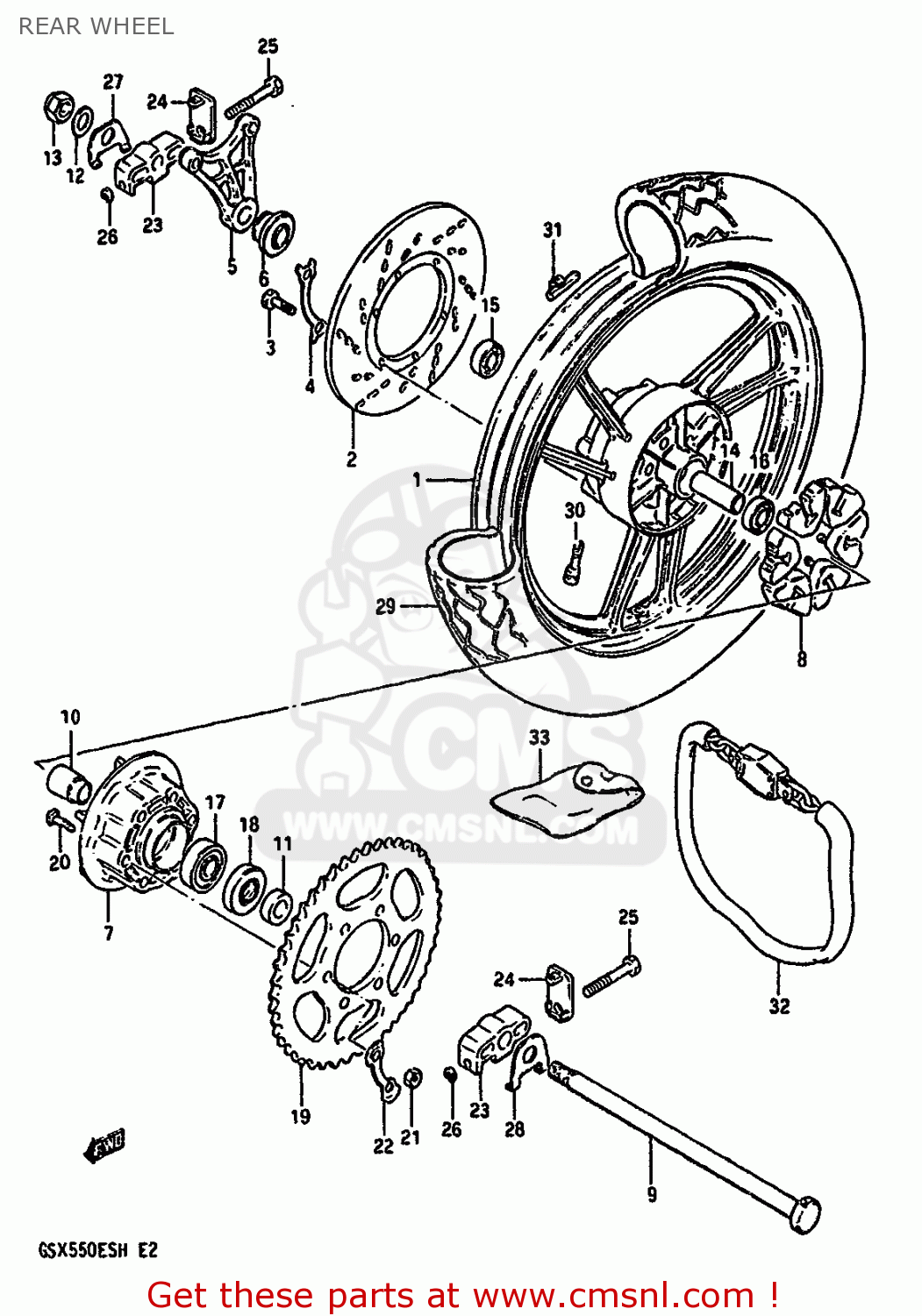

REAR WHEEL

ref

part #

description

quantity

1-1

641113340119T
ref: 1-1
MODEL F

WHEEL,REAR

€ 563.00

1-2

6411133401291
ref: 1-2
MODEL G/H

WHEEL,REAR (MT2.15X18)

€ 563.00

2

6921133250
ref: 2

DISC,REAR BRAKE

€ 204.50

3

0910008140
ref: 3

BOLT(8X25)

€ 2.00

4

0916908028
ref: 4

WASHER

€ 2.00

5

6972143400
ref: 5

BRACKET,RR,CALIPER

€ 51.50

6

6474033201
ref: 6

SPACER,REAR AXLE,RIGHT

€ 13.50

7

6461133200
ref: 7

DRUM,REAR SPROCKET MOUNT

€ 78.50

8

6465111300
ref: 8

ABSORBER,RR HUB SHOCK

€ 12.50

9

6471143400
ref: 9

AXLE,REAR

€ 58.50

10

6473334000
ref: 10

SPACER,REAR HUB BEARING

€ 24.00

11

0918017075
ref: 11

SPACER (17X30.5X13.5)

€ 5.50

12

0832211168
ref: 12

WASHER

€ 2.00

13

0915916002
ref: 13

NUT

€ 5.00

14

0918017072
ref: 14

SPACER(17.5X25X81)

€ 13.50

15

0814363037
ref: 15

BEARING

€ 23.00

16

0814362037
ref: 16

BEARING

€ 18.50

17

0811362057
ref: 17

BEARING

€ 18.00

18

0928530001
ref: 18

SEAL,OIL(30.5X52X8)

€ 20.00

19

6451143500
ref: 19

SPROCKET, REAR (NT:46)

€ 39.00

20

0910510001
ref: 20

BOLT(10X35.5)

€ 3.50

21

0914010026
ref: 21

NUT

€ 2.00

22

0916910007
ref: 22

WASHER

€ 7.50

23

6141115500
ref: 23

BODY,CHAIN ADJUSTER

€ 23.50

24

6142115500
ref: 24

PLATE,CHAIN ADJUSTER

€ 107.00

25

6143116700
ref: 25

BOLT,CHAIN ADJUSTER

€ 4.50

26

0833211046
ref: 26

E RING

€ 2.00

27

6471343400
ref: 27

WASHER,CHAIN ADJUSTER RH

€ 3.50

28

6471243401
ref: 28

WASHER,CHAIN ADJUSTER

€ 3.00

29

6510043450
ref: 29
DUNLOP

TIRE

€ 0.00

30

4313075150
ref: 30

VALVE,TIRE

€ 14.50

31-1

5541100A0019T
ref: 31-1
MODEL F

BALANCER,WHEEL

€ 6.50

31-2

5541200A0019T
ref: 31-2
MODEL F

BALANCER,WHEEL

€ 7.00

31-3

5541300A0019T
ref: 31-3
MODEL F

BALANCER,WHEEL

€ 4.00

31-4

5541100A00291
ref: 31-4
MODEL G

BALANCER,WHEEL

€ 6.50

31-5

5541200A00291
ref: 31-5
MODEL G

BALANCER,WHEEL

€ 7.00

31-6

5541300A00291
ref: 31-6
MODEL G

BALANCER,WHEEL

€ 4.00

31-7

5541100A00
ref: 31-7
MODEL H

BALANCER,WHEEL (10G)

€ 6.50

31-8

5541200A00
ref: 31-8
MODEL H

BALANCER,WHEEL

€ 7.00

31-9

5541300A00
ref: 31-9
MODEL H

BALANCER,WHEEL

€ 4.00

32

9414015501KEY
ref: 32

CHAIN LOCK ASSY

€ 53.50

33

9414131301
ref: 33

BAG,CHAIN LOCK

€ 0.00
