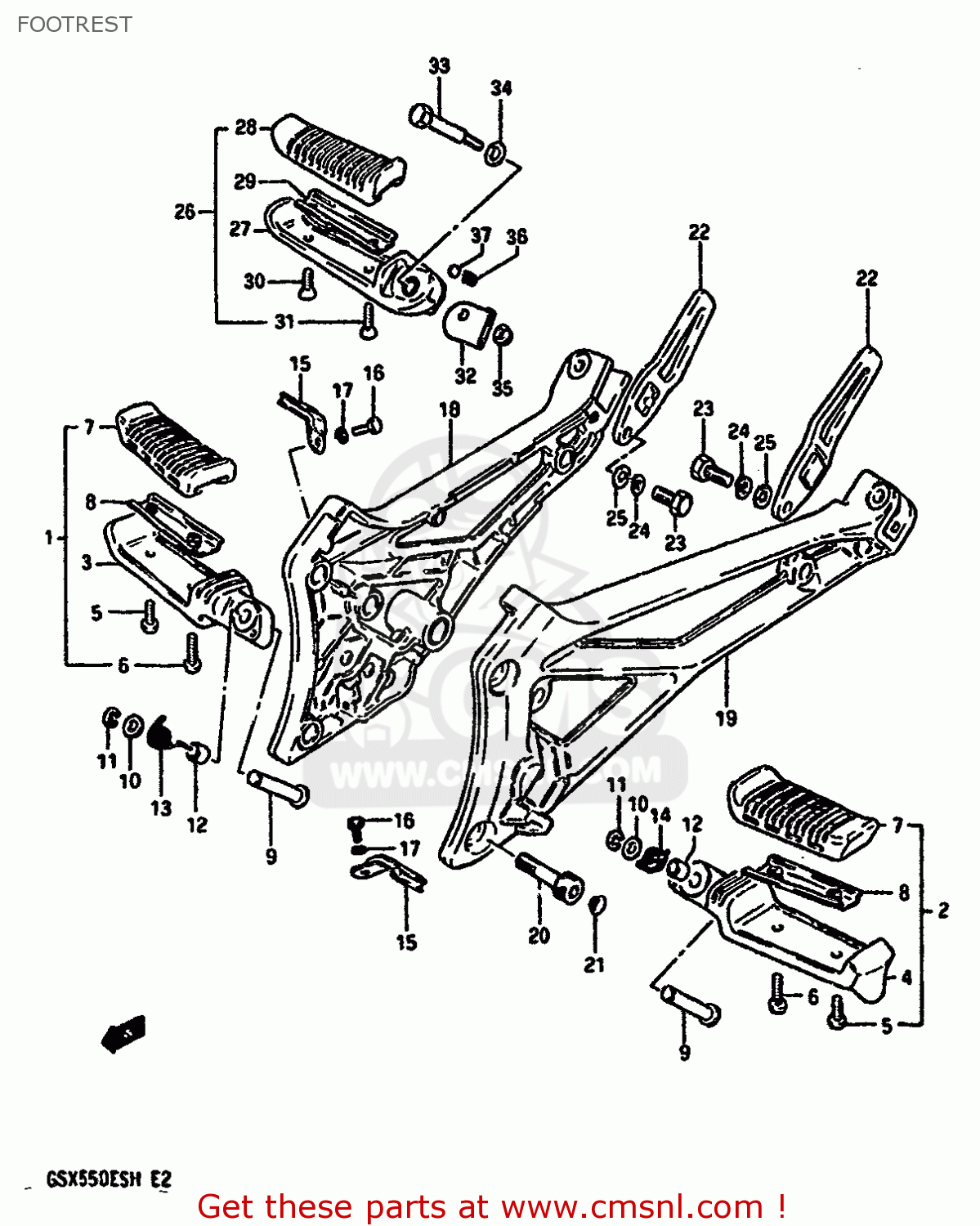

FOOTREST

ref

part #

description

quantity

1

4350143400
ref: 1

FOOTREST ASSEMBLY,FRONT,RIGHT

€ 69.00

2

4350243400
ref: 2

FOOTREST ASSEMBLY,FRONT,LEFT

€ 26.00

3

4351043400
ref: 3

BAR,FRONT FOOTREST

€ 69.00

4

4352043400
ref: 4

FOOTREST,FRONT,LEFT

€ 26.00

5

0211205128
ref: 5

SCREW

€ 2.50

6

0211205168
ref: 6

SCREW

€ 2.50

7

4355131300
ref: 7

RUBBER,FOOTREST

€ 15.50

8

4358033301
ref: 8

PLATE,FR FOOTREST RUBBER

€ 4.50

9

0920808005
ref: 9

PIN

€ 3.00

10

0821108141
ref: 10

WASHER

€ 1.50

11

0833211068
ref: 11

E RING 6MM

€ 2.00

12

0930608013
ref: 12

BUSHING

€ 3.50

13

0944814030
ref: 13

SPRING

€ 3.50

14

0944814031
ref: 14

SPRING

€ 3.00

15

4357043400
ref: 15

CUSHION,FR FOOTREST

€ 8.50

16

0110705108
ref: 16

BOLT 5X10

€ 1.50

17

0832121057
ref: 17

LOCK WASHER

€ 2.00

18

4381043403
ref: 18

BRACKET,MUFFLER,RIGHT

€ 119.50

19

4382043403
ref: 19

BRACKET,MUFFLER,LEFT

€ 110.00

20

0910610017
ref: 20

BOLT 10X27

€ 2.50

21

4357534500
ref: 21

CAP

€ 1.50

22

4367131300
ref: 22

GUIDE,REAR FOOT

€ 27.50

23

0110708167
ref: 23

BOLT,8X16

€ 2.00

24

0832121088
ref: 24

LOCK WASHER

€ 2.00

25

0832211088
ref: 25

WASHER

€ 2.00

26-1

4360031300
ref: 26-1

FOOTREST ASSY,PILLION,R

€ 39.50

26-2

4370031300
ref: 26-2

FOOTREST ASSEMBLY,PILLION

€ 27.50

27-1

4361045501
ref: 27-1

BAR,PILLION FOOTREST,RIGHT

€ 17.00

27-2

4371045501
ref: 27-2

BAR,PILLION FOOTREST,LEFT

€ 16.00

28

4361231300
ref: 28

RUBBER,RR FOOTREST

€ 8.00

29

4363245501
ref: 29

PLATE,RUBBER STOPPER

€ 2.50

30

0213205127
ref: 30

SCREW 5X12

€ 2.50

31

0213205167
ref: 31

SCREW 5X16

€ 2.00

32-1

4363543400
ref: 32-1

PLATE,SPRING STOP,R

€ 2.00

32-2

4373543400
ref: 32-2

PLATE,SPRING STOP,LEFT

€ 4.50

33

0911106035
ref: 33

BOLT

€ 4.50

34

0832211088
ref: 34

WASHER

€ 2.00

35

0831931067
ref: 35

NUT

€ 2.50

36

0944005028
ref: 36

SPRING

€ 2.50

37

0611108003
ref: 37

BALL

€ 1.50

all assemblies
