FRAME

GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

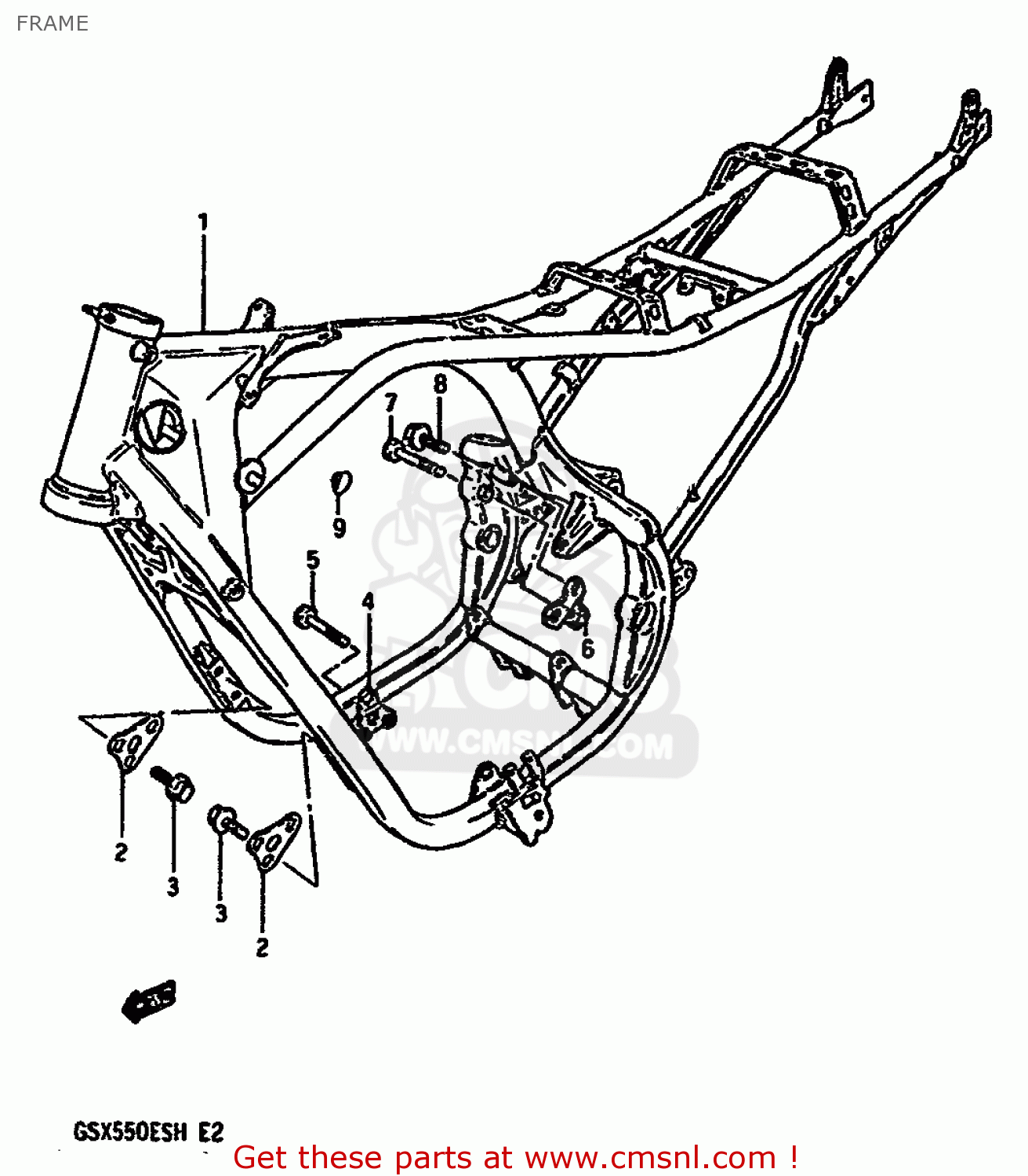

Frame diagram GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

FRAME GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
FRAME GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
FRAME GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
prices are in EUR
ref
part #
description
quantity
1-1
411004345013L
ref: 1-1
MODEL F
FRAME
€ 1,346.50
1-2
411004345113L
ref: 1-2
MODEL G/H
FRAME
€ 0.00
1-3
411004346013L
ref: 1-3
MODEL F E17
FRAME (SILVER)
€ 0.00
1-4
411004346113L
ref: 1-4
MODEL G/H E17
FRAME (SILVER)
€ 0.00
1-5
411004347013L
ref: 1-5
MODEL F E18
FRAME (SILVER)
€ 0.00
1-6
411004347113L
ref: 1-6
MODEL G/H E2,E18
FRAME (SILVER)
€ 0.00
1-7
411004348013L
ref: 1-7
MODEL F E22,E26
FRAME (SILVER)
€ 0.00
1-8
411004348113L
ref: 1-8
MODEL G/H E22
FRAME (SILVER)
€ 0.00
2
4199143401291
ref: 2
PLATE,ENGINE MOUNTING NO
€ 9.00
3
0151708167
ref: 3
BOLT 8X16
€ 3.00
4
4199243400291
ref: 4
PLATE,ENGINE MOUNTING NO
€ 11.50
5
0711008408
ref: 5
BOLT
€ 3.50
6
4199343400291
ref: 6
PLATE,ENGINE MOUNTING NO.4
€ 0.00
7
0711008408
ref: 7
BOLT
€ 3.50
8
0151708167
ref: 8
BOLT 8X16
€ 3.00
9-1
0925005006
ref: 9-1
GSX550EF/EUF/EG/EUG/
PLUG
0925005006
€ 2.50
9-2
0925006007
ref: 9-2
GSX550EF/EUF/EG/EUG/
PLUG
0925006007
€ 2.00
