COWLING (GSX550ESG)

GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

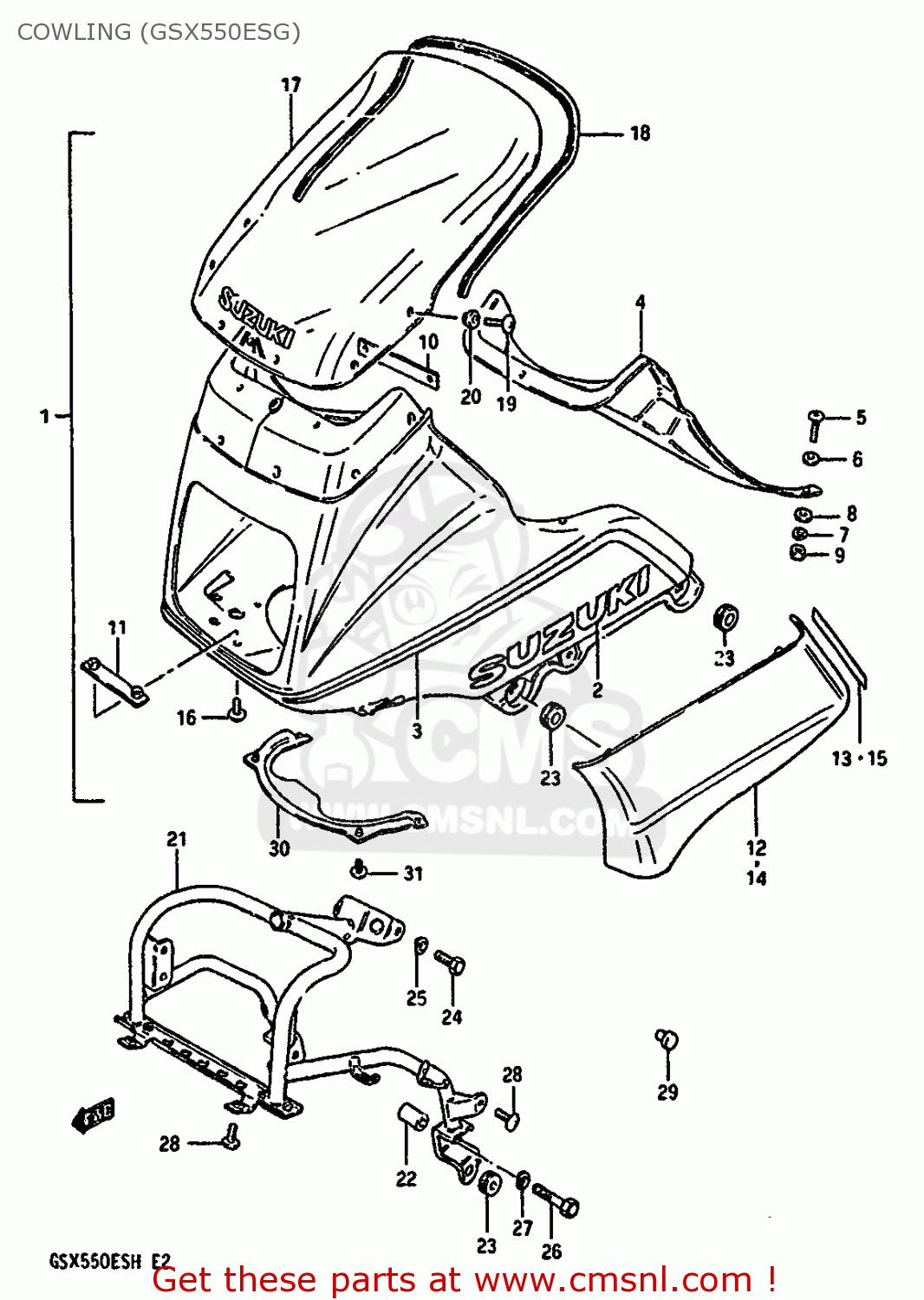

Cowling (gsx550esg) diagram GSX550ES 1987 (H) (E02 E04 E21 E22 E25)

COWLING (GSX550ESG) GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
COWLING (GSX550ESG) GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
COWLING (GSX550ESG) GSX550ES 1987 (H) (E02 E04 E21 E22 E25)
prices are in EUR
ref
part #
description
quantity
1-1
94700434707JH
ref: 1-1
BODY ASSEMBLY,COWLING
€ 960.50
1-2
94700434707JK
ref: 1-2
BODY ASSEMBLY,COWLING
€ 960.50
2-1
6811143400064
ref: 2-1
FOR 7JH
EMBLEM
6811143400064
€ 10.00
2-2
681114340022R
ref: 2-2
FOR 7JK
EMBLEM
681114340022R
€ 8.00
3-1
6819043440019
ref: 3-1
FOR 7JH
TAPE SET
€ 0.00
3-2
6819043440064
ref: 3-2
FOR 7JK
TAPE SET
€ 0.00
4
9442243400
ref: 4
PANEL,COWLING,UPPER
€ 16.50
5
0214205165
ref: 5
SCREW
0214205165
€ 2.50
6
0832221055
ref: 6
WASHER,5MM
0832221055
€ 2.50
7
0832121055
ref: 7
WASHER,LOCK
0832121055
€ 3.00
8
0832221055
ref: 8
WASHER,5MM
0832221055
€ 2.50
9
0831012055
ref: 9
NUT ,5MM
0831012055
€ 2.50
10
9441643400
ref: 10
BRACKET,COWLING,UPPER
€ 3.50
11
9442043400
ref: 11
BRACKET,COWLING,LOWER
€ 2.50
12-1
94450434107JH
ref: 12-1
FOR 7JH
COVER,RH (WHITE/BLUE)
€ 78.50
12-2
94450434107JK
ref: 12-2
FOR 7JK
COVER,COWLING
€ 63.50
13-1
6868043450019
ref: 13-1
FOR 7JH
TAPE SET,COWLING
€ 0.00
13-2
6868043450064
ref: 13-2
FOR 7JK
TAPE SET,COWLING
€ 0.00
14-1
94460434107JH
ref: 14-1
FOR 7JH
COVER,COWLING
€ 25.00
14-2
94460434107JK
ref: 14-2
FOR 7JK
COVER,LH (BLACK/RED)
94460434107JK
€ 25.00
15-1
6869043450019
ref: 15-1
FOR 7JH
TAPE SET,COWLING
€ 0.00
15-2
6869043450064
ref: 15-2
FOR 7JK
TAPE SET,COWLING
€ 0.00
16
0214205127
ref: 16
SCREW
0214205127
€ 1.50
17
9461143421
ref: 17
WINDOW
9461143421
€ 281.50
18
9463143400
ref: 18
MOLDING,LOWER
9463143400
€ 18.00
19
0214205164
ref: 19
SCREW
0214205164
€ 2.50
20
0932005008
ref: 20
CUSHION
0932005008
€ 5.00
21
9451043400
ref: 21
BRACE,COWLING
9451043400
€ 112.50
22
0918008057
ref: 22
SPACER (8.2X12.5X23.5)
0918008057
€ 2.00
23
0932008018
ref: 23
CUSHION
0932008018
€ 4.00
24
0110708165
ref: 24
BOLT
€ 2.00
25
0832121084
ref: 25
WASHER,LOCK,8.
0832121084
€ 2.50
26
0110708455
ref: 26
BOLT
€ 2.50
27
0832121084
ref: 27
WASHER,LOCK,8.
0832121084
€ 2.50
28
0214206125
ref: 28
SCREW 6X12
0214206125
€ 2.00
29-1
0925006007
ref: 29-1
PLUG
0925006007
€ 2.00
29-2
0925005006
ref: 29-2
PLUG
0925005006
€ 2.50
30
9448043410
ref: 30
COVER,COWLING,LOWER
9448043410
€ 19.00
31
0214205164
ref: 31
SCREW
0214205164
€ 2.50
