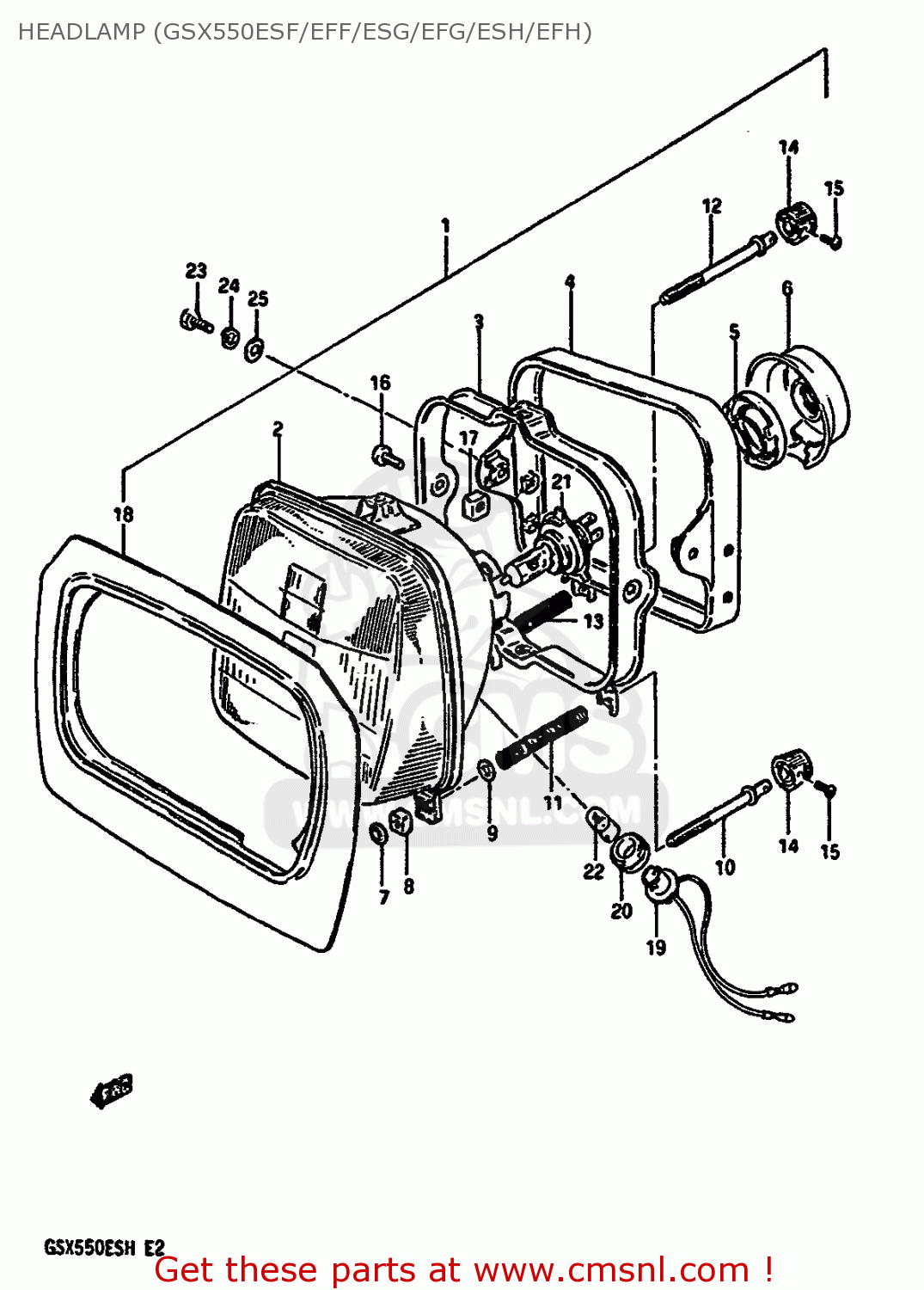

HEADLAMP (GSX550ESF/EFF/ESG/EFG/ESH/EFH)

ref

part #

description

quantity

1-1

3510049500999
ref: 1-1
MODEL F/G E1,E6

HEADLAMP ASSY

€ 0.00

1-2

3510049520999
ref: 1-2
E2

HEADLAMP ASSY

€ 0.00

1-3

3510049550999
ref: 1-3
E4,E17,E18,E21,E22,E

HEADLAMP ASSY

€ 184.50

1-5

3510049530999
ref: 1-5
E24,MODEL H E6

LAMP ASSEMBLY,HEAD

€ 0.00

2-1

3512149500
ref: 2-1
MODEL F/G E1,E6

UNIT

€ 163.00

2-2

3512149520
ref: 2-2
E2

UNIT

€ 150.00

2-3

3512149550
ref: 2-3
E4,E17,E18,E21,E22,E

LAMP UNIT

€ 150.00

2-4

3512149530
ref: 2-4
E24,MODEL H E6

LAMP UNIT

€ 0.00

3

3513049500
ref: 3

RING,MOUNTING

€ 30.00

4

3514149500
ref: 4

HOUSING,LAMP UNIT

€ 31.00

5

3513649200
ref: 5

HOLDER

€ 8.50

6

3517349200
ref: 6

COVER,HEADLAMP SOCKET

€ 12.50

7

3515249330
ref: 7

NUT,HEADLAMP ADJUSTER

€ 2.00

8

3515249500
ref: 8

NUT,HEADLAMP ADJUSTER

€ 2.50

9

3515749320
ref: 9

WASHER

€ 2.00

10

3515149500
ref: 10

SCREW,HEADLAMP ADJUST

€ 16.50

11

3515449500
ref: 11

SPRING

€ 4.50

12

3515149320
ref: 12

SCREW,ADJUSTING

€ 16.50

13

3515449320
ref: 13

SPRING

€ 3.00

14

3516149320
ref: 14

KNOB,ADJUSTER

€ 6.00

15

0211203108
ref: 15

SCREW

€ 1.50

16

0211205128
ref: 16

SCREW

€ 2.50

17

3513545900
ref: 17

NUT

€ 2.50

18

3512949500
ref: 18

SHADE

€ 21.00

19

3611849320
ref: 19

SOCKET

€ 12.00

20

3611622630
ref: 20

JOINT,RUBBER

€ 5.00

21-1

0947112060
ref: 21-1

BULB(12V60/55W,H4)

€ 8.00

21-2

0947112061
ref: 21-2
E4 EXECUTED LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

22-1

0947112001
ref: 22-1
MODEL F/G E1,E6

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

22-2

0947112063
ref: 22-2
E2,E4,E17,E18,E21,E2

BULB(12V4W)

€ 6.00

23

0110706126
ref: 23

BOLT

€ 2.00

24

0832121066
ref: 24

WASHER,LOCK

€ 2.00

25

0832221066
ref: 25

WASHER, LOWER

€ 2.00
