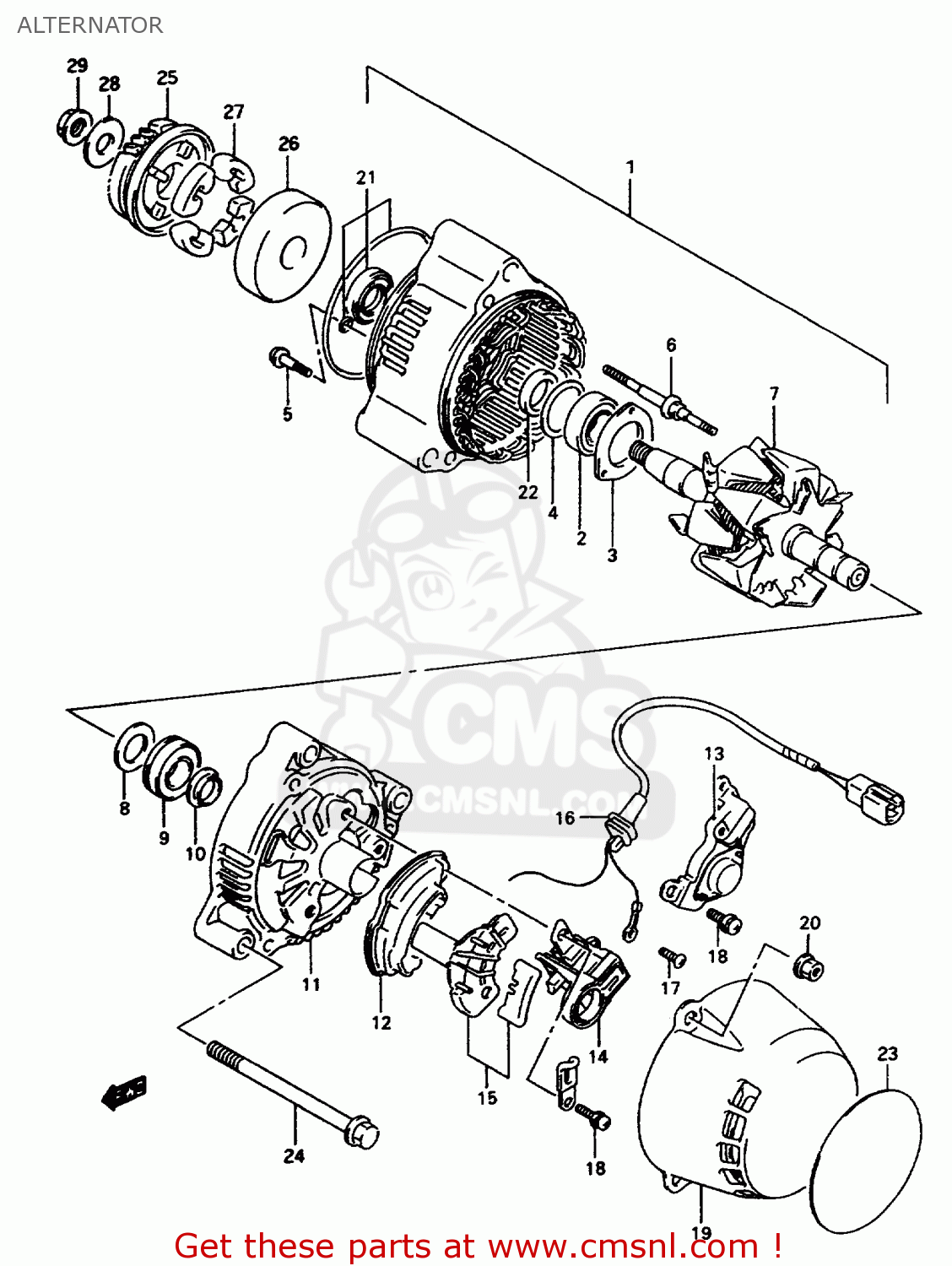

ALTERNATOR

ref

part #

description

quantity

1

3140017C04
ref: 1

ALTERNATOR ASSY

€ 1,063.50

2

3161206B00
ref: 2

BEARING

€ 36.50

3

3158548B00
ref: 3

RETAINER

€ 9.00

4

3161348B00
ref: 4

COVER,BEARING

€ 5.50

5

3158648B00
ref: 5

SCREW,BEARING RETAINER

€ 3.50

6

3158785250
ref: 6

STUD BOLT

€ 9.00

7

3171048B04
ref: 7

ALTERNATOR ASSY

€ 277.50

8

3161382610
ref: 8

COVER,BEARING

€ 3.50

9

3161248B00
ref: 9

BEARING

€ 42.50

10

3161327A10
ref: 10

COVER(2)

€ 5.50

11

3161148B00
ref: 11

FRAME,END

€ 83.00

12

3162127A00
ref: 12

HOLDER,RECTIFIER

€ 225.50

13

3250027A00
ref: 13

REGULATOR

€ 321.00

14

3165648B00
ref: 14

HOLDER,BRUSH

€ 55.50

15

3168717E00
ref: 15

COVER,RECTIFIER

€ 4.50

16

3148048B00
ref: 16

WIRE,LEAD

€ 22.00

17

0211204063
ref: 17

SCREW 4X6

€ 2.00

18

3168827A00
ref: 18

SCREW

€ 2.50

19

3161448B00
ref: 19

COVER

€ 67.50

20

0831610053
ref: 20

NUT

€ 2.50

21

3178027X50
ref: 21

SERVICE KIT(A)

€ 47.50

22

3177606B00
ref: 22

SPACER

€ 22.00

23

3161527E00
ref: 23

PLATE,ALTERNATOR ABSORBER

€ 10.00

24

0155008903
ref: 24

BOLT

€ 3.50

25

2273019C01
ref: 25

GEAR,GENERATOR DRIVEN

€ 112.50

26

2273327A04
ref: 26

HOUSING,GENERATOR GEAR

€ 95.00

27

2123106B00
ref: 27

DAMPER,GENERATOR DRIVEN

€ 5.50

28

0821110283
ref: 28

WASHER

€ 3.00

29

0831620103
ref: 29

NUT

€ 3.50
