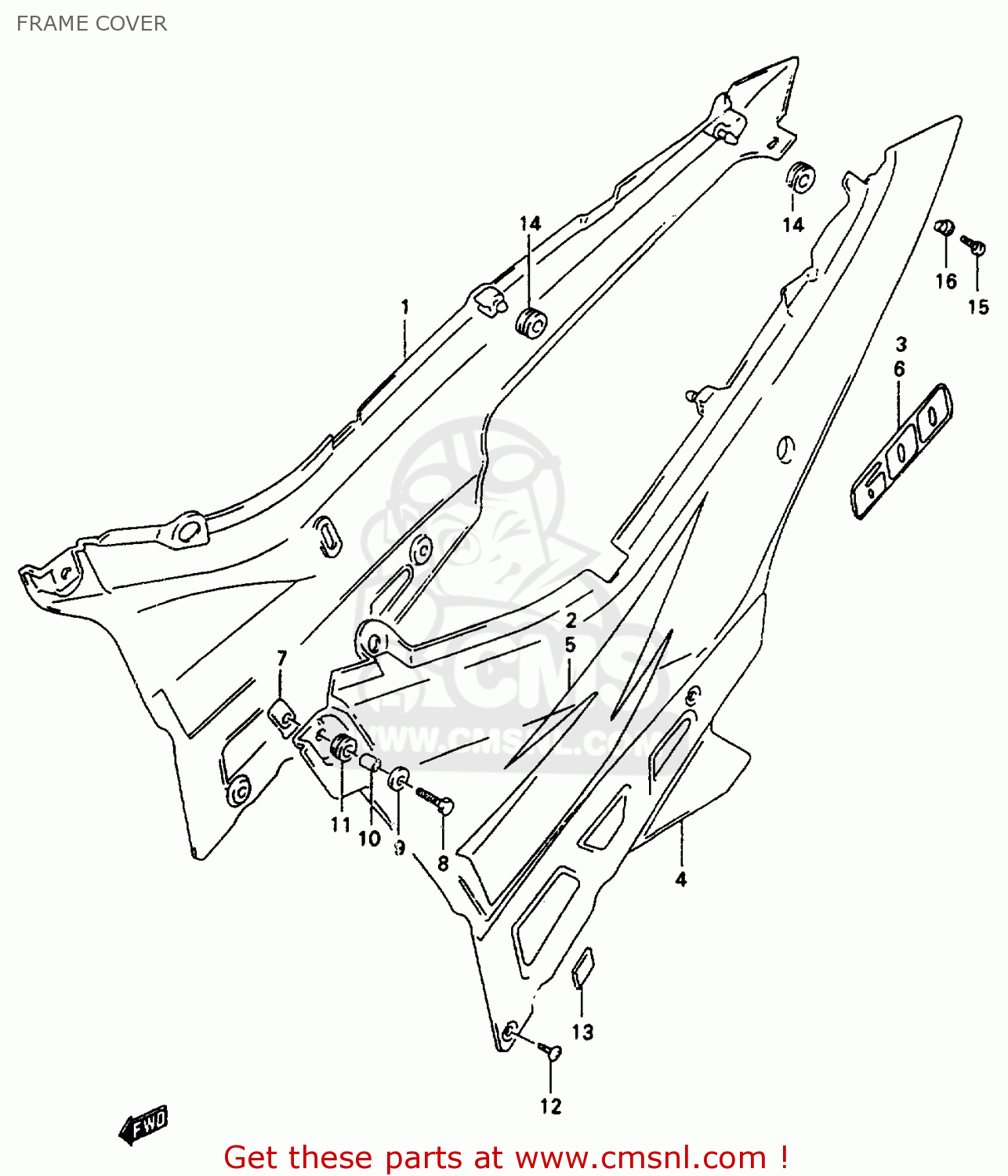

FRAME COVER

ref

part #

description

quantity

1-1

4711043CB03DC
ref: 1-1
FOR 33J

COVER,FRAME, R

€ 275.50

1-2

4711043CB0G3K
ref: 1-2
FOR 1LF

COVER COMP,FRAME,RIGHT

€ 275.50

1-3

4711043CB0G3L
ref: 1-3
FOR Z66

COVER COMP,FRAME,RIGHT

€ 299.00

2-1

6813543C20G3U
ref: 2-1
FOR 3DC

TAPE, RH

€ 33.00

2-2

6813543C20G3V
ref: 2-2
FOR G3K

TAPE,FRAME COVER,RIGHT

€ 33.00

2-3

6813543C20G3W
ref: 2-3
FOR G3L

TAPE,FRAME COVER,RIGHT

€ 35.50

3-1

6813143C30G3Y
ref: 3-1
FOR 3DC

EMBLEM

€ 17.00

3-2

6813143C30G3Z
ref: 3-2
FOR G3K

EMBLEM,FRAME COVER

€ 9.50

3-3

6813143C30G4A
ref: 3-3
FOR G3L

EMBLEM,FRAME COVER

€ 10.50

4-1

4721043CB03DC
ref: 4-1
FOR 33J

COVER, FRAME LH

€ 274.00

4-2

4721043CB0G3K
ref: 4-2
FOR 1LF

COVER,FRAME,L

€ 284.50

4-3

4721043CB0G3L
ref: 4-3
FOR Z66

COVER COMP,FRAME,LEFT

€ 274.00

5-1

6814543C20G3U
ref: 5-1
FOR 3DC

TAPE, LH

€ 35.00

5-2

6814543C20G3V
ref: 5-2
FOR G3K

TAPE,FRAME COVER,LEFT

€ 33.00

5-3

6814543C20G3W
ref: 5-3
G3L

TAPE,FRAME COVER,LEFT

€ 33.00

6-1

6813143C30G3Y
ref: 6-1
FOR 3DC

EMBLEM

€ 17.00

6-2

6813143C30G3Z
ref: 6-2
FOR G3K

EMBLEM,FRAME COVER

€ 9.50

6-3

6813143C30G4A
ref: 6-3
FOR G3L

EMBLEM,FRAME COVER

€ 10.50

7

4715319C01
ref: 7

PLATE,FRAME COVER

€ 4.00

8

0913906068
ref: 8

SCREW(6X20)

€ 3.00

9

0916006109
ref: 9

WASHER(6.5X18X1.6)

€ 2.00

10

0918006263
ref: 10

SPACER(6.5X9X9)

€ 2.00

11

0932009016
ref: 11

CUSHION

€ 2.50

12

0913905038
ref: 12

SCREW(5X15.3)

€ 2.00

13

4716119C00
ref: 13

CUSHION,FRAME COVER

€ 1.50

14

0932008018
ref: 14

CUSHION

€ 4.00

15

0214205123
ref: 15

SCREW 5X12

€ 1.50

16

0916905009
ref: 16

WASHER

€ 3.50

all assemblies
