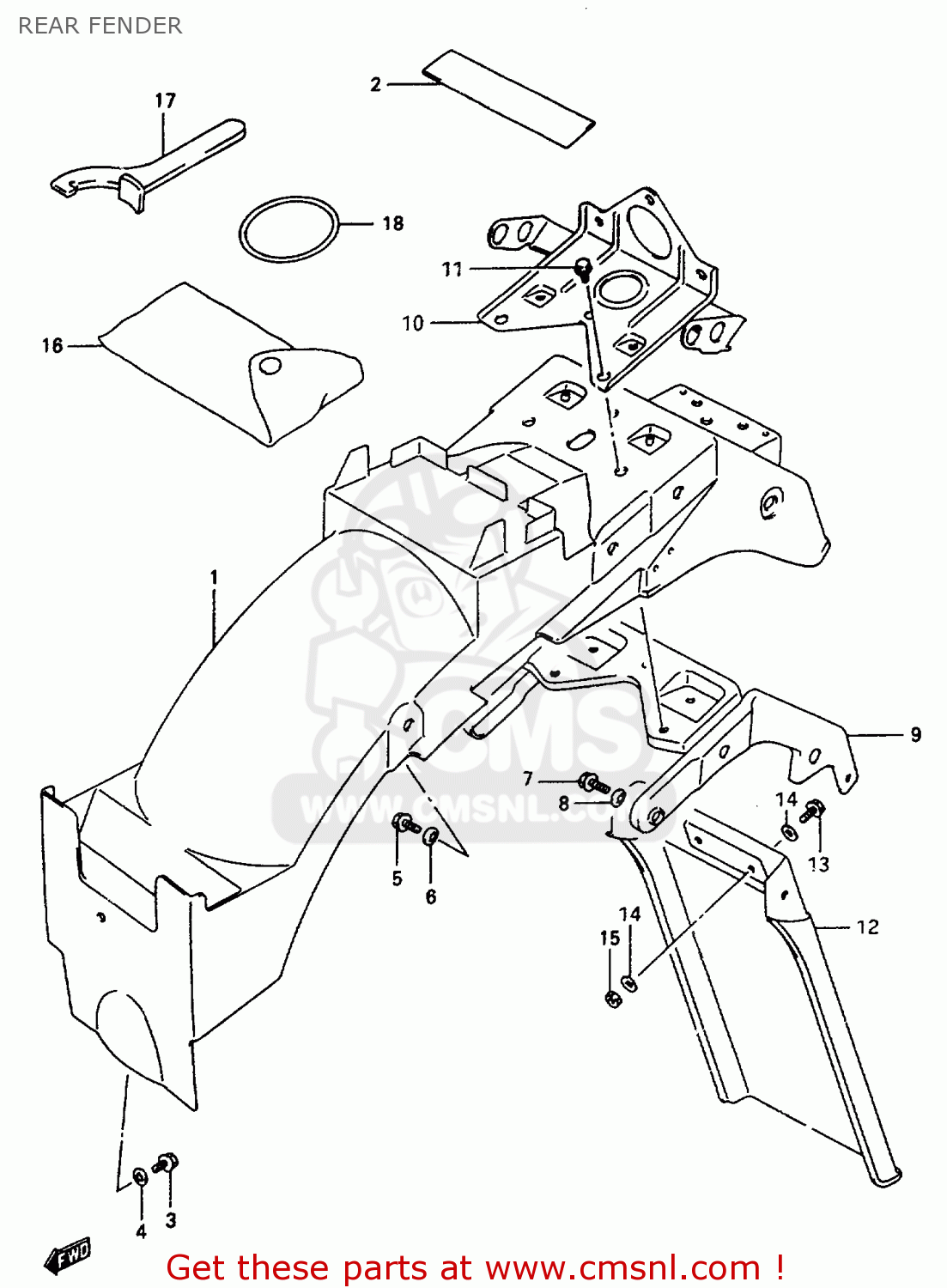

REAR FENDER

ref

part #

description

quantity

1-1

6311119C00
ref: 1-1

BODY,REAR FENDER

€ 85.00

1-2

6311119C20
ref: 1-2
E17,E22

BODY,RR FENDER

€ 85.50

2

6319119C00
ref: 2

CUSHION,RR FENDER

€ 2.50

3

0155006103
ref: 3

BOLT

€ 2.50

4

0916906037
ref: 4

WASHER

€ 6.50

5

0155006203
ref: 5

BOLT

€ 2.50

6

0916906037
ref: 6

WASHER

€ 6.50

7

0155006203
ref: 7

BOLT

€ 2.50

8

0916906042
ref: 8

WASHER

€ 1.50

9

6312019C00
ref: 9

REINF,RR FENDER

€ 34.50

10

6346019C01
ref: 10

BRACKET,RR LAMP

€ 17.00

11

0155006123
ref: 11

BOLT

€ 2.50

12

6331119C00
ref: 12
E17,E22

EXTENSION, REAR FENDER

€ 28.50

13

0214206163
ref: 13
E17,E22

SCREW

€ 2.50

14

0916006019
ref: 14
E17,E22

WASHER(6.5X16X1.2)

€ 1.50

15

0831921066
ref: 15
E17,E22

NUT

€ 2.00

16

0980021036
ref: 16

TOOL ASSY

€ 28.50

17

0982200005
ref: 17

CLAMP

€ 22.00

18

0928061002
ref: 18

O RING(D:3.5,ID:61)

€ 5.00
