ELECTRICAL

GSX600F 1997 (V) (E02 E17 E22 E25 E34)

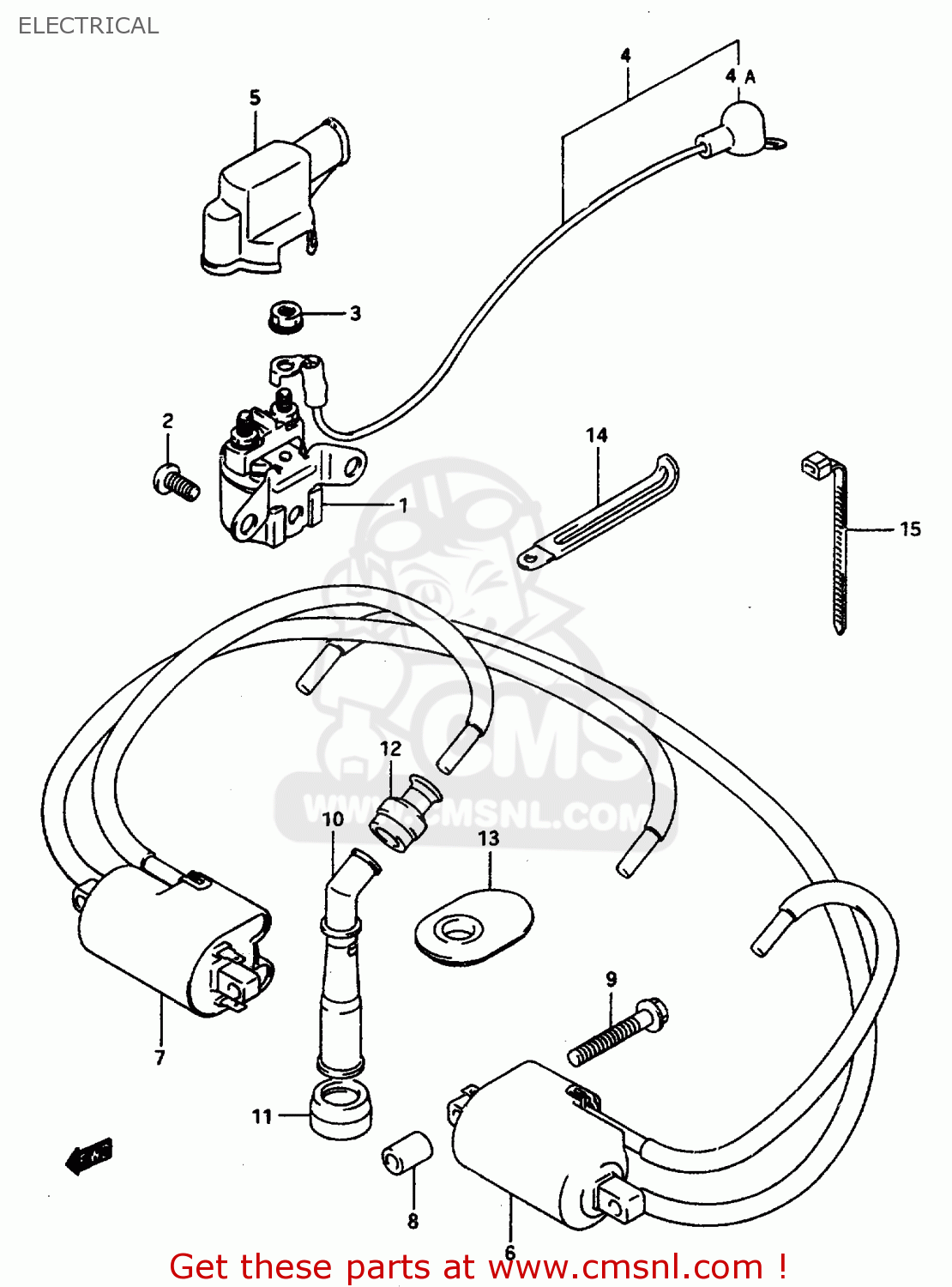

Electrical diagram GSX600F 1997 (V) (E02 E17 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

0211206103
ref: 2

SCREW

€ 1.50

0836135068
ref: 3

NUT

€ 2.00

3381041C00
ref: 4

WIRE,STARTER MOTOR LEAD

€ 29.00

3186148B10
ref: 4A

CAP,STARTER MOTOR LEAD

€ 4.50

3186110D10
ref: 5

CAP,STARTER RELAY

€ 6.50

3341019C00
ref: 6

COIL ASSEMBLY,IGNITION NO

€ 147.00

3342019C00
ref: 7

COIL ASSEMBLY,IGNITION NO

€ 162.50

0918006198
ref: 8

SPACER(6.2X12X16)

€ 3.50

0155006453
ref: 9

BOLT (6X45)

€ 2.50

3351048B10
ref: 10

CAP,SPARK PLUG

€ 29.50

3354123E01
ref: 11

SEAL,SPARK PLUG CAP

€ 7.00

3354238B00
ref: 12

SEAL,HIGH TENSION CORD

€ 4.50

3354348B00
ref: 13

COVER,SPARK PLUG CAP

€ 12.50

0940406431
ref: 14

CLAMP(L:65)

€ 2.50

0940718403
ref: 15

CLAMP L:165

€ 2.50
