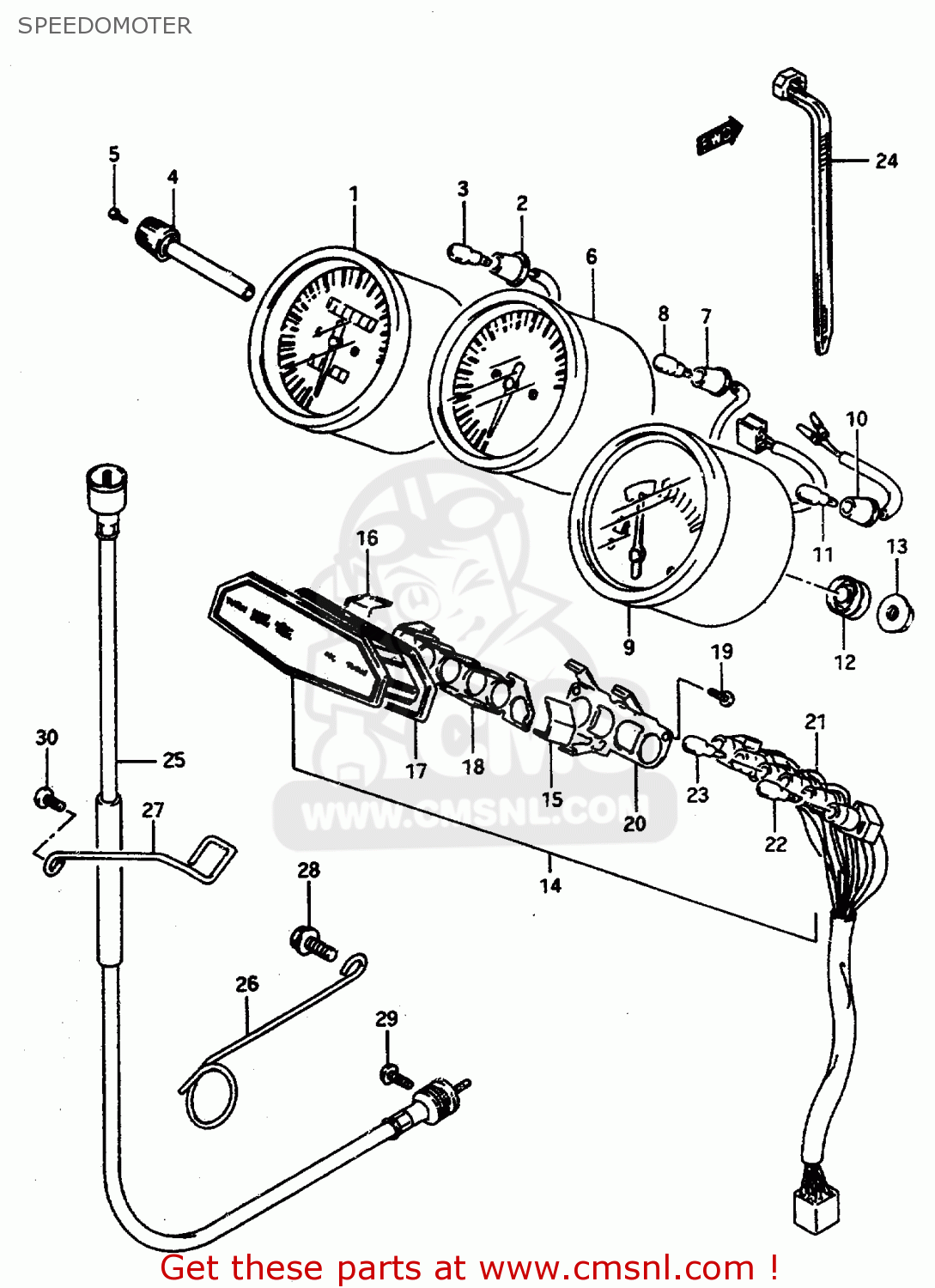

SPEEDOMOTER

ref

part #

description

quantity

1-1

3410019C40
ref: 1-1

SPEEDOMETER ASSY

€ 397.50

1-2

3410019C50
ref: 1-2

SPEEDOMETER ASSY

€ 267.50

2

3417119C00
ref: 2

SOCKET

€ 30.00

3

0947112085
ref: 3

BULB(12V3W,WB371,T7)

€ 3.00

4

3412419C00
ref: 4

KNOB,TRIP

€ 11.00

5

3418412D00
ref: 5

SCREW,TRIP KNOB

€ 2.00

6

3420019C20
ref: 6

TACHOMETER ASSY

€ 500.00

7

3417119C10
ref: 7

SOCKET

€ 22.00

8

0947112085
ref: 8

BULB(12V3W,WB371,T7)

€ 3.00

9

3430019C20
ref: 9

FUEL,METER ASSY

€ 150.50

10

3417119C10
ref: 10

SOCKET

€ 22.00

11

0947112085
ref: 11

BULB(12V3W,WB371,T7)

€ 3.00

12

3418930921
ref: 12

CUSHION

€ 3.00

13

0915906076
ref: 13

NUT

€ 3.00

14-1

3638019C00
ref: 14-1

BOX ASSEMBLY,PILOT LAMP

€ 133.00

14-2

3638019C10
ref: 14-2
E17,E22,E25,E34

BOX ASSY

€ 133.00

15

3638327A00
ref: 15

PLATE,TURN,R

€ 14.50

16

3638427A00
ref: 16

PLATE,TURN,L

€ 9.50

17

3419619C00
ref: 17

CUSHION

€ 19.00

18

3638227A00
ref: 18

PLATE,PILOT LAMP

€ 18.50

19

3645745100
ref: 19

SCREW

€ 2.00

20

3419719C00
ref: 20

LOCK PLATE

€ 13.00

21

3417119C20
ref: 21

SOCKET

€ 85.00

22

0947112100
ref: 22

BULB(12V1.7W,WB372,T7)

€ 2.00

23

0947112085
ref: 23

BULB(12V3W,WB371,T7)

€ 3.00

24

0940714403
ref: 24

CLAMP(L:125)

€ 2.50

25

3491019C01
ref: 25

CABLE ASSY,SPEEDOMETER

€ 27.50

26

3493845100
ref: 26

CLAMP,SPEEDOMETER CABLE

€ 14.50

27

3493834C01
ref: 27

CLAMP,SPEEDOMETER CABLE

€ 4.50

28

0155006163
ref: 28

BOLT

€ 2.50

29

0211205163
ref: 29

SCREW

€ 2.00

30

0214205123
ref: 30

SCREW 5X12

€ 1.50

all assemblies
