INSTALLATION PARTS

GSX600F 1997 (V) (E02 E17 E22 E25 E34)

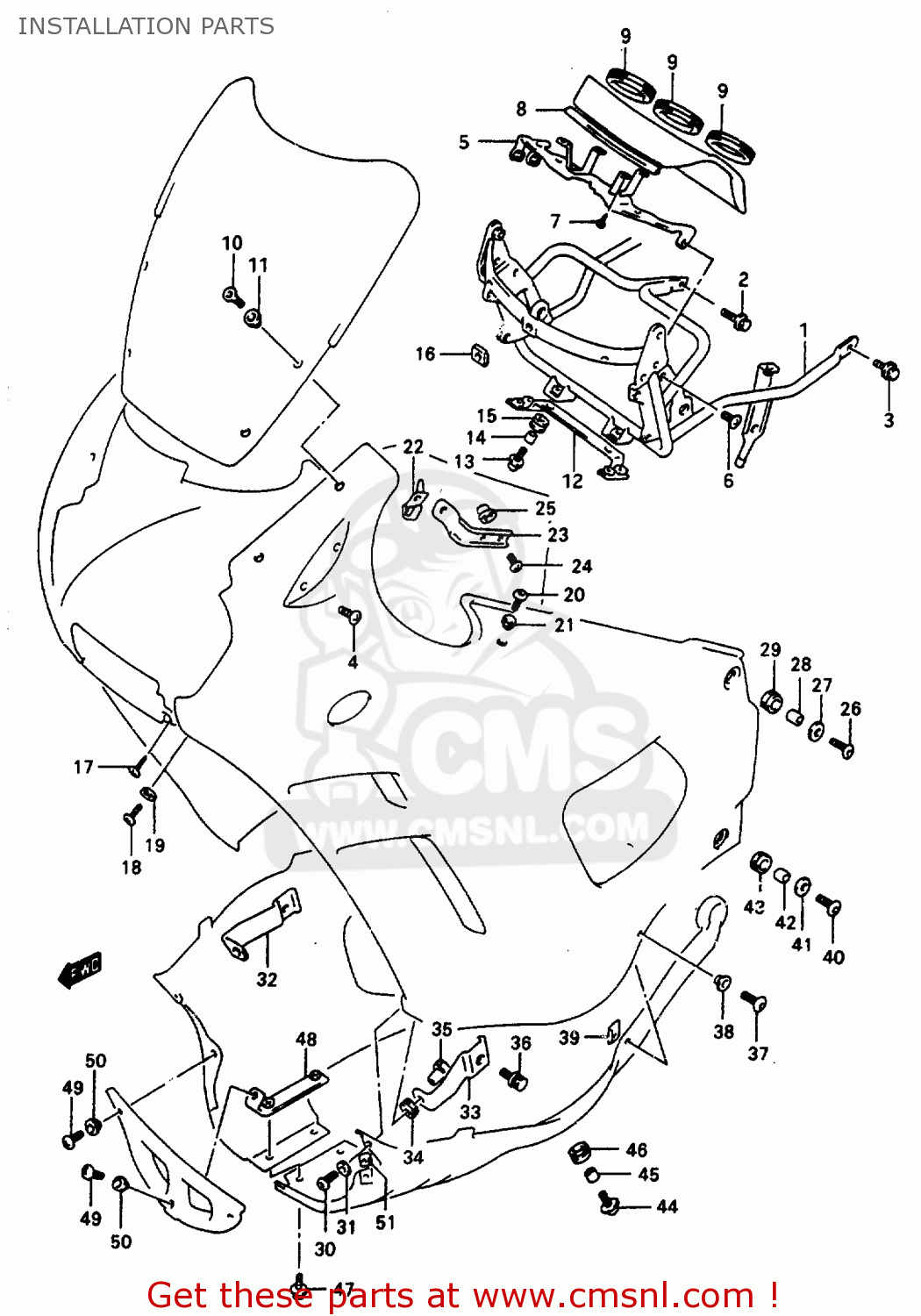

Installation parts diagram GSX600F 1997 (V) (E02 E17 E22 E25 E34)

INSTALLATION PARTS GSX600F 1997 (V) (E02 E17 E22 E25 E34)
INSTALLATION PARTS GSX600F 1997 (V) (E02 E17 E22 E25 E34)
INSTALLATION PARTS GSX600F 1997 (V) (E02 E17 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
9451020C20
ref: 1
BRACE,COWLING
9451020C20
€ 128.50
2
0910308266
ref: 2
BOLT(8X20)
0910308266
€ 2.50
3
0155006123
ref: 3
BOLT
0155006123
€ 2.50
4
0214206123
ref: 4
SCREW 6X12
0214206123
€ 2.00
5
9452019C00
ref: 5
PLATE,METER FITING
9452019C00
€ 31.50
6
0214206123
ref: 6
SCREW 6X12
0214206123
€ 2.00
7
0354105083
ref: 7
SCREW 5X8
0354105083
€ 2.00
8
9452719C00
ref: 8
MOLDING,METER COVER
9452719C00
€ 3.00
9
9442619C00
ref: 9
CUSHION,METER COVER
9442619C00
€ 6.00
10
0913905022
ref: 10
SCREW
0913905022
€ 2.50
11
0916105002
ref: 11
WASHER
€ 2.00
12
9446019C00
ref: 12
PLATE,COWL CTR PANEL
9446019C00
€ 12.00
13
0913606081
ref: 13
SCREW(6X20)
0913606081
€ 3.00
14
0918006317
ref: 14
SPACER (6.5X10X9.4)
0918006317
€ 2.00
15
0932010015
ref: 15
CUSHION
0932010015
€ 2.50
16
9463819C00
ref: 16
CUSHION,SCREEN
€ 2.50
17
0214205123
ref: 17
SCREW 5X12
0214205123
€ 1.50
18
0913906029
ref: 18
SCREW(6X25)
0913906029
€ 5.00
19
0916006006
ref: 19
WASHER
0916006006
€ 2.00
20
0913906030
ref: 20
SCREW(6X16)
0913906030
€ 3.50
21
0916106021
ref: 21
WASHER(6.3X16X1.5)
0916106021
€ 2.50
22
9456019C00
ref: 22
BRACKET,COWLING UPR,R
9456019C00
€ 40.50
23
9457019C00
ref: 23
BRACKET,COWLING UPR,L
9457019C00
€ 40.50
24
0214206253
ref: 24
SCREW
0214206253
€ 1.50
25
9457319C00
ref: 25
NUT,COWLING SIDE BRKT
9457319C00
€ 8.00
26
0913906029
ref: 26
SCREW(6X25)
0913906029
€ 5.00
27
0916006006
ref: 27
WASHER
0916006006
€ 2.00
28
0918006263
ref: 28
SPACER(6.5X9X9)
0918006263
€ 2.00
29
0932009016
ref: 29
CUSHION
0932009016
€ 2.50
30
0913906042
ref: 30
SCREW(6X30)
0913906042
€ 7.50
31
0916006006
ref: 31
WASHER
0916006006
€ 2.00
32
9453119C00
ref: 32
BRACKET,COWLING LWR,R
9453119C00
€ 8.00
33
9453219C00
ref: 33
BRACKET,COWLING LWR,L
9453219C00
€ 6.00
34
0932010015
ref: 34
CUSHION
0932010015
€ 2.50
35
9459019C00
ref: 35
NUT,COWLING,FR
9459019C00
€ 8.00
36
0158006163
ref: 36
BOLT
0158006163
€ 2.50
37
0913905025
ref: 37
SCREW(5X14)
0913905025
€ 2.00
38
0916105017
ref: 38
WASHER(5.2X14X1.5)
0916105017
€ 3.00
39
9448432B00
ref: 39
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
40
0913906029
ref: 40
SCREW(6X25)
0913906029
€ 5.00
41
0916006006
ref: 41
WASHER
0916006006
€ 2.00
42
0918006097
ref: 42
SPACER(6.1X9X12.3)
0918006097
€ 5.50
43
0932009016
ref: 43
CUSHION
0932009016
€ 2.50
44
0913606081
ref: 44
SCREW(6X20)
0913606081
€ 3.00
45
0918006263
ref: 45
SPACER(6.5X9X9)
0918006263
€ 2.00
46
0932009016
ref: 46
CUSHION
0932009016
€ 2.50
47
0214205163
ref: 47
SCREW
0214205163
€ 2.50
48
9458019C00
ref: 48
BRACKET,FR UNDER COWL
9458019C00
€ 6.50
49
0214205163
ref: 49
SCREW
0214205163
€ 2.50
50
0916105017
ref: 50
WASHER(5.2X14X1.5)
0916105017
€ 3.00
51
9448432B00
ref: 51
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
