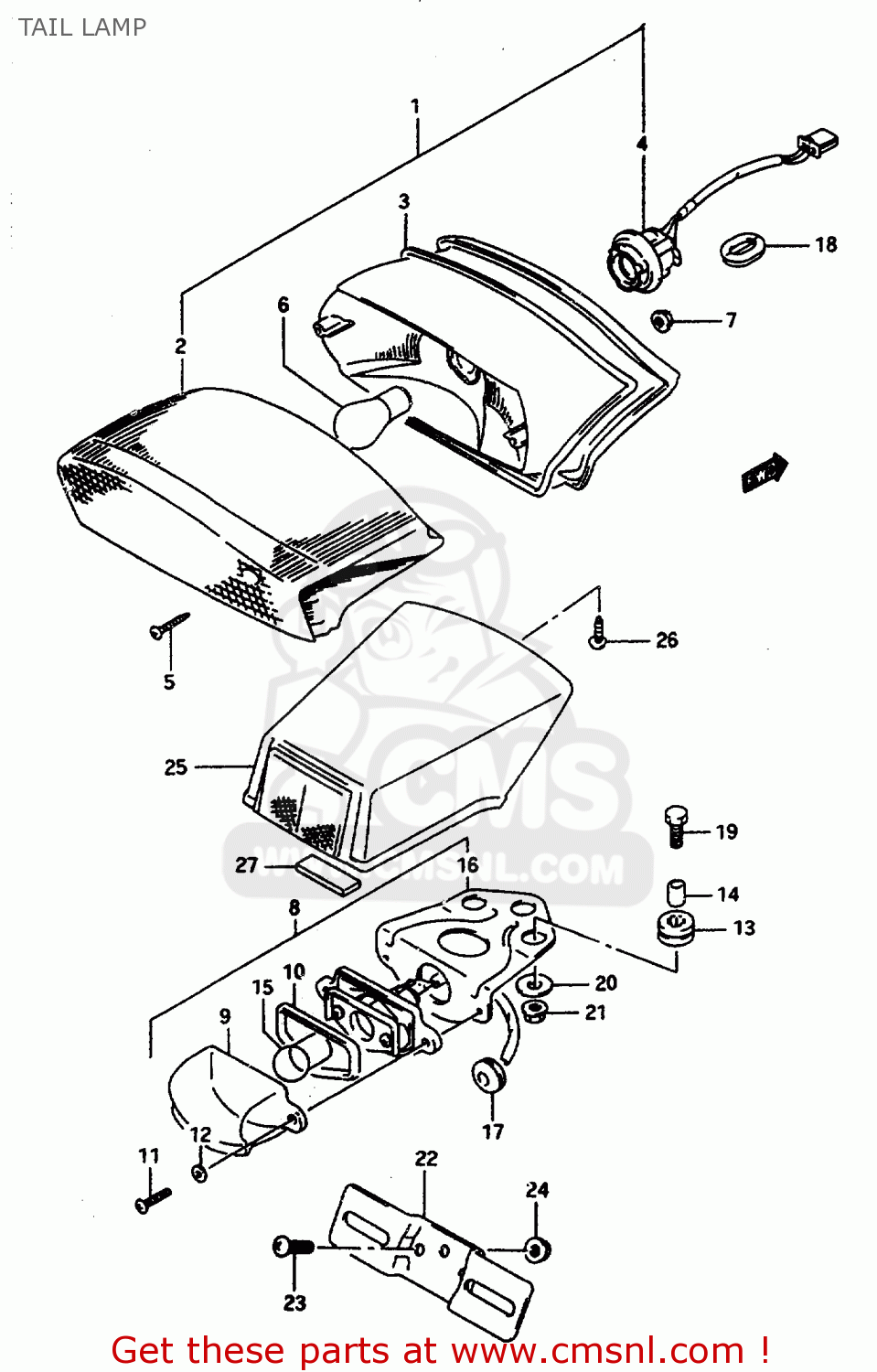

TAIL LAMP

ref

part #

description

quantity

1

3571019C50
ref: 1

LAMP ASSY,RR COMBINATION

€ 141.50

2

3571219C00
ref: 2

LENS

€ 57.50

3

3571319C00
ref: 3

GASKET (NAS)

€ 7.00

4

3571819C00
ref: 4

SOCKET

€ 33.00

5

0321104203
ref: 5

SCREW

€ 1.50

6

0947112083
ref: 6

BULB(12V21/5W)

€ 6.00

7

0831620063
ref: 7

NUT

€ 2.00

8

3591019C10
ref: 8

LAMP ASSY,LICENSE

€ 83.50

9

3591200A21
ref: 9

LENS,LICENSE LAMP

€ 24.00

10

3591304A00
ref: 10

GASKET,LICESE LAMP (NAS)

€ 4.00

11

0211204163
ref: 11

SCREW 4X16

€ 1.00

12

0832201047
ref: 12

WASHER

€ 2.00

13

3576535300
ref: 13

CUSHION,RR COMBINATION

€ 3.00

14

3576619C00
ref: 14

SPACER

€ 2.00

15

0947112140
ref: 15

BULB(12V5W,BF150-40160A)

€ 4.00

16

3591619C00
ref: 16

BRACKET

€ 13.00

17

0930807009
ref: 17

GROMMET

€ 2.00

18

0930812007
ref: 18

GROMMET

€ 3.50

19

0911606115
ref: 19

BOLT(6X20)

€ 2.00

20

0916006077
ref: 20

WASHER(6.5X20X1.2)

€ 2.00

21

0831620063
ref: 21

NUT

€ 2.00

22

3592700A10
ref: 22

BRACKET,LICENSE PLATE

€ 6.00

23

0214206203
ref: 23

SCREW

€ 2.00

24

0831000063
ref: 24

NUT 6MM

€ 2.00

25

3591719C00
ref: 25

COVER,LICENSE LAMP

€ 26.00

26

0354105163
ref: 26

SCREW

€ 1.50

27

3599505C00
ref: 27

PROTECTOR,LICENSE LAMP

€ 2.00

all assemblies
