BATTERY

GSX600F 1997 (V) (E02 E17 E22 E25 E34)

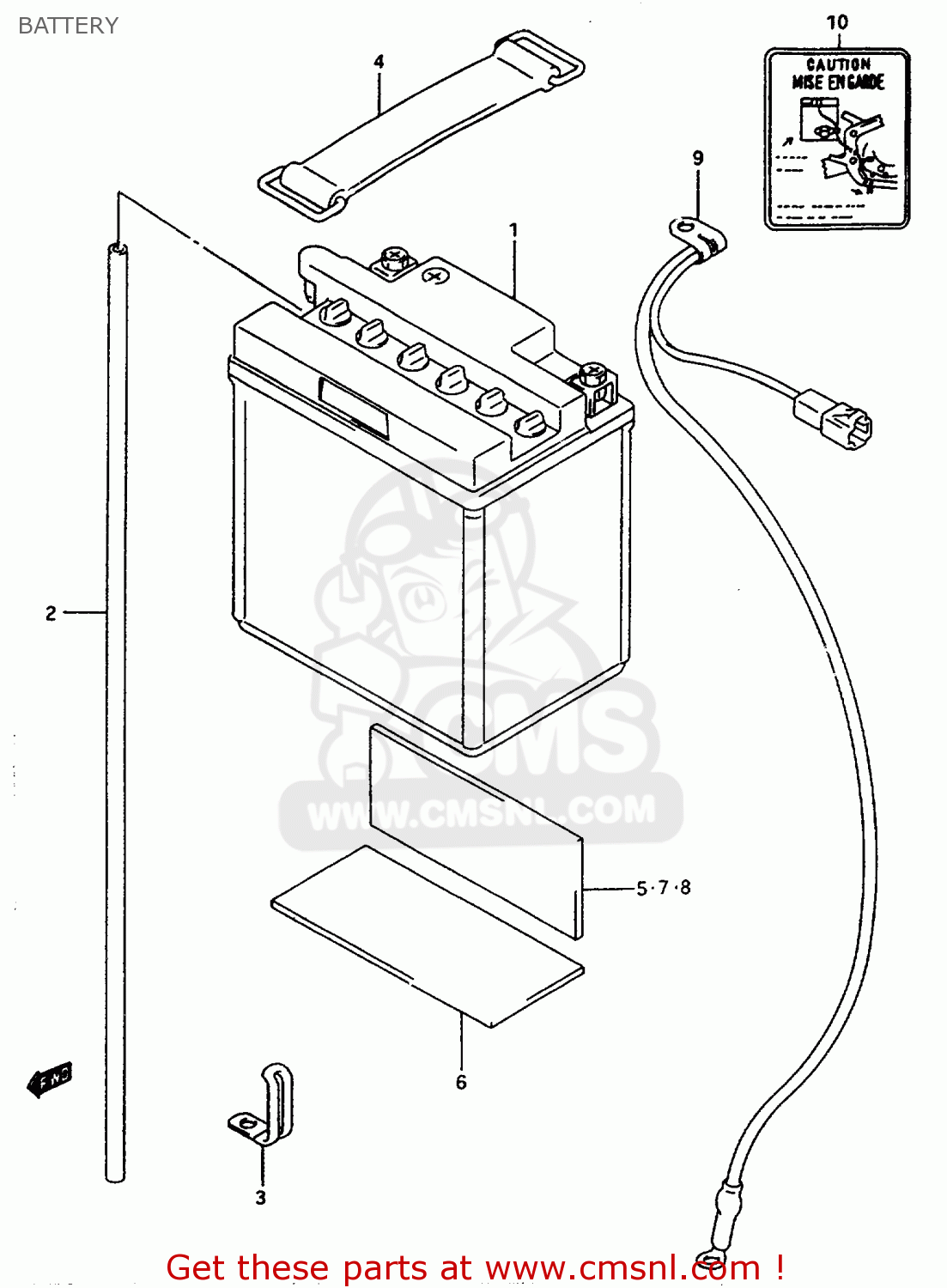

Battery diagram GSX600F 1997 (V) (E02 E17 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

3361004A20
ref: 1

BATTERY(YB10L-B2,12V11.6AH)

€ 78.50

3368016A10
ref: 2
L:780-600

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

0940406206
ref: 3

CLAMP(L:45)

€ 2.50

0946200043
ref: 4

BAND

€ 4.50

3365137000
ref: 5
CUT AS REQUIREDE PRO

PROTECTOR(170X95X3.0)

€ 5.00

3365220C00
ref: 6

PROTECTOR(50X50X5)

€ 2.50

3365137000
ref: 7
CUT AS REQUIRED (30X

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 8
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3386044B01
ref: 9

WIRE,BATTERY MINUS LEAD

€ 17.50

3369019C10
ref: 10

PLATE,BATTERY CAUTION

€ 3.00
