HEADLAMP

GSX600F 1997 (V) (E02 E17 E22 E25 E34)

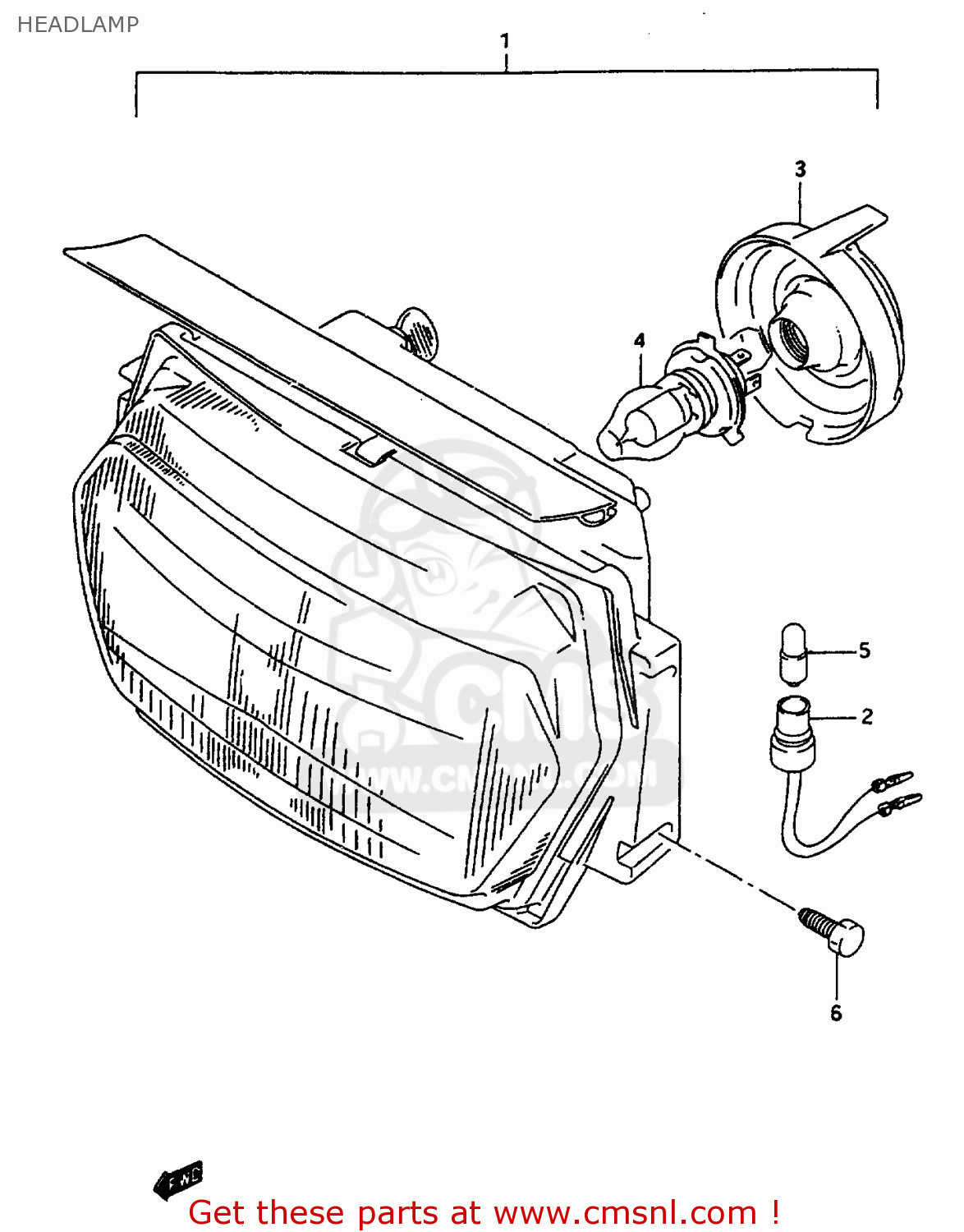

Headlamp diagram GSX600F 1997 (V) (E02 E17 E22 E25 E34)

HEADLAMP GSX600F 1997 (V) (E02 E17 E22 E25 E34)

HEADLAMP GSX600F 1997 (V) (E02 E17 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

3510034C01999
ref: 1-1

HEADLAMP ASSY

€ 217.00

1-2

3510020C51999
ref: 1-2
E17,E22,E25,E34

HEADLAMP ASSY

€ 217.00

2

3611832B10
ref: 2

SOCKET

€ 9.50

3

3517348B00
ref: 3

COVER,SOCKET

€ 10.50

4

0947112060
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112063
ref: 5

BULB(12V4W)

€ 6.00

6

0158006203
ref: 6

BOLT, REAR

€ 2.50
