SIGNAL GENERATOR

GSX600F 1997 (V) (E02 E17 E22 E25 E34)

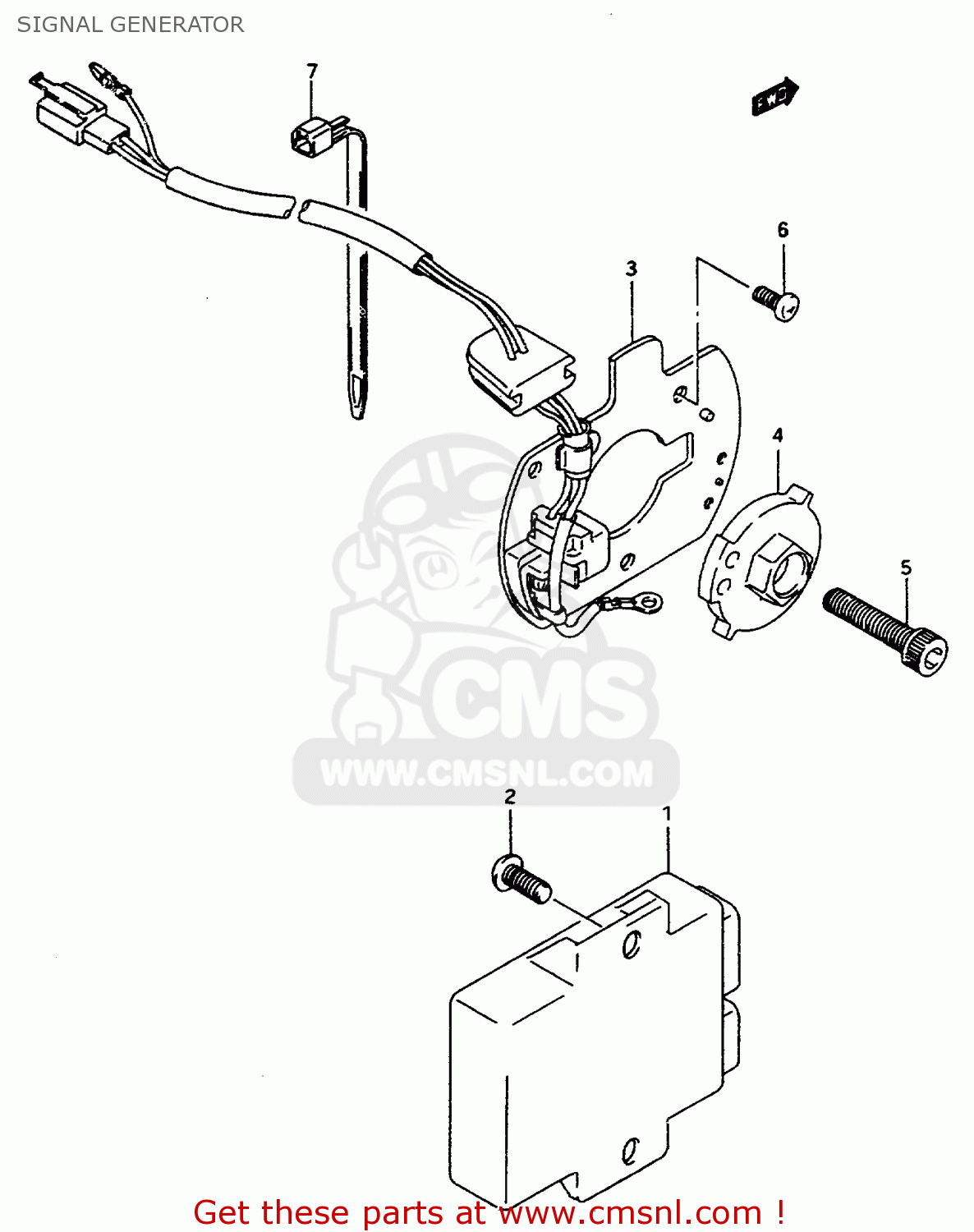

Signal generator diagram GSX600F 1997 (V) (E02 E17 E22 E25 E34)

SIGNAL GENERATOR GSX600F 1997 (V) (E02 E17 E22 E25 E34)

SIGNAL GENERATOR GSX600F 1997 (V) (E02 E17 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3290019C60
ref: 1

IGNITOR ASSY

€ 511.00

2

0214206123
ref: 2

SCREW 6X12

€ 2.00

3

3311017C00
ref: 3

GENERATOR ASSY,SIGNAL

€ 324.00

4

3312019C20
ref: 4

ROTOR,SIGNAL GENERATOR

€ 182.00

5

0713008303
ref: 5

BOLT

€ 3.00

6

0211205103
ref: 6

SCREW

€ 2.00

7

0940711401
ref: 7

CLAMP(L:95)

€ 2.50
