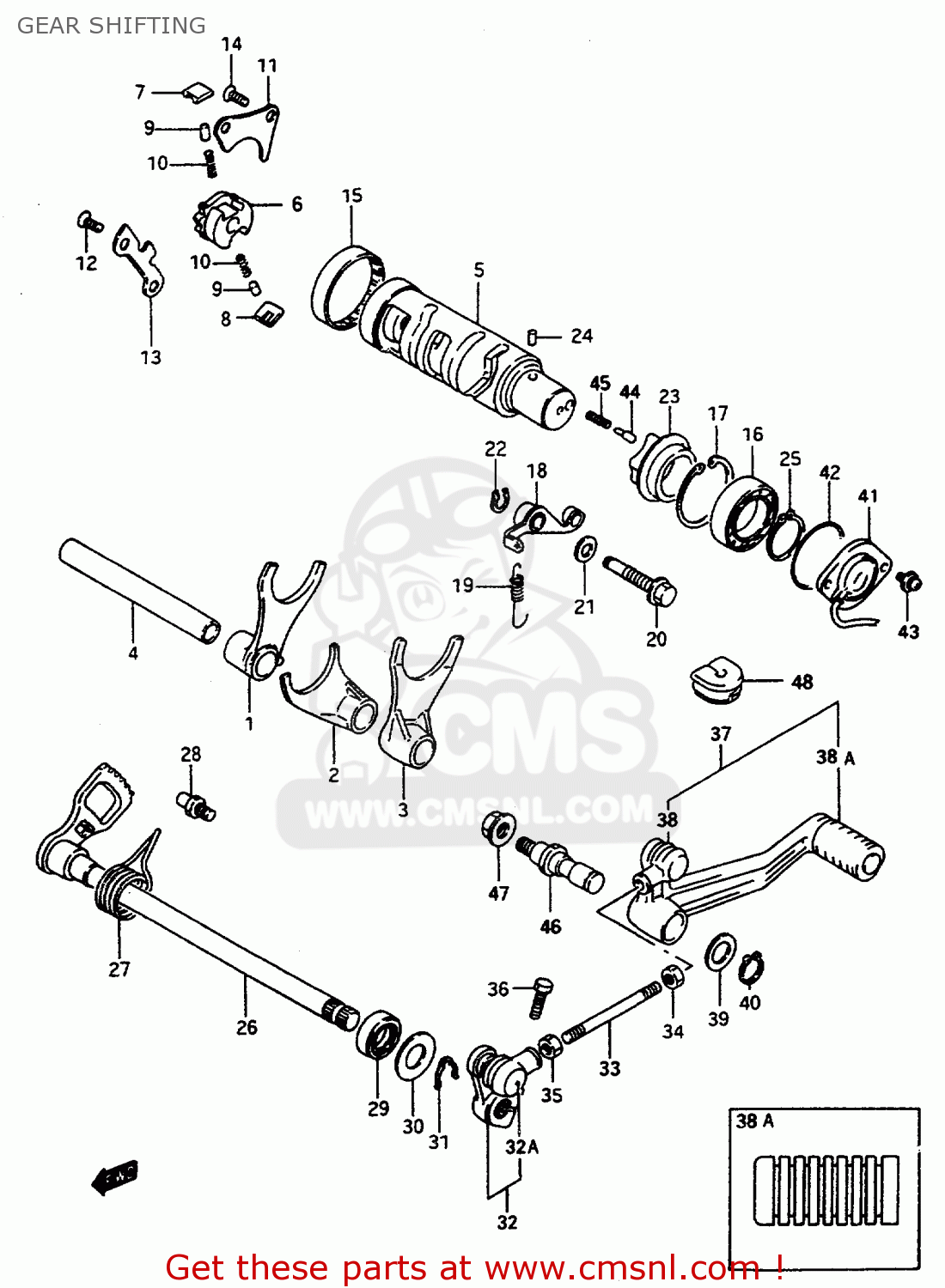

GEAR SHIFTING

ref

part #

description

quantity

1

2521127A00
ref: 1

FORK,GEAR SHIFT NO.1

€ 102.50

2

2522127A01
ref: 2

FORK,GEAR SHIFT NO.2

€ 83.50

3

2523127A00
ref: 3

FORK,GEAR SHIFT NO.3

€ 84.00

4

2541127A00
ref: 4

SHAFT,GEAR SHIFT FORK(L:128)

€ 23.50

5

2531027A02
ref: 5

CAM,GEAR SHIFT

€ 196.50

6

2532231302
ref: 6

GEAR,GEARSHIFT CAM DRIVE

€ 14.50

7

2532334201
ref: 7

PAWL,GEAR SHIFT NO.1

€ 6.00

8

2532434201
ref: 8

PAWL,GEAR SHIFT NO.2

€ 6.00

9

0926105003
ref: 9

PIN(5X8)

€ 1.50

10

0944004003
ref: 10

SPRING

€ 1.50

11

2533131301
ref: 11

LIFTER,GEAR SHIFT PAWL

€ 7.00

12

0212206123
ref: 12

SCREW

€ 3.00

13

2534127A00
ref: 13

GUIDE,GEAR SHIFT CAM

€ 8.50

14

0212206123
ref: 14

SCREW

€ 3.00

15

0926343001
ref: 15

BEARING(43X49X12)

€ 30.00

16

0811369050
ref: 16

BEARING

€ 36.00

17

0833141426
ref: 17

CIRCLIP

€ 1.50

18

2535027A00
ref: 18

STOPPER,GEAR SHIFT CAM

€ 13.00

19

0944309031
ref: 19

SPRING

€ 4.00

20

2535327A00
ref: 20

SHAFT,GEAR SHIFT CAM STOPPER

€ 5.50

21

0916810002
ref: 21

GASKET(10X14X3.6) (NAS)

€ 2.00

22

0833131086
ref: 22

CIRCLIP

€ 2.00

23

2538138400
ref: 23

PLATE,STOPPER

€ 22.00

24

0422104069
ref: 24

PIN

€ 2.00

25

0833131256
ref: 25

CIRCLIP

€ 2.00

26

2551019C01
ref: 26

SHAFT,GEAR SHIFT

€ 91.50

27

0944426017
ref: 27

SPRING

€ 5.00

28

2567101000
ref: 28

STOPPER,GEAR SHIFT CAM

€ 3.00

29

0928512002
ref: 29

OIL SEAL

€ 7.00

30

0916012020
ref: 30

WASHER (12.5X27X1.6)

€ 2.00

31

0833131126
ref: 31

CIRCLIP,12 MM

€ 2.00

32

2552019C02
ref: 32

ARM,GEAR SHIFT LINK

€ 53.50

32A

2552647000
ref: 32A

COVER,DUST

€ 3.50

33

2552527A30
ref: 33

ROD,GEAR SHIFT LINK

€ 6.00

34

0914006011
ref: 34

NUT

€ 1.50

35

0831000067
ref: 35

NUT

€ 2.50

36

0150006257
ref: 36

BOLT

€ 2.00

37

2560019C04
ref: 37

LEVER ASSY,GEAR SHIFT

€ 81.00

38

2552647000
ref: 38

COVER,DUST

€ 3.50

38A

2565220C00
ref: 38A

RUBBER,GEAR SHIFT PEDAL

€ 8.00

39

0916012011
ref: 39

WASHER(12.5X20X1)

€ 1.50

40

0833131126
ref: 40

CIRCLIP,12 MM

€ 2.00

41

3772020C00
ref: 41

BASE ASSY,GEAR SHIFT TERMINAL

€ 88.50

42

0928035006
ref: 42

O RING(D:2.4,ID:35.5)

€ 4.00

43

0211275163
ref: 43

SCREW

€ 2.50

44

0920905011
ref: 44

PIN(5X15.5)

€ 2.00

45

0944004010
ref: 45

SPRING

€ 1.50

46

2561720A00
ref: 46

SHAFT,GEAR SHIFT LEVER

€ 37.00

47

0831610103
ref: 47

NUT

€ 2.00

48

3388527A01
ref: 48

GROMMET,LEADWIRE

€ 20.50

all assemblies
