CAM CHAIN

GSX600F KATANA 1997 (V) USA (E03)

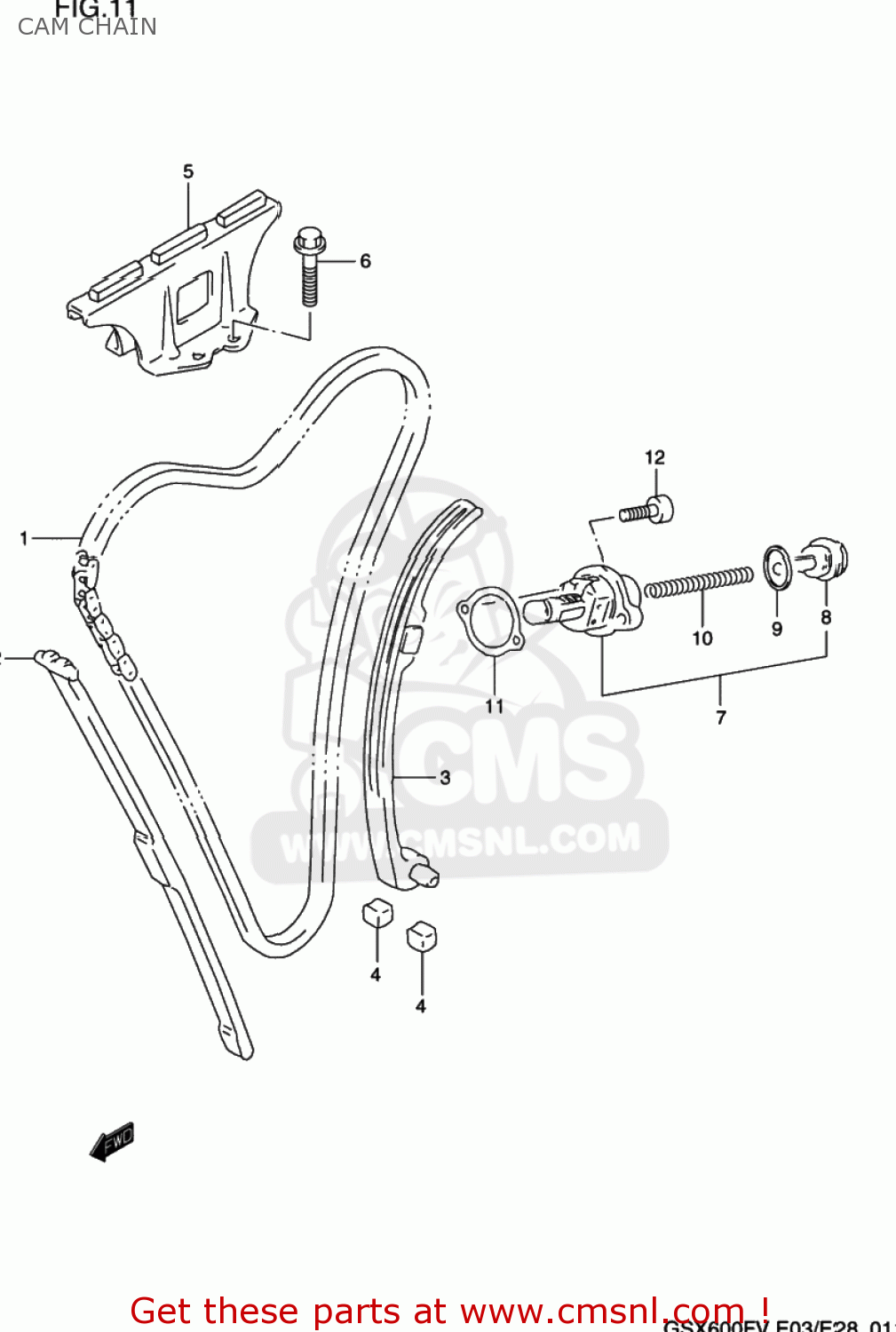

Cam chain diagram GSX600F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1276026E00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 140.50

1277126E00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 43.50

1281026E00
ref: 3

TENSIONER,CAM CHAIN

€ 62.00

1281434200
ref: 4

CUSHION,CAM CHAIN TENSIONER

€ 6.50

1278226E00
ref: 5

GUIDE,CAM CHAIN NO.2

€ 32.00

0155006163
ref: 6
01550-0616A

BOLT

€ 2.50

1283046E10
ref: 7

ADJUSTER ASSY,TENSIONER

€ 244.00

1283427A00
ref: 8

PLUG

€ 20.50

1283227A00
ref: 9

GASKET (NAS)

€ 5.50

1283326D10
ref: 10

SPRING

€ 5.00

1283727A10
ref: 11

GASKET,TENSIONER ADJUSTER (NAS)

€ 8.50

0713006253
ref: 12
07130-0625B

BOLT,CL.COVER

€ 3.00
