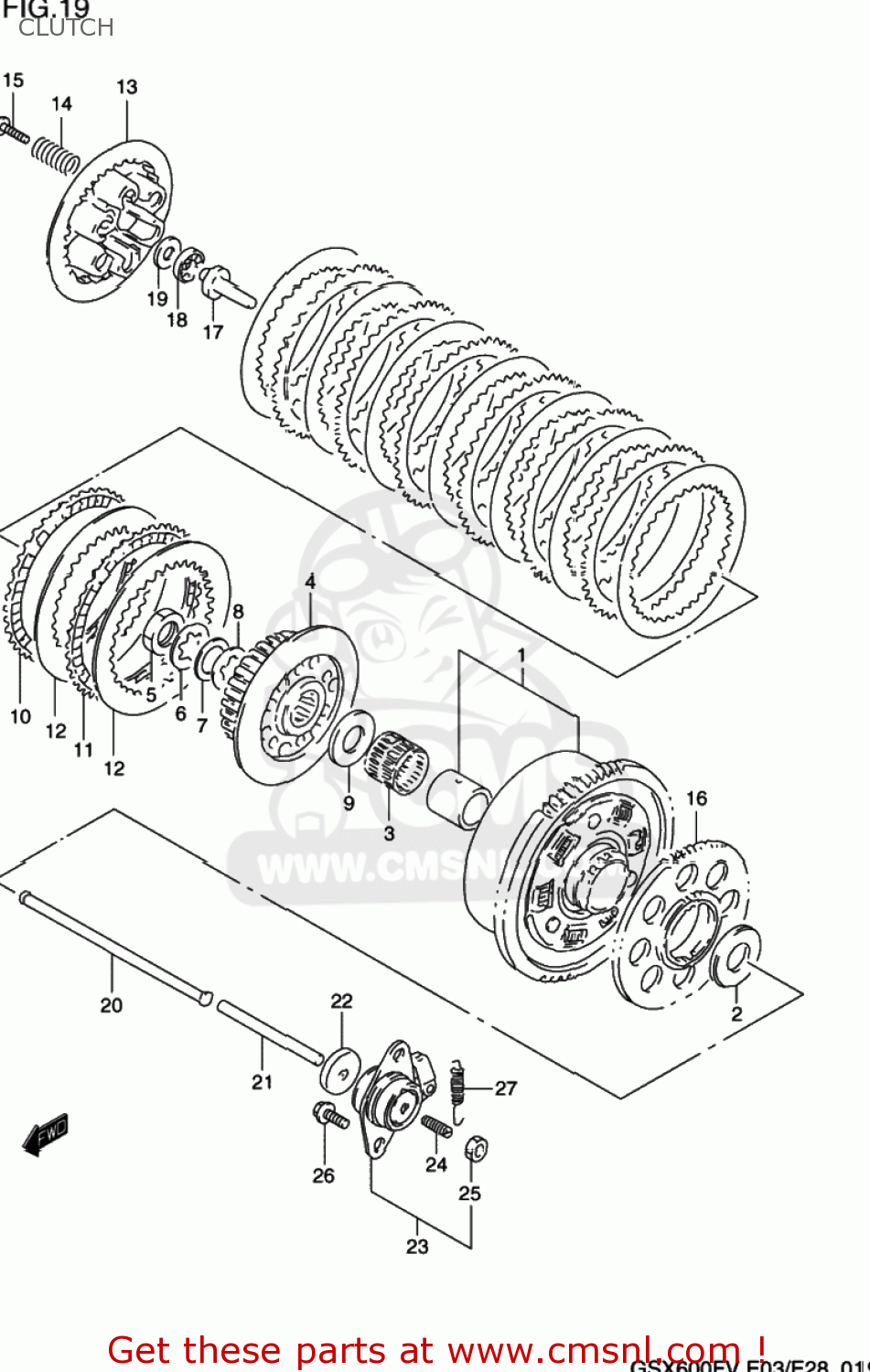

CLUTCH

ref

part #

description

quantity

1

2120007866
ref: 1
21200-07867

GEAR ASSEMBLY,PRIMARY DRIVE

€ 235.50

2

0916025037
ref: 2

WASHER(25X54X2.5)

€ 9.00

3

0926335017
ref: 3

BEARING(35X40X35.8)

€ 36.50

4

2141017D01
ref: 4

HUB,CLUTCH SLEEVE

€ 101.50

5

0914024012
ref: 5

NUT

€ 6.00

6

0916725007
ref: 6

WASHER,LOCK

€ 7.50

7

0916424006
ref: 7

WASHER

€ 4.00

8

0916725024
ref: 8

WASHER,LOCK

€ 3.00

9

0916025056
ref: 9

WASHER(25X50X2.5)

€ 9.50

10

2144120C00
ref: 10

PLATE,CLUTCH DRIVE (NAS)

€ 23.50

11

2144217C00
ref: 11

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 19.00

12

2145117C00
ref: 12

PLATE,CLUTCH DRIVEN (NAS)

€ 9.50

13

2146217E01
ref: 13

DISC,CLUTCH PRESSURE

€ 76.00

14

0944020020
ref: 14

SPRING

€ 8.50

15

0911606150
ref: 15

BOLT(6X25)

€ 2.50

16

2272117D01
ref: 16
22721-17D02

GEAR,GENERATOR DRIVE,N

€ 140.00

17

2312107A00
ref: 17
23121-31E00

PIECE,CLUTCH PUSH

€ 18.50

18

0926315003
ref: 18

BEARING(15X28X2)

€ 7.00

19

0916015045
ref: 19

WASHER(15.5X28X1)

€ 4.00

20

2311020C00
ref: 20

ROD,CLUTCH PUSH,R

€ 23.00

21

2311131301
ref: 21

ROD,CLUTCH PUSH,L

€ 14.50

22

0928506015
ref: 22

SEAL,OIL(6X34X5.5)

€ 8.50

23

2320031300
ref: 23

SCREW ASSY,CLUTCH RELEASE

€ 104.50

24

0913406010
ref: 24

SCREW(6X25)

€ 3.00

25

0831000067
ref: 25

NUT

€ 2.50

26

0155006163
ref: 26
01550-0616A

BOLT

€ 2.50

27

0944307038
ref: 27

SPRING

€ 4.00
