FRONT BRAKE HOSE

GSX600F KATANA 1997 (V) USA (E03)

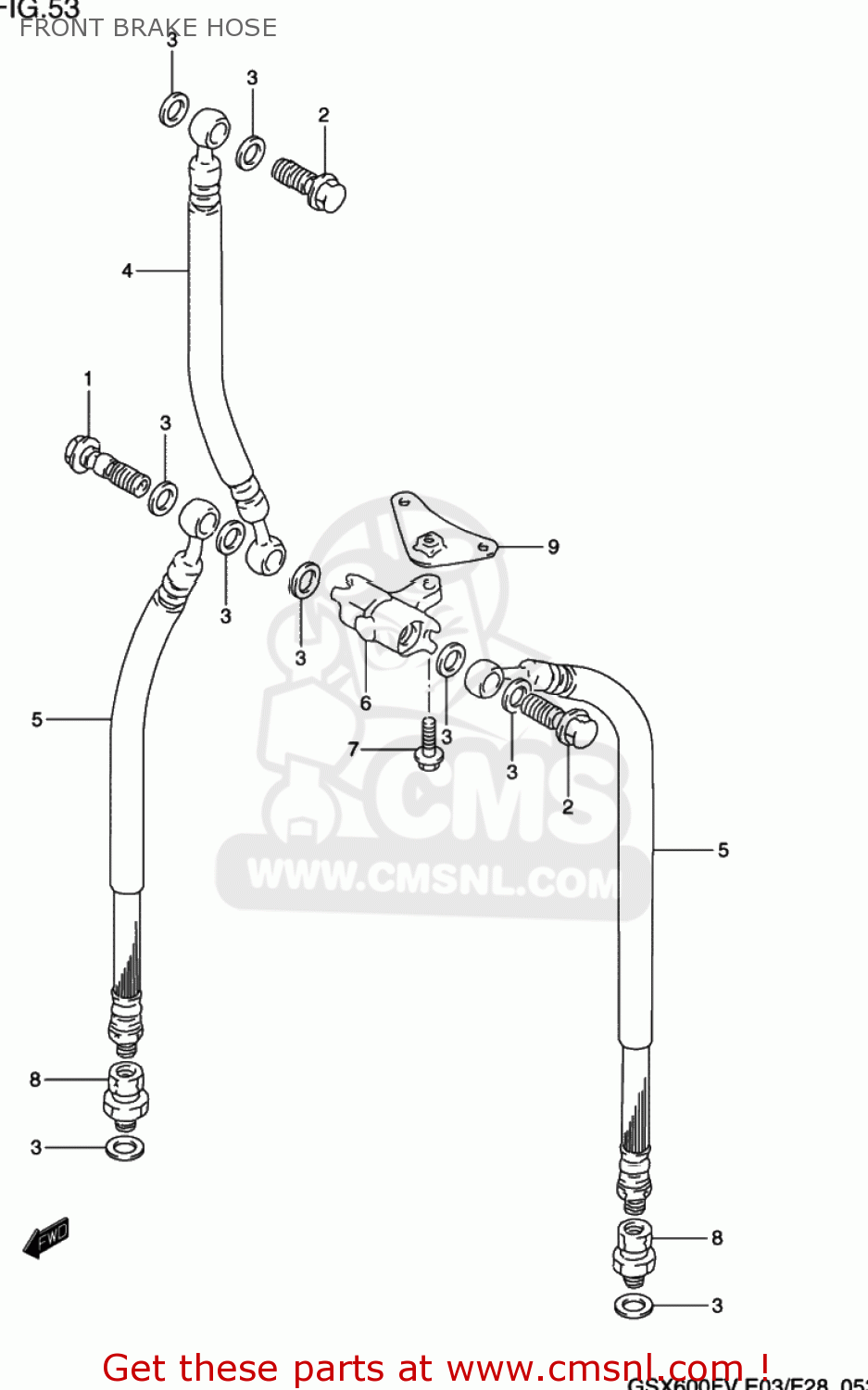

Front brake hose diagram GSX600F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

0936010043
ref: 1
09360-10063

BOLT UNION

€ 6.50

0936010041
ref: 2
09360-10061

BOLT UNION

€ 6.50

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

5948019C10
ref: 4

HOSE,FR BRAKE NO.1

€ 59.50

5924019C10
ref: 5

HOSE,FR BRAKE NO.2

€ 48.00

5949145001
ref: 6

JOINT,BRAKE HOSE

€ 29.00

0155006203
ref: 7
01550-0620A

BOLT

€ 2.50

5929043500
ref: 8

ADAPTER,BRAKE HOSE

€ 34.50

5939019C00
ref: 9

PLATE,FRONT BRAKE JOINT

€ 3.00
