HEADLAMP

GSX600F KATANA 1997 (V) USA (E03)

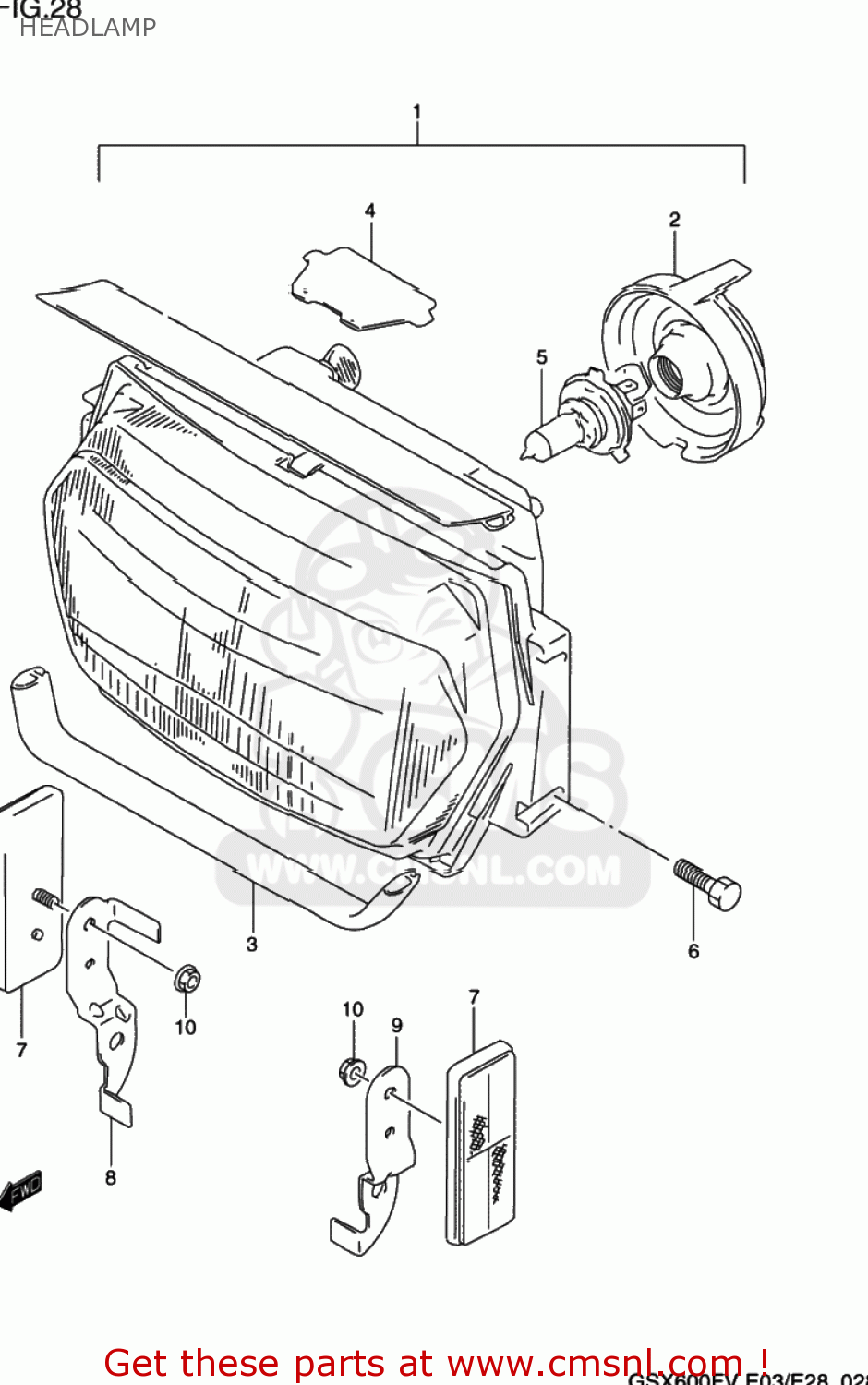

Headlamp diagram GSX600F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

HEADLAMP ASSY

€ 189.50

3517348B00
ref: 2

COVER,SOCKET

€ 10.50

3524319C00
ref: 3

GASKET,HEADLAMP (NAS)

€ 8.00

3524419C00
ref: 4

GASKET (NAS)

€ 3.50

0947112060
ref: 5

BULB(12V60/55W,H4)

€ 8.00

0158006203
ref: 6
01580-0620B

BOLT, REAR

€ 2.50

3595043431
ref: 7

REFLEX REFLECTOR,FR SIDE

€ 12.00

3595619C00
ref: 8

BRACKET,FR SIDE RR,R

€ 4.50

3595719C00
ref: 9

BRACKET,FR SIDE RR,L

€ 5.50

0831000053
ref: 10
08310-0005A

NUT

€ 2.50

all assemblies
