OIL COOLER

GSX600F KATANA 1997 (V) USA (E03)

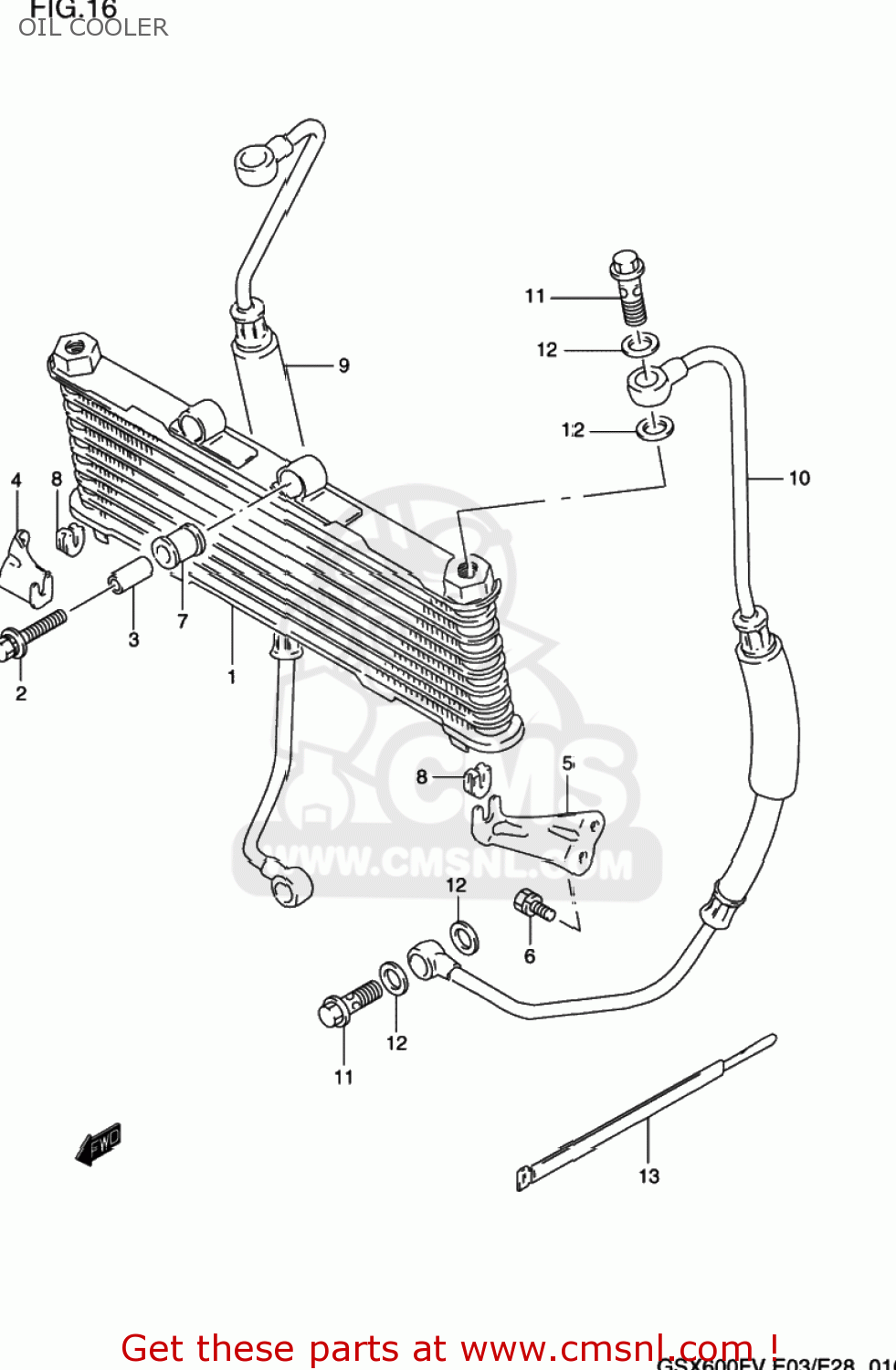

Oil cooler diagram GSX600F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1660019C01
ref: 1

COOLER ASSEMBLY,OIL

€ 916.50

0911808131
ref: 2

BOLT(8X40)

€ 3.50

0918008304
ref: 3

SPACER(8.5X12X25)

€ 7.00

1662119C00
ref: 4

BRACKET,OIL COOLER,R

€ 5.00

1662219C00
ref: 5

BRACKET,OIL COOLER,L

€ 7.00

0157006163
ref: 6
01570-0616A

BOLT

€ 2.50

1662927A01
ref: 7

CUSHION,OIL COOLER NO.1

€ 4.00

1662827A00
ref: 8

CUSHION,OIL COOLER NO.2

€ 3.00

1646019C02
ref: 9

HOSE,OIL COOLER,RIGHT

€ 137.50

1647019C02
ref: 10

HOSE,OIL COOLER,LEFT

€ 101.00

0936016002
ref: 11

BOLT UNION

€ 12.00

0916816002
ref: 12

GASKET(16X22X2) (NAS)

€ 2.00

0940725401
ref: 13

CLAMP(L:235)

€ 4.00
