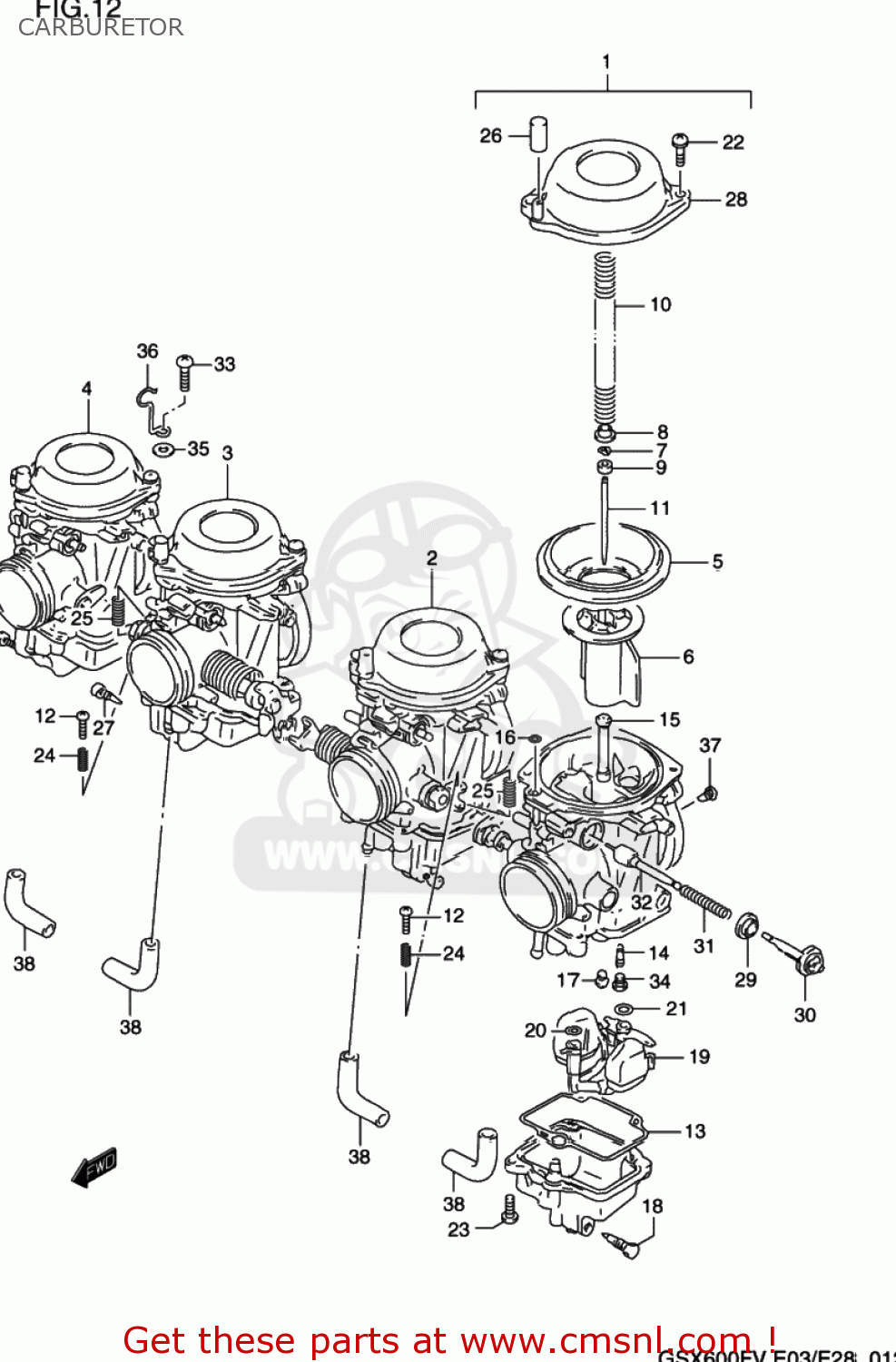

CARBURETOR

ref

part #

description

quantity

1-1

1320144C11
ref: 1-1

CARBURETOR ASSEMBLY,LEFT

€ 234.00

1-2

1320144CA1
ref: 1-2

CARBURETOR ASSEMBLY,LEFT

€ 269.00

2-1

1320244C11
ref: 2-1

CARBURETOR ASSY,ML

€ 234.00

2-2

1320244CA1
ref: 2-2

CARBURETOR ASSEMBLY,MIDDLE,LEFT

€ 269.00

3-1

1320344C11
ref: 3-1

CARBURETOR ASSY,ML

€ 234.00

3-2

1320344CA1
ref: 3-2

CARBURETOR ASSY,ML

€ 229.00

4-1

1320444C11
ref: 4-1

CARBURETOR ASSY,R

€ 234.00

4-2

1320444CA1
ref: 4-2

CARBURETOR ASSEMBLY,RIGHT

€ 269.00

5

1350717C01
ref: 5

DIAPHRAGM

€ 24.50

6

1350101D00
ref: 6

VALVE,PISTON

€ 69.00

7

1339440D20
ref: 7

E RING

€ 4.50

8

1338242A00
ref: 8

RING

€ 3.50

9

1338747010
ref: 9

RING

€ 7.50

10

1341742A00
ref: 10

SPRING

€ 6.00

11-1

1338344C00
ref: 11-1

NEEDLE,JET

€ 10.50

11-2

1338344C40
ref: 11-2

NEEDLE,JET(5F-11)

€ 0.00

12

1326744B00
ref: 12

SCREW

€ 3.50

13

1325844B00
ref: 13

GASKET,FLOAT CHAMBER (NAS)

€ 8.50

14

0949232006
ref: 14

JET,PILOT(32.5)

€ 8.50

15-1

0949400874
ref: 15-1

JET,NEEDLE(P-2M)

€ 34.50

15-2

0949400873
ref: 15-2

JET,NEEDLE(P-1M)

€ 34.50

16

1350917C00
ref: 16

O RING

€ 4.50

17

0949122015
ref: 17

JET,MAIN(112.5)

€ 11.00

18

1324724500
ref: 18

PLUG,DRAIN

€ 12.00

19-1

1325044C00
ref: 19-1
13250-13D00

FLOAT/NEEDLE VALVE ASSEMBLY

€ 124.50

19-2

1325044C10
ref: 19-2

FLOAT/NEEDLE VALVE ASSY

€ 0.00

20

1337446710
ref: 20

O RING

€ 4.50

21

1337444080
ref: 21
13374-35C00

O-RING,NEEDLE VALVE

€ 6.00

22

0211275163
ref: 22
02112-7516A

SCREW

€ 2.50

23

0211205127
ref: 23

SCREW

€ 2.50

24

1327144B00
ref: 24

SPRING

€ 4.00

25

1326817C10
ref: 25

SPRING

€ 7.00

26

1350817C00
ref: 26

CAP

€ 4.50

27

1324713A00
ref: 27
13247-02340

SCREW,DRAIN

€ 5.50

28

1350201D00
ref: 28

COVER,DIAPHRAGM

€ 36.00

29

1341817C00
ref: 29

CAP,STARTER

€ 5.00

30

1341817C10
ref: 30

HOLDER,GUIDE

€ 14.00

31

1341709110
ref: 31

SPRING

€ 6.00

32

1341101D00
ref: 32

PLUNGER ASSY

€ 28.50

33

0211205164
ref: 33

SCREW

€ 2.00

34

1335734C00
ref: 34

PLUG

€ 4.50

35

0832201053
ref: 35
08322-0105A

WASHER

€ 2.50

36

1367120C20
ref: 36

CLIP

€ 5.50

37-1

0949331001
ref: 37-1

JET,AIR(1.55)

€ 12.00

37-2

0949330004
ref: 37-2

JET,PILOT AIR(1.5)

€ 8.50

38

1368448B10
ref: 38

HOSE

€ 19.50

all assemblies
