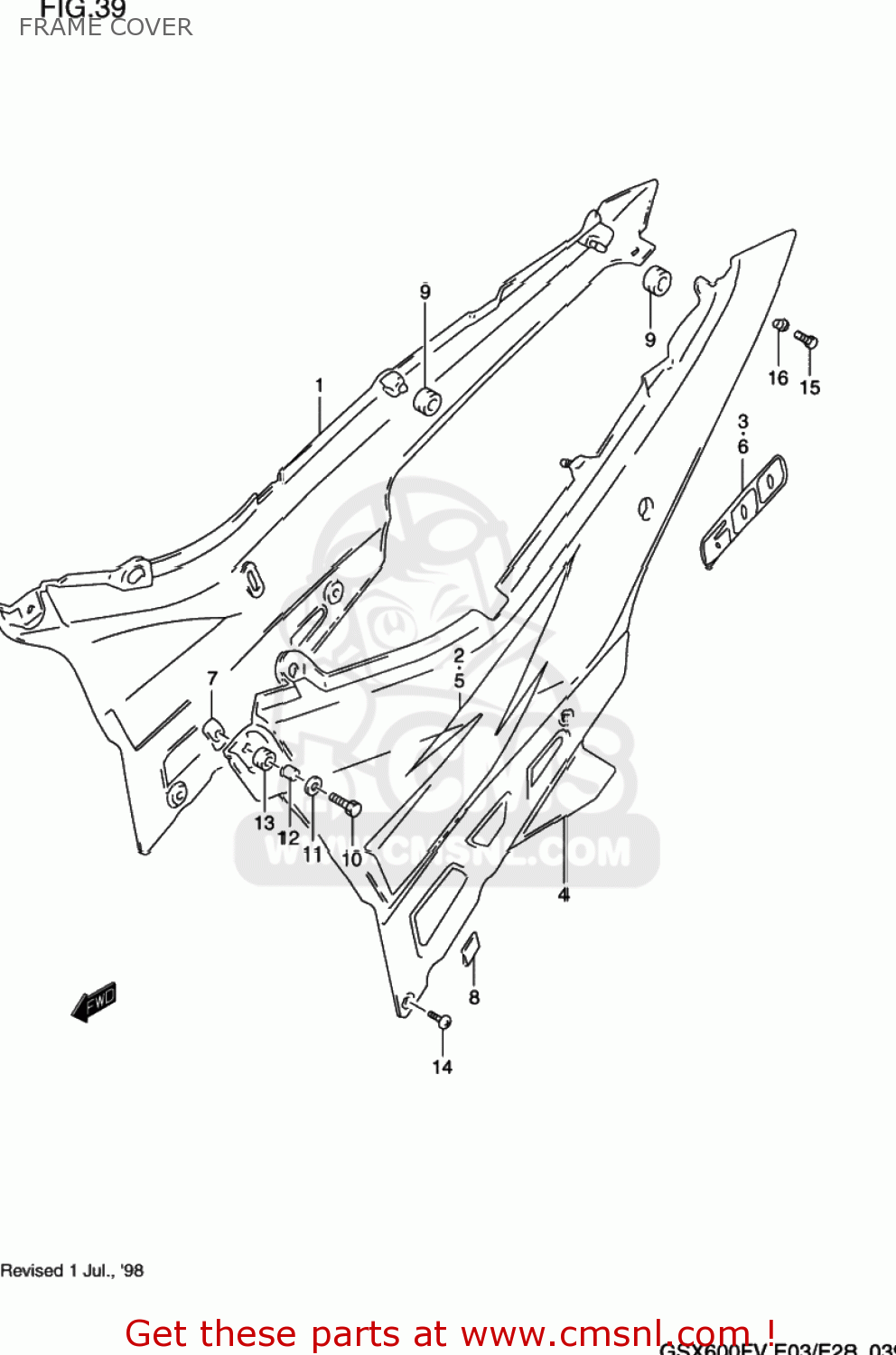

FRAME COVER

ref

part #

description

quantity

1-1

4711043CB0G3K
ref: 1-1
47111-19C01

COVER COMP,FRAME,RIGHT

€ 275.50

1-2

4711043CB0G3L
ref: 1-2

COVER COMP,FRAME,RIGHT

€ 299.00

2-1

6813543C20G3V
ref: 2-1

TAPE,FRAME COVER,RIGHT

€ 33.00

2-2

6813543C20G3W
ref: 2-2

TAPE,FRAME COVER,RIGHT

€ 35.50

3-1

6813143C30G3Z
ref: 3-1

EMBLEM,FRAME COVER

€ 9.50

3-2

6813143C30G4A
ref: 3-2

EMBLEM,FRAME COVER

€ 10.50

4-1

4721043CB0G3K
ref: 4-1

COVER,FRAME,L

€ 284.50

4-2

4721043CB0G3L
ref: 4-2

COVER COMP,FRAME,LEFT

€ 274.00

5-1

6814543C20G3V
ref: 5-1

TAPE,FRAME COVER,LEFT

€ 33.00

5-2

6814543C20G3W
ref: 5-2

TAPE,FRAME COVER,LEFT

€ 33.00

6-1

6813143C30G3Z
ref: 6-1

EMBLEM,FRAME COVER

€ 9.50

6-2

6813143C30G4A
ref: 6-2

EMBLEM,FRAME COVER

€ 10.50

7

4715319C01
ref: 7

PLATE,FRAME COVER

€ 4.00

8

4716119C00
ref: 8

CUSHION,FRAME COVER

€ 1.50

9

0932008018
ref: 9

CUSHION

€ 4.00

10

0913906068
ref: 10

SCREW(6X20)

€ 3.00

11

0916006109
ref: 11

WASHER(6.5X18X1.6)

€ 2.00

12

0918006263
ref: 12

SPACER(6.5X9X9)

€ 2.00

13

0932009016
ref: 13

CUSHION

€ 2.50

14

0913905038
ref: 14

SCREW(5X15.3)

€ 2.00

19

0214205123
ref: 19
02142-0512A

SCREW 5X12

€ 1.50

20

0916905009
ref: 20

WASHER

€ 3.50

all assemblies
