STAND

GSX600F KATANA 1997 (V) USA (E03)

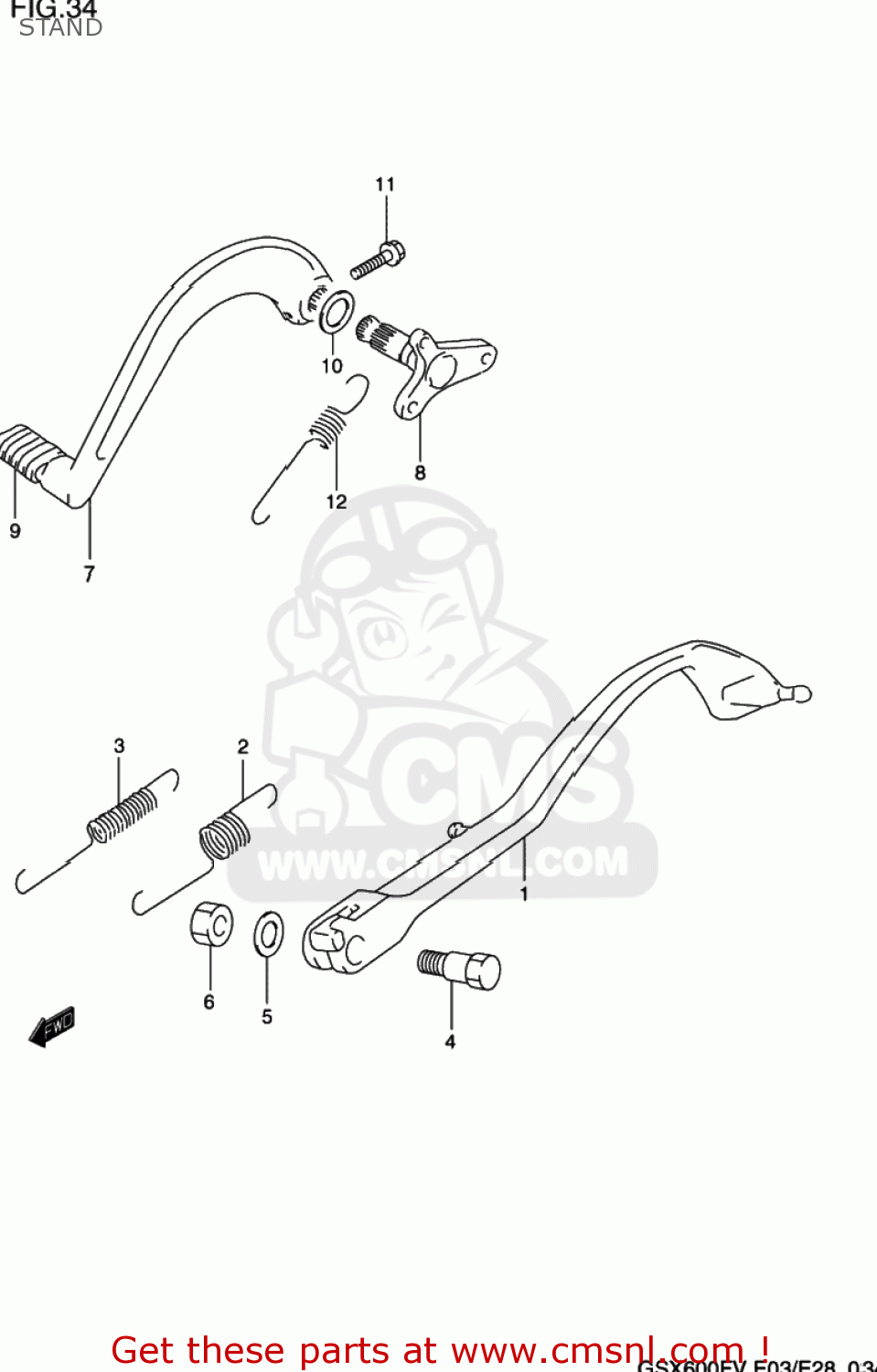

Stand diagram GSX600F KATANA 1997 (V) USA (E03)

STAND GSX600F KATANA 1997 (V) USA (E03)

STAND GSX600F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231019C01
ref: 1

STAND,PROP

€ 68.00

2

0944312036
ref: 2

SPRING

€ 7.50

3

0944319010
ref: 3

SPRING

€ 6.00

4

0911110036
ref: 4

BOLT(10X38)

€ 5.50

5

0822112224
ref: 5

SHIM

€ 2.00

6

0915910097
ref: 6

NUT

€ 5.00

7

4311019C02
ref: 7

PEDAL,BRAKE

€ 115.00

8

4312019C00
ref: 8

BOSS,BRAKE ROD

€ 30.00

9

4315104701
ref: 9

RUBBER,BRAKE PEDAL

€ 6.00

10

4321204A00
ref: 10

WASHER,BRAKE PEDAL

€ 2.00

11

0154706253
ref: 11
01547-0625B

SCREW

€ 2.50

12

0944313028
ref: 12

SPRING

€ 20.50
