FRONT MASTER CYLINDER

GSX600F KATANA 1997 (V) USA (E03)

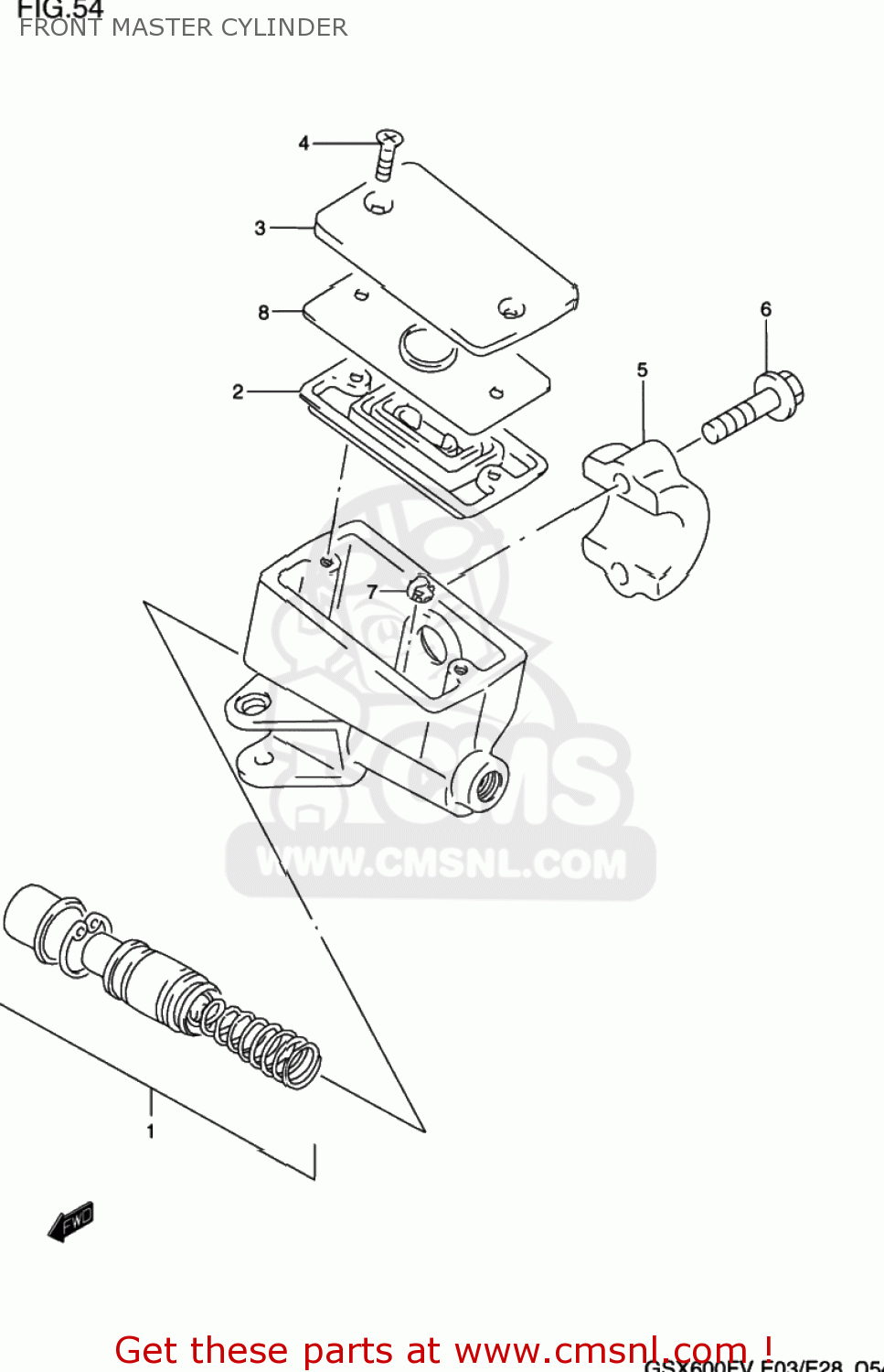

Front master cylinder diagram GSX600F KATANA 1997 (V) USA (E03)

FRONT MASTER CYLINDER GSX600F KATANA 1997 (V) USA (E03)

FRONT MASTER CYLINDER GSX600F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity



5960020C00
ref:

CYLINDER ASSY,FR MASTER

€ 262.50

1

5960045860
ref: 1

PISTON & CUP SET

€ 44.00

2

5966749460
ref: 2

5966749460

3

5966941C00
ref: 3

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967119B00
ref: 5

HOLDER

€ 18.50

6

5967519C00
ref: 6

BOLT(6X25)

€ 3.00

7

5966448B00
ref: 7

PROTECTOR

€ 8.00

8

5966841C00
ref: 8

PLATE,DIAPHRAGM

€ 8.00
