STARTING MOTOR

GSX600F KATANA 1997 (V) USA (E03)

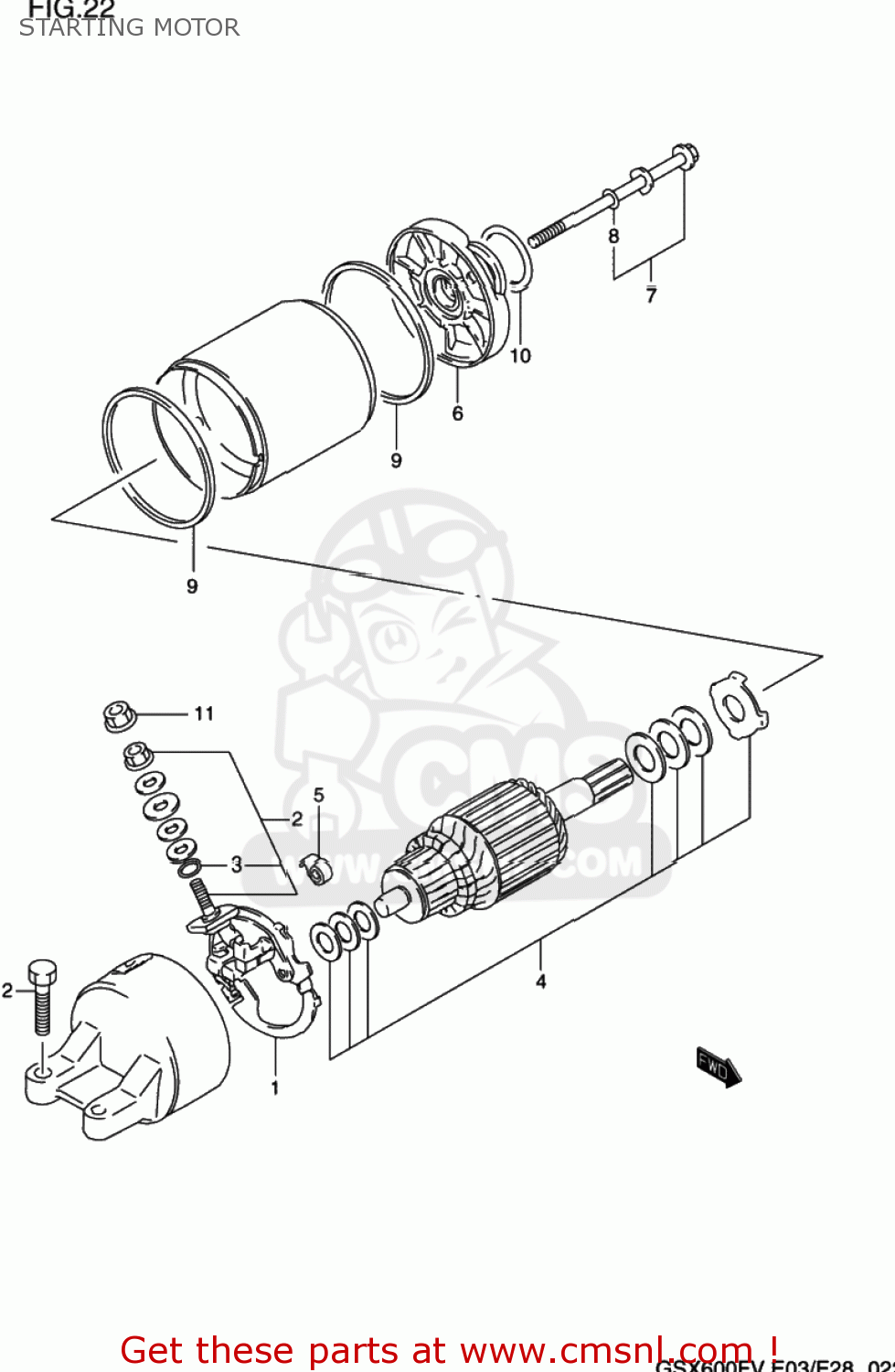

Starting motor diagram GSX600F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

3110019C02
ref:
31100-19C03

MOTOR ASSEMBLY,STARTING

€ 700.00

3113219B10
ref: 1

HOLDER SET,BRUSH

€ 29.00

3113019B10
ref: 2

TERMINAL SET,BRUSH,PLUS

€ 27.50

3114349040
ref: 3

O RING

€ 3.00

3117019B10
ref: 4

SHIM SET,STARTING MOTOR

€ 8.00

3113531300
ref: 5

SPRING,BRUSH

€ 4.00

3115019B10
ref: 6

BRACKET ASSY,FR

€ 107.00

3128019B10
ref: 7

BOLT SET,STARTING MOTOR

€ 8.50

3114349040
ref: 8

O RING

€ 3.00

3126431300
ref: 9
31264-32E00

O RING

€ 7.50

0928024003
ref: 10

O RING(D:3,ID:24.5)

€ 2.00

0836135068
ref: 11
08361-3506A

NUT

€ 2.00

0912806024
ref: 12
09103-06212

SCREW (6X25)

€ 2.50

all assemblies
