REAR CALIPER

GSX600F KATANA 1997 (V) USA (E03)

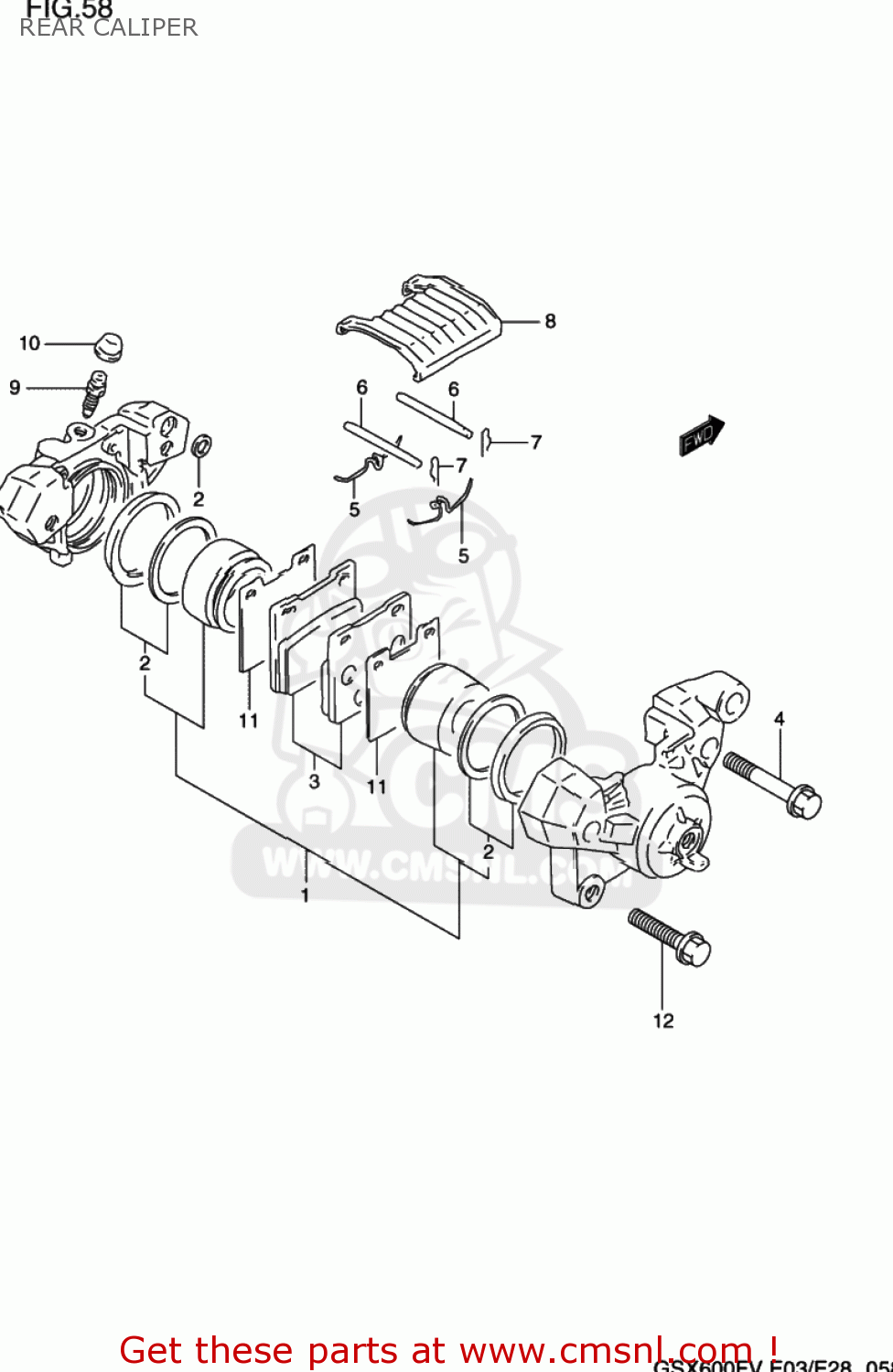

Rear caliper diagram GSX600F KATANA 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

6910034C03
ref:
69100-34C04

CALIPER ASSEMBLY,REAR

€ 548.00

6910032810
ref: 1
69100-05851

PISTON SET

€ 122.50

6910032820
ref: 2
69101-05840

SEAL SET,PISTON

€ 26.00

6910034860
ref: 3

PAD SET (NAS)

€ 43.00

5914516700
ref: 4

BOLT,HOUSING

€ 8.00

5914316700
ref: 5

SPRING

€ 7.50

6914145000
ref: 6

PIN,PAD

€ 6.50

6914245000
ref: 7

CLIP,PAD PIN

€ 4.50

5915116701
ref: 8

COVER

€ 13.50

5912118410
ref: 9

BLEEDER

€ 8.00

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

5937133410
ref: 11

SHIM,PAD

€ 15.00

0155008303
ref: 12
01550-0830A

BOLT

€ 3.00
