CUSHION LEVER (MODEL E)

GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

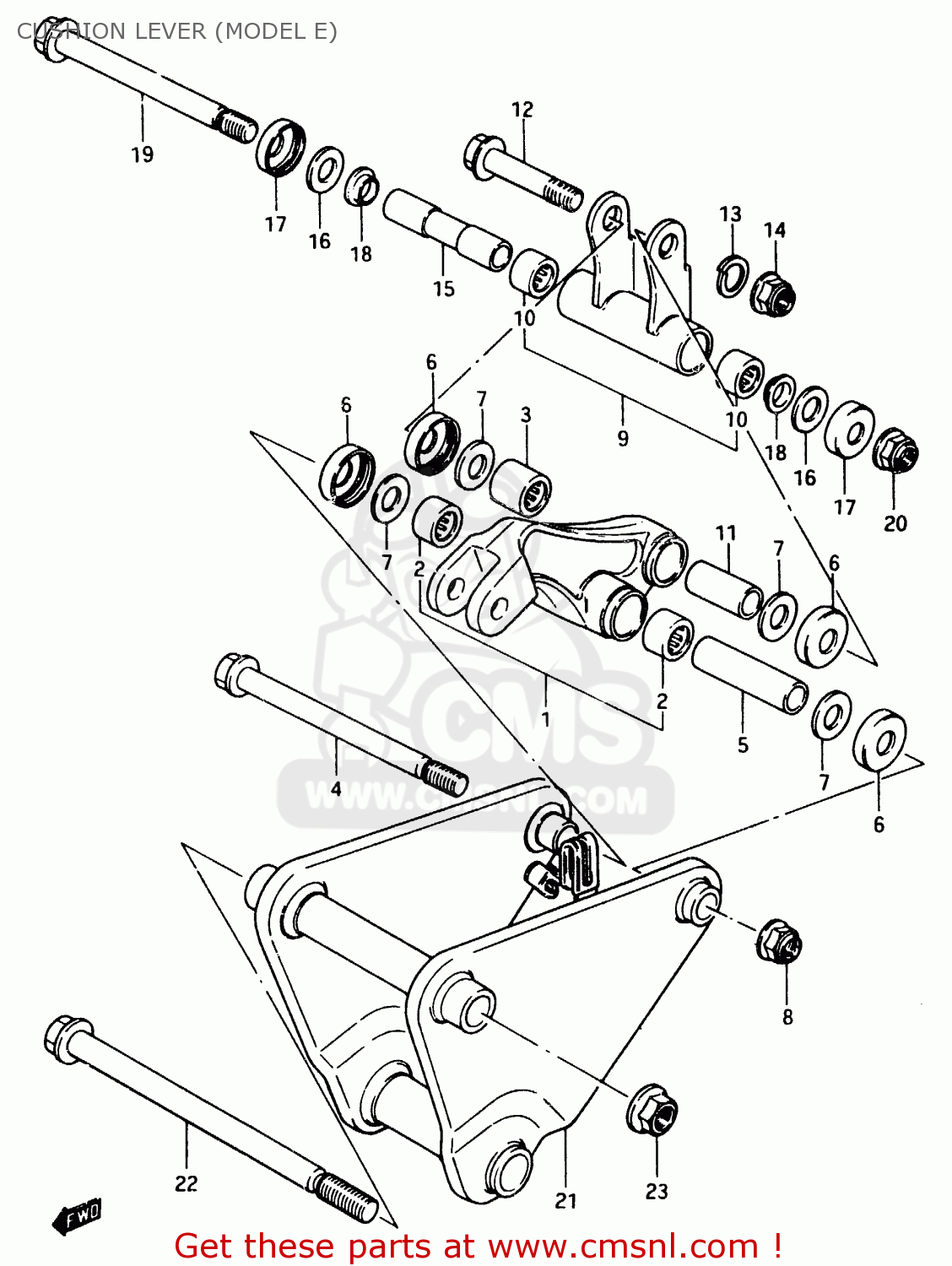

Cushion lever (model e) diagram GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

CUSHION LEVER (MODEL E) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
CUSHION LEVER (MODEL E) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
CUSHION LEVER (MODEL E) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
6260033811
ref: 1
LEVER SET,REAR CUSHION
€ 0.00
2
0926317011
ref: 2
ROLLER BEARING (17X24X2
0926317011
€ 13.50
3
0926317020
ref: 3
ROLLER BEARING (17X24X25)
0926317020
€ 19.00
4
6262131300
ref: 4
SHAFT,RR CUSHION LEVER
€ 15.50
5
6262315500
ref: 5
SPACER,REAR CUSHION LEVER
€ 11.50
6
6126241500
ref: 6
COVER,RR SWGARM DUST SEAL
6126241500
€ 7.50
7
0821112281
ref: 7
WASHER
0821112281
€ 2.00
8
0831931125
ref: 8
NUT 12MM
€ 3.00
9
6260031810
ref: 9
ROD SET,REAR CUSHION
€ 47.50
10
0926317011
ref: 10
ROLLER BEARING (17X24X2
0926317011
€ 13.50
11
6264615500
ref: 11
SPACER,RR CUSHION LEVER ROD UP
6264615500
€ 11.50
12
6264815500
ref: 12
BOLT, UPPER
€ 7.00
13
0832121125
ref: 13
WASHER
€ 2.50
14
0831921125
ref: 14
NUT
0831921125
€ 3.50
15
6265615500
ref: 15
SPACER,RR CUSHION LVR ROD LOW
6265615500
€ 187.00
16
0821112281
ref: 16
WASHER
0821112281
€ 2.00
17
6126241500
ref: 17
COVER,RR SWGARM DUST SEAL
6126241500
€ 7.50
18
6262631300
ref: 18
SPACER,REAR CUSHION ROD
€ 8.00
19
6265731301
ref: 19
BOLT,CUSHION ROD
6265731301
€ 19.00
20
0831931125
ref: 20
NUT 12MM
€ 3.00
21
6241031310
ref: 21
BRACKET,REAR SHOCK ABSORBER
€ 0.00
22
6241331300
ref: 22
SHAFT,SHOCK ABSORBER BRACKET
€ 0.00
23
0831616125
ref: 23
NUT
€ 2.50
