FRAME COVER (GSX750ESD)

GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

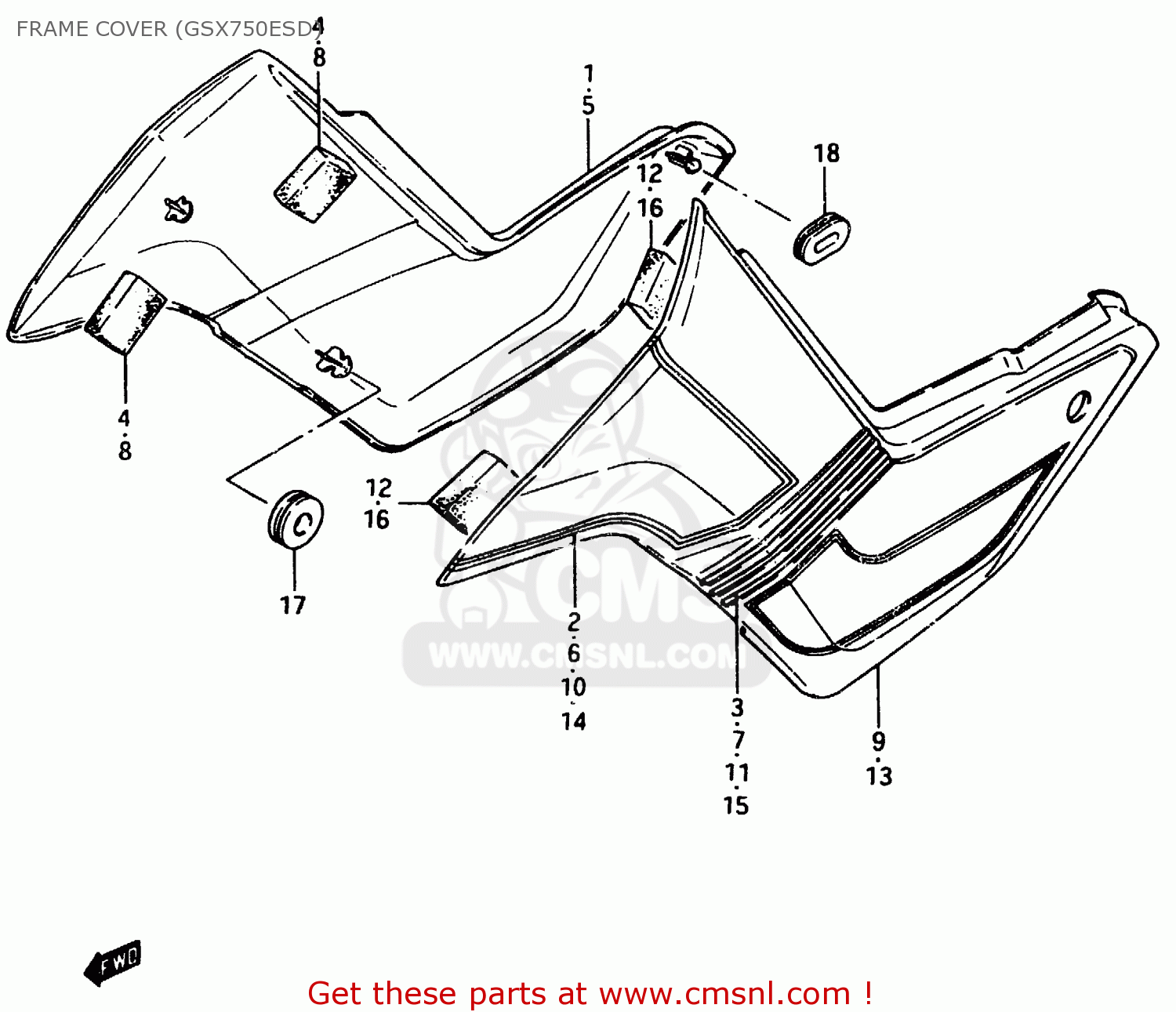

Frame cover (gsx750esd) diagram GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

FRAME COVER (GSX750ESD) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
FRAME COVER (GSX750ESD) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
FRAME COVER (GSX750ESD) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
471103132094F
ref: 1
COVER, FRAME RH
€ 66.00
2
681303132094E
ref: 2
TAPE SET, FRAME COVER RH
€ 19.50
3
6813431300
ref: 3
DENT,FRAME COVER,RIGHT
€ 2.50
4
4556244410
ref: 4
CUSHION
€ 2.50
5
471103132094S
ref: 5
COVER,FRAME,R
€ 66.00
6
681303132094T
ref: 6
TAPE SET, FRAME COVER RH
€ 0.00
7
6813431300
ref: 7
DENT,FRAME COVER,RIGHT
€ 2.50
8
4556244410
ref: 8
CUSHION
€ 2.50
9
472103132094F
ref: 9
COVER, FRAME LH
€ 75.50
10
681403132094E
ref: 10
TAPE SET, FRAME COVER LH
€ 26.50
11
6814431300
ref: 11
DENT,FRAME COVER,LEFT
€ 3.00
12
4556244410
ref: 12
CUSHION
€ 2.50
13
472103132094S
ref: 13
COVER, FRAME LH
€ 75.50
14
681403132094T
ref: 14
TAPE SET, FRAME COVER LH
€ 26.00
15
6814431300
ref: 15
DENT,FRAME COVER,LEFT
€ 3.00
16
4556244410
ref: 16
CUSHION
€ 2.50
17
0932008018
ref: 17
CUSHION
0932008018
€ 4.00
18
0932908003
ref: 18
CUSHION
0932908003
€ 3.50
