FRONT DAMPER (MODEL D)

GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

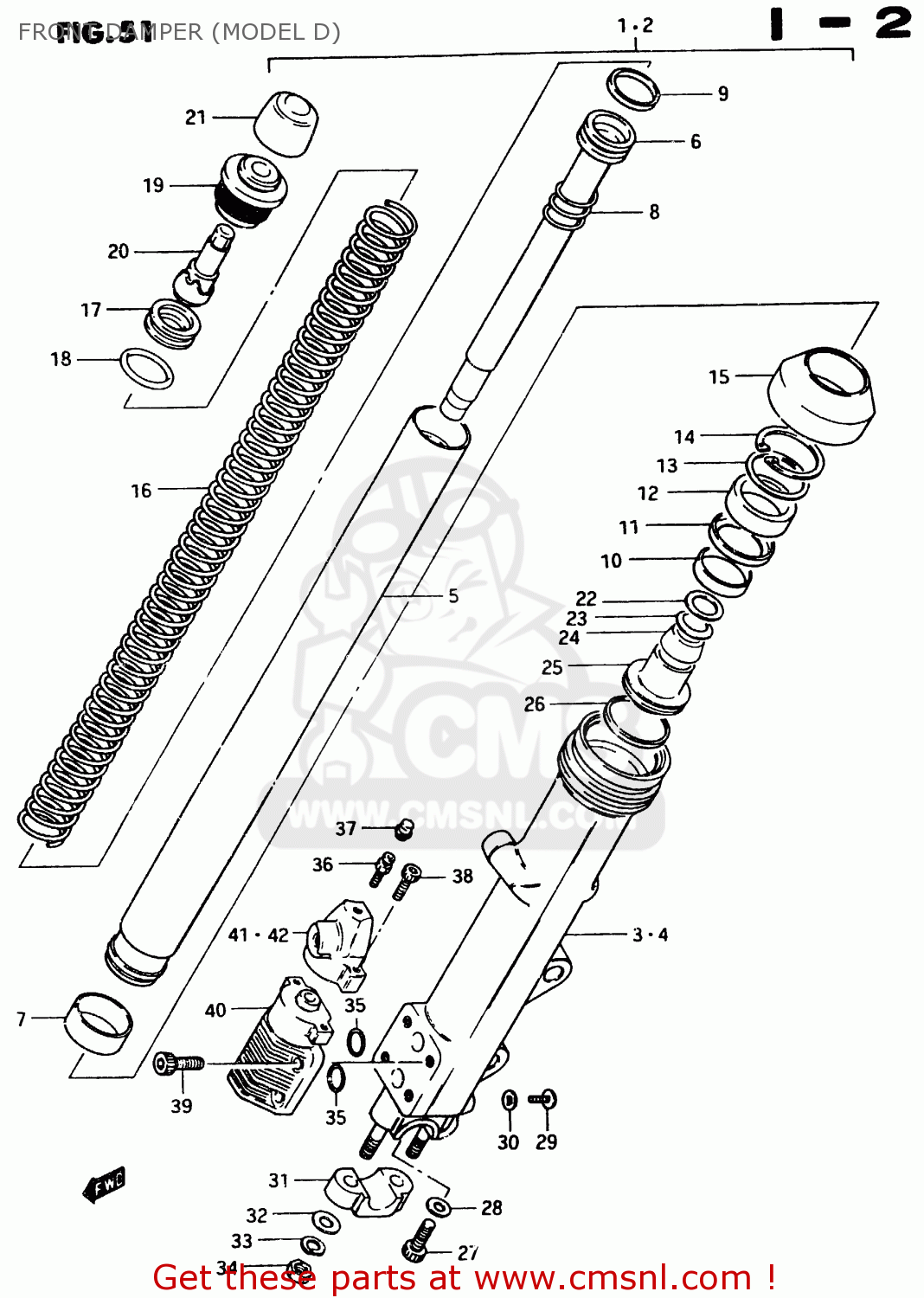

Front damper (model d) diagram GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

FRONT DAMPER (MODEL D) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
FRONT DAMPER (MODEL D) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
FRONT DAMPER (MODEL D) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
5110331350
ref: 1
DAMPER ASSY, RH
€ 508.50
2
5110431350
ref: 2
DAMPER ASSY, LH
€ 634.00
3
511303130015T
ref: 3
TUBE,OUTER,RIGHT
€ 255.00
4
511403130015T
ref: 4
TUBE,OUTER,LEFT
511403130015T
€ 127.50
5
5111031310
ref: 5
INNER TUBE
€ 246.50
6
5114631350
ref: 6
CYLINDER
€ 37.50
7
5112131300
ref: 7
PISTON
5112131300
€ 18.50
8
5117734210
ref: 8
SPRING,FORK REBOUND
€ 7.00
9
5119634210
ref: 9
RING,PISTON
5119634210
€ 6.50
10
5115231300
ref: 10
BUSHING,GUIDE
5115231300
€ 22.50
11
5116834210
ref: 11
SPACER,SEAL
€ 5.50
12
5115309310
ref: 12
OIL SEAL,FRONT FORK
5115309310
€ 15.00
13
5115834320
ref: 13
RING,BACKUP
5115834320
€ 4.00
14
5155634320
ref: 14
CIRCLIP,INNTERNAL
5155634320
€ 7.00
15
5157145200
ref: 15
BOOT
€ 20.50
16
5117131350
ref: 16
SPRING
€ 32.50
17
5117234300
ref: 17
SEAT,FRONT FORK SPRING
5117234300
€ 7.50
18
5111734210
ref: 18
O RING
5111734210
€ 5.00
19
5135134301
ref: 19
CAP,FORK INNER TUBE
5135134301
€ 33.00
20
5118545451
ref: 20
ADJUSTER,SPRING
5118545451
€ 16.00
21
5118945450
ref: 21
CAP
5118945450
€ 7.00
22
5112634310
ref: 22
VALVE
5112634310
€ 2.50
23
5112734310
ref: 23
SPRING,VALVE
5112734310
€ 3.00
24
5112534310
ref: 24
VALVE,OIL LOCK PIEACE
€ 7.00
25
5119534370
ref: 25
PIECE,OIL LOCK
5119534370
€ 24.00
26
5112334320
ref: 26
RING,PISTON
5112334320
€ 14.50
27
5114748130
ref: 27
BOLT(8X27)
5114748130
€ 3.50
28
5114831030
ref: 28
GASKET (NAS)
5114831030
€ 4.00
29
0211204068
ref: 29
SCREW 4X6
0211204068
€ 2.00
30
5118333030
ref: 30
GASKET (NAS)
5118333030
€ 6.50
31
5113244040291
ref: 31
TO 51132-44040-15T
HOLDER,AXLE
5113244040291
€ 38.50
32
0832221085
ref: 32
WASHER
€ 1.50
33
0832121084
ref: 33
WASHER,LOCK,8.
0832121084
€ 2.50
34
0831011085
ref: 34
NUT
€ 1.50
35
5179911420
ref: 35
O RING,FR FORK
€ 2.00
36
5177811420
ref: 36
BREATHER
5177811420
€ 8.50
37
5177911420
ref: 37
CAP
5177911420
€ 4.50
38
5179734310
ref: 38
BOLT
€ 2.50
39
5179634310
ref: 39
BOLT
5179634310
€ 2.50
40
5179031300
ref: 40
VALVE SET,MODULATOR
5179031300
€ 210.50
41
5178031300
ref: 41
PLUNGER SET,MODULATOR,RIGHT
€ 92.00
42
5177031300
ref: 42
PLUNGER SET,MODULATOR,LEFT
€ 76.50
