TURN SIGNAL LAMP (E1, E6, E24, E27, E30)

GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

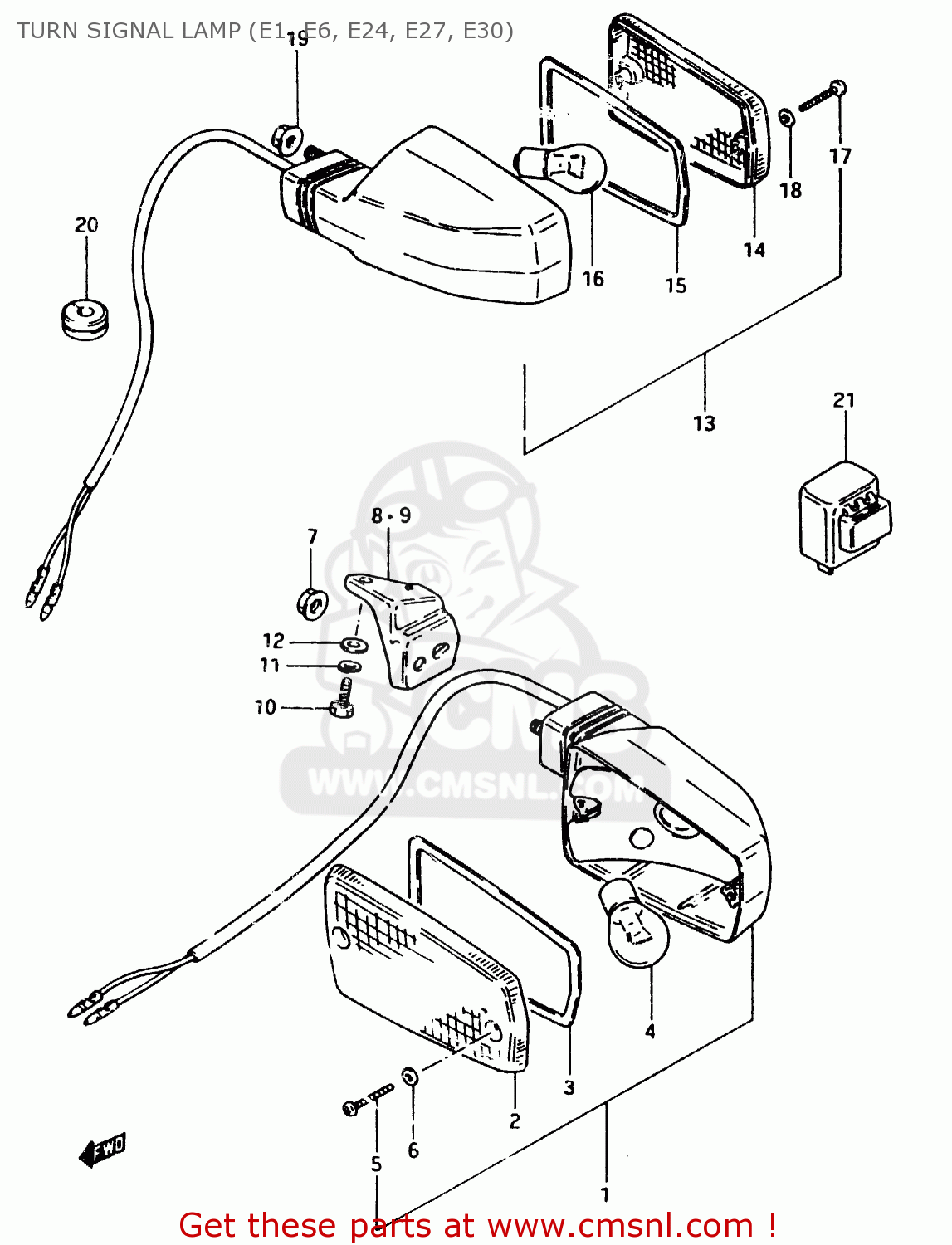

Turn signal lamp (e1, e6, e24, e27, e30) diagram GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

TURN SIGNAL LAMP (E1, E6, E24, E27, E30) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
TURN SIGNAL LAMP (E1, E6, E24, E27, E30) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
TURN SIGNAL LAMP (E1, E6, E24, E27, E30) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
3560143411
ref: 1
MODEL D
LAMP ASSEMBLY,FRONT TURN SIGNAL
3560143411
€ 98.50
1
3560100A10
ref: 1
MODEL E
LAMP ASSY, FRONT TURN SIGNAL
3560100A10
€ 77.50
2
3561243410
ref: 2
LENS
3561243410
€ 11.00
3
3561343410
ref: 3
GASKET (NAS)
3561343410
€ 3.50
4
0947112006
ref: 4
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
5
0321104208
ref: 5
SCREW
0321104208
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0831626086
ref: 7
NUT
€ 1.50
8
3567131300
ref: 8
GSX750ESD/ESE/EFE
BRACKET,FRONT TURN SIGNAL
3567131300
€ 4.50
9
3568131300
ref: 9
GSX750ESD/ESE/EFE
BRACKET,FRONT TURN SIGNAL
3568131300
€ 5.50
10
0110708165
ref: 10
BOLT
€ 2.00
11
0832121085
ref: 11
LOCK WASHER
€ 2.50
12
0832211085
ref: 12
WASHER,8.5X16X
€ 1.50
13
3560331311
ref: 13
MODEL D
LAMP ASSY, REAR TURN SIGNAL
€ 41.50
13
3560331300
ref: 13
MODEL E
LAMP ASSY REAR
€ 77.50
14
3561243410
ref: 14
LENS
3561243410
€ 11.00
15
3561343410
ref: 15
GASKET (NAS)
3561343410
€ 3.50
16
0947112006
ref: 16
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
17
0321104208
ref: 17
SCREW
0321104208
€ 1.50
18
3562743010
ref: 18
GASKET (NAS)
3562743010
€ 2.00
19
0831626086
ref: 19
NUT
€ 1.50
20
0930805011
ref: 20
GROMMET
0930805011
€ 2.00
21
3861031310
ref: 21
FROM 38610-45031
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
