Buy Suzuki GSX Parts Online


LEFT HANDLE SWITCH

GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

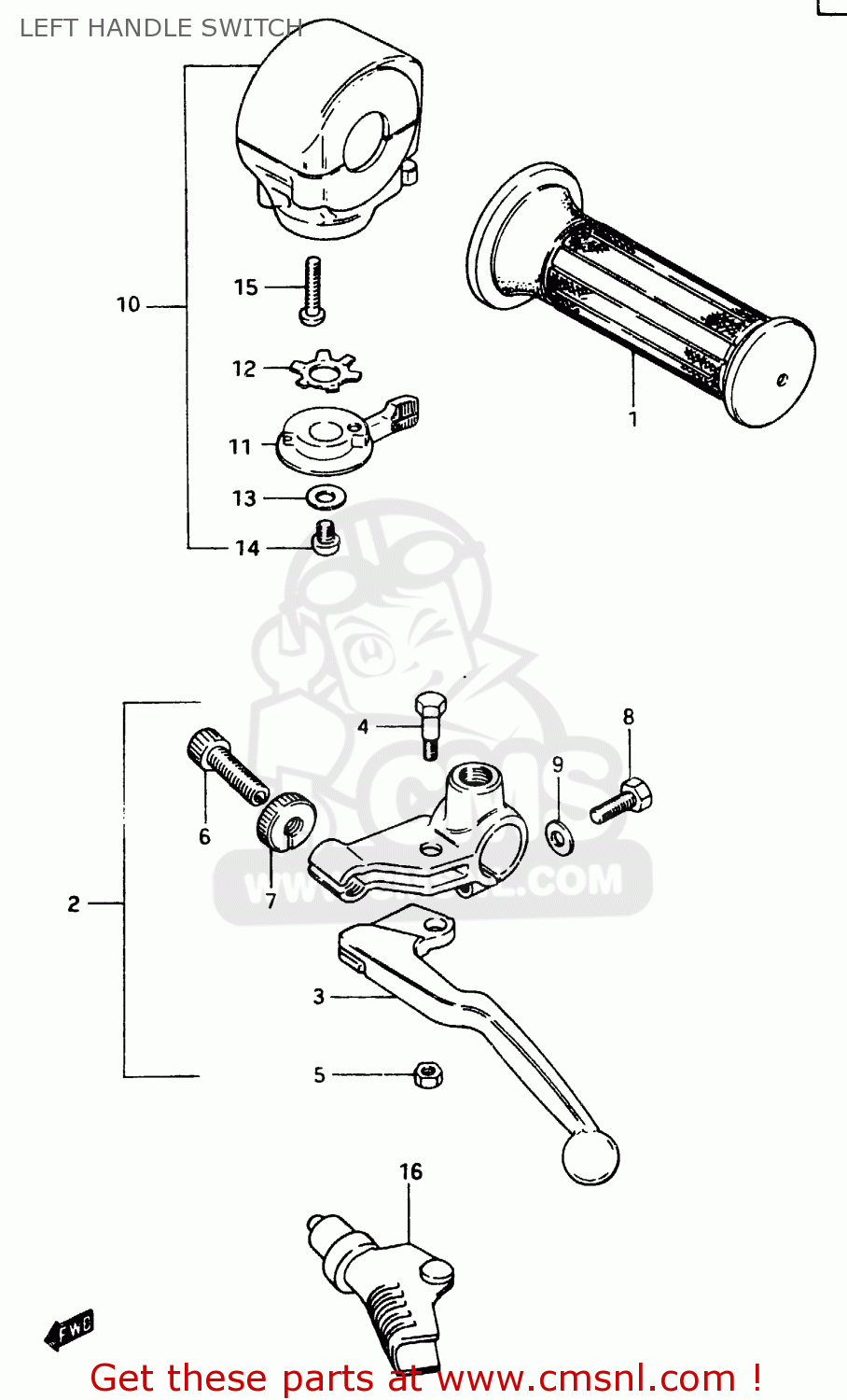

Left handle switch diagram GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

LEFT HANDLE SWITCH GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
LEFT HANDLE SWITCH GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
LEFT HANDLE SWITCH GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
5721149500
ref: 1
GRIP,L
5721149500
€ 9.00
2
5750049121
ref: 2
LEVER ASSEMBLY,CLUTCH
5750049121
€ 49.50
3
5762049101
ref: 3
LEVER,CLUTCH
5762049101
€ 28.50
4
5743149110
ref: 4
BOLT,LEVER PIVOT
5743149110
€ 5.00
5
0831921068
ref: 5
NUT 6MM
0831921068
€ 2.00
6
5744144400
ref: 6
ADJUSTER,CABLE
5744144400
€ 5.50
7
5744244400
ref: 7
NUT,CABLE ADJUSTER LOCK
5744244400
€ 4.00
8
5745149110
ref: 8
BOLT,CLUTCH LEVER HOLDER
€ 2.00
9
0832221064
ref: 9
WASHER
0832221064
€ 2.00
10
3740045151
ref: 10
SWITCH ASSY, HANDLE LH
€ 161.00
10
3740045161
ref: 10
E34,E53
SWITCH ASSY, HANDLE LH
€ 130.00
10
3740045111
ref: 10
GSX750EE
SWITCH ASSY,HA
€ 161.00
10
3740045121
ref: 10
GSX750EE E34
SWITCH ASSY, HANDLE LH
€ 130.00
11
3757145110
ref: 11
LEVER,STARTER
3757145110
€ 19.00
12
3757345110
ref: 12
WASHER
3757345110
€ 2.00
13
0832211068
ref: 13
WASHER 6MM
€ 2.00
14
0211206088
ref: 14
SCREW
€ 2.00
15
0211205258
ref: 15
SCREW
0211205258
€ 2.00
16
5766149100
ref: 16
COVER
5766149100
€ 5.00
