SIGNAL GENERATOR

GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

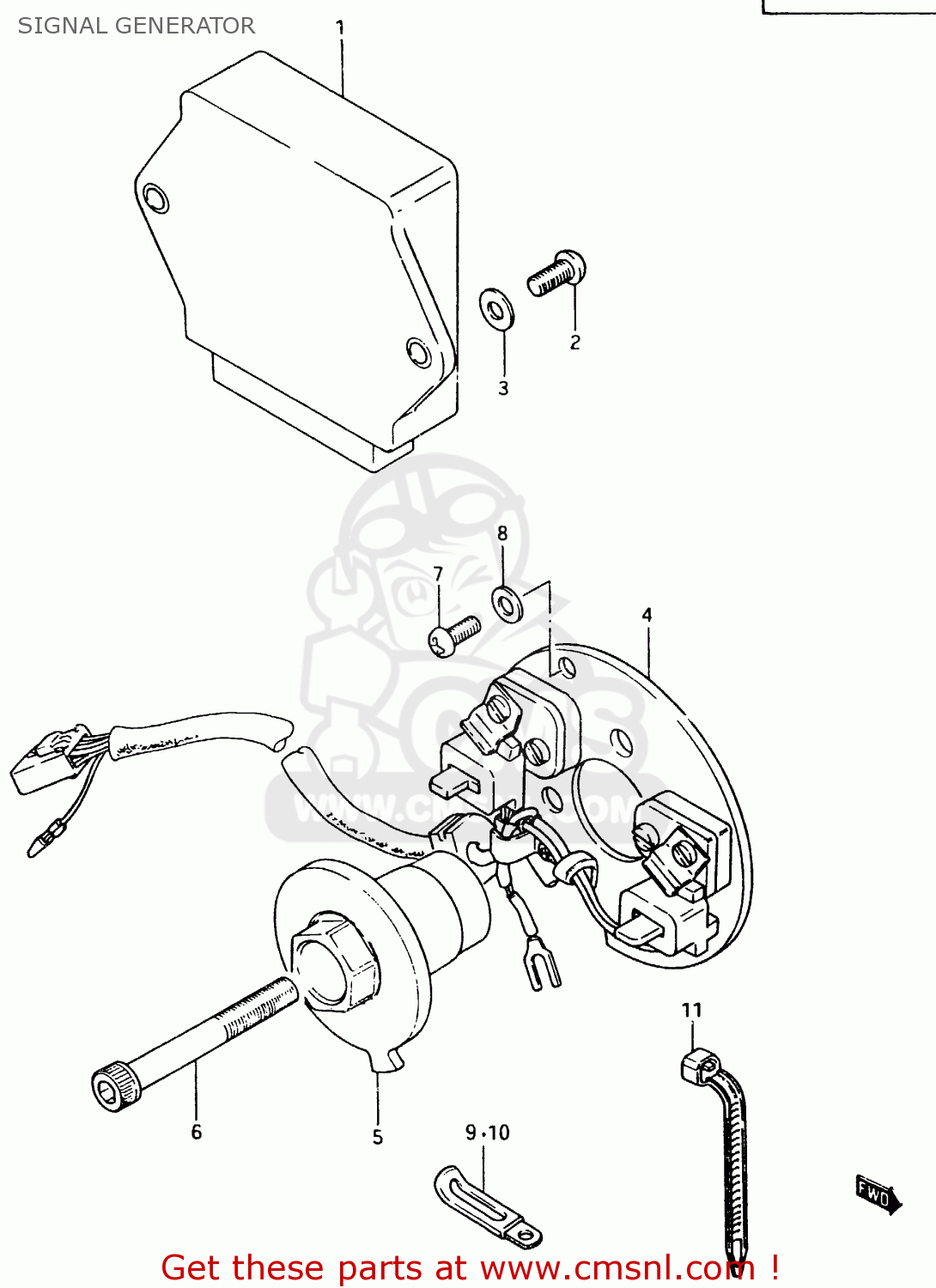

Signal generator diagram GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

prices are in EUR

ref

part #

description

quantity

3290031310
ref: 1

IGNITER UNIT ASSEMBLY

€ 565.50

0211206126
ref: 2

SCREW

€ 1.50

0832221066
ref: 3

WASHER, LOWER

€ 2.00

3311031311
ref: 4
FROM 33110-31310

STATOR,SIGNAL GENERATOR

€ 262.50

3312031310
ref: 5

ROTOR,SIGNAL

€ 155.50

0910608018
ref: 6

BOLT

€ 3.00

0912505024
ref: 7

SCREW(5X12)

€ 2.00

0916005027
ref: 8

WASHER

€ 2.50

0940406401
ref: 9
~E.NO.126143

CLAMP L:35

€ 2.50

0940406422
ref: 9
E.NO.126144~

CLAMP

€ 2.50

0940408402
ref: 10

CLAMP

€ 3.50

0940714403
ref: 11

CLAMP(L:125)

€ 2.50
