SEAT TAIL COVER (GSX750EE)

GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

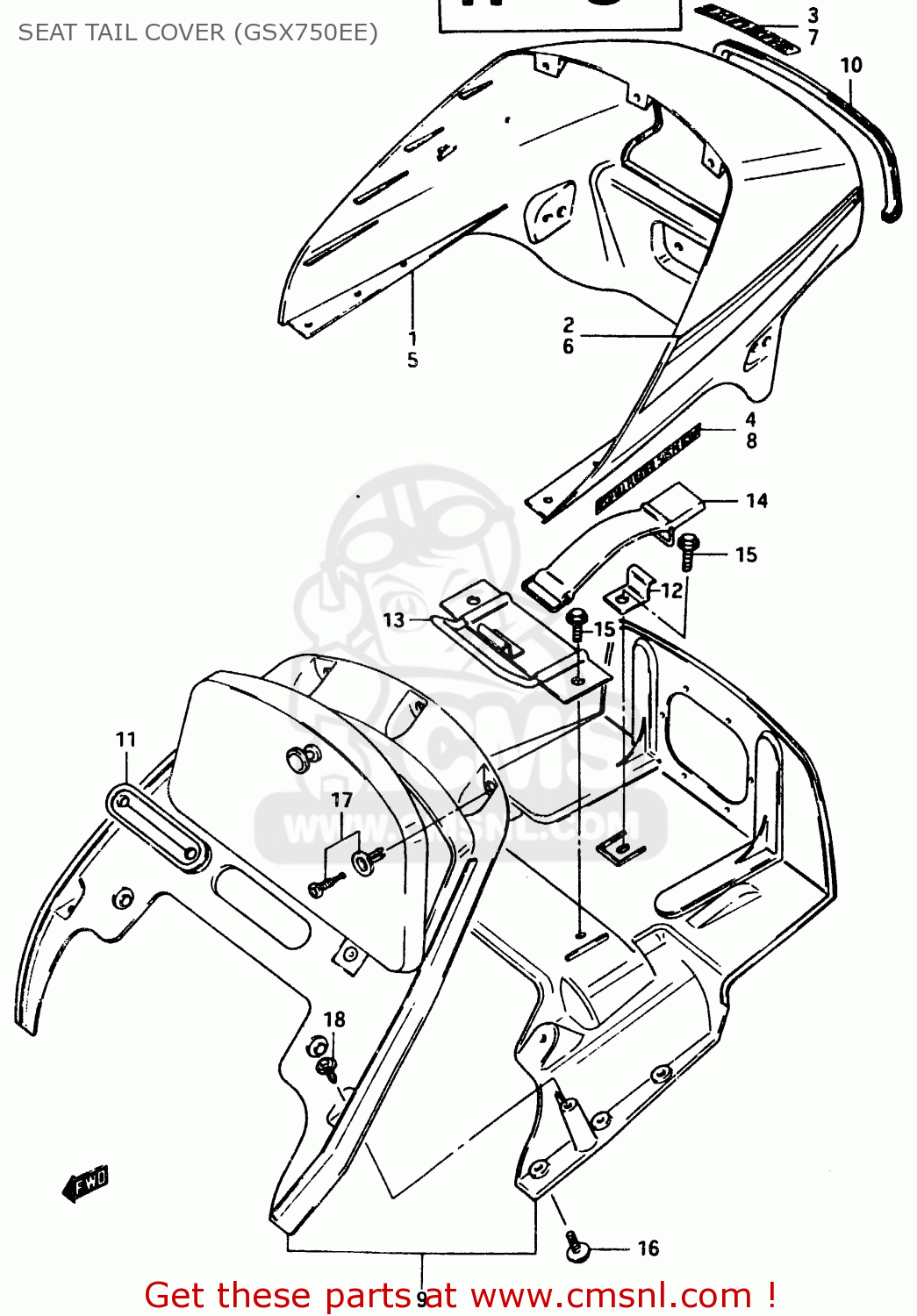

Seat tail cover (gsx750ee) diagram GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

SEAT TAIL COVER (GSX750EE) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

SEAT TAIL COVER (GSX750EE) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

prices are in EUR

ref

part #

description

quantity

1

455103134012F
ref: 1

TAIL COVER, SEAT (BLUE)

€ 154.50

1

455103134512F
ref: 1
E15,E16,E17,E18,E22,

TAIL COVER, SEAT (BLUE)

€ 0.00

1

455103137012F
ref: 1
E39

TAIL COVER, SEAT (BLUE)

€ 0.00

2

681603131073J
ref: 2

TAPE SET, SEAT TAIL COVER

€ 0.00

3

6816631300064
ref: 3

EMBLEM(WHITE)

€ 3.50

4

682353130091R
ref: 4

EMBLEM

€ 12.00

4

682350470091R
ref: 4
E39

EMBLEM

€ 2.50

5

455103134017R
ref: 5

TAIL COVER, SEAT (RED)

€ 154.50

5

455103134517R
ref: 5
E15,E16,E17,E18,E22,

TAIL COVER, SEAT (RED)

€ 0.00

5

455103137017R
ref: 5
E39

TAIL COVER, SEAT (RED)

€ 0.00

6

681603131099F
ref: 6

TAPE SET, SEAT TAIL COVER

€ 0.00

7

6816631300064
ref: 7

EMBLEM(WHITE)

€ 3.50

8

682353130091R
ref: 8

EMBLEM

€ 12.00

8

682350470091R
ref: 8
E39

EMBLEM

€ 2.50

9

4551531301
ref: 9

FLAP,SEAT TAIL COVER

€ 35.50

10

4556231300
ref: 10

MOLDING,SEAT TAIL COVER

€ 7.00

11

4552231300
ref: 11

GROMMET,SEAT TAIL COVER

€ 13.00

12

4522531300
ref: 12

PLATE,CHAIN LOCK HOLDER

€ 3.00

13

4522031300
ref: 13

PLATE,SEAT HOOK

€ 9.00

14

0946200040
ref: 14

BAND

€ 4.50

15

0154706165
ref: 15

BOLT

€ 2.50

16

0215205085
ref: 16

SCREW

€ 2.00

17

0940906307
ref: 17

CLIP

€ 3.00

18

0315105125
ref: 18

SCREW

€ 1.50
