FRONT FENDER (GSX750ESD/ESE/EFE)

GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

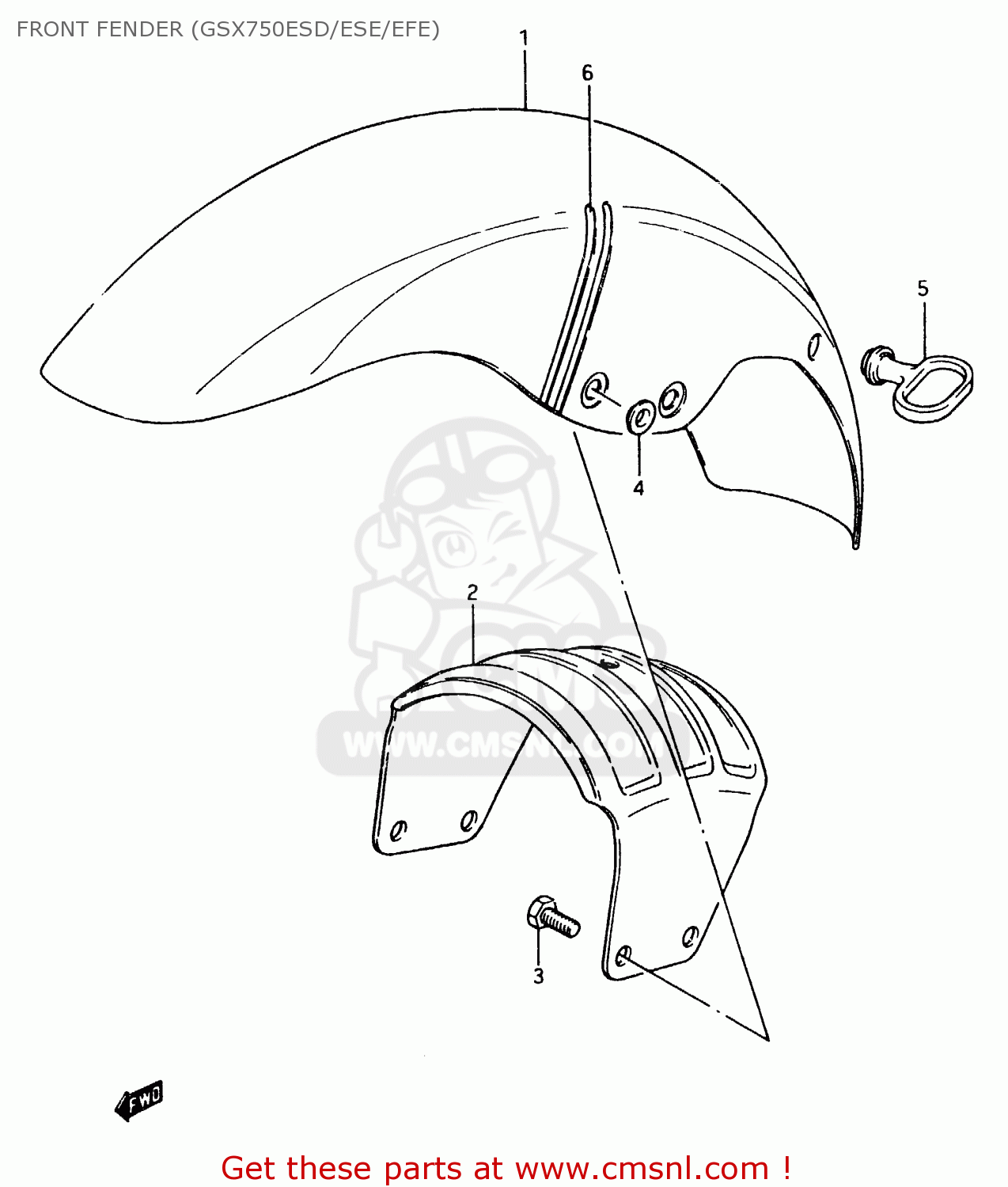

Front fender (gsx750esd/ese/efe) diagram GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

FRONT FENDER (GSX750ESD/ESE/EFE) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

FRONT FENDER (GSX750ESD/ESE/EFE) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

prices are in EUR

ref

part #

description

quantity

1

531113130007P
ref: 1
GSX750ESD

FENDER,FR

€ 116.50

1

531113130012F
ref: 1
GSX750ESD

FENDER, FRONT (BLUE)

€ 116.50

1

531113130016D
ref: 1
GSX750ESE/EFE

FENDER,FRONT

€ 116.50

2

5311431300
ref: 2

BRACE,FRONT FENDER

€ 17.00

3

0110708168
ref: 3

BOLT

€ 2.00

4

0916908032
ref: 4

WASHER

€ 11.50

5

5862121203A
ref: 5

GUIDE,CABLE

€ 7.50

6

6815931300291
ref: 6

DENT,FRONT FENDER

€ 2.50
