REAR COMBINATION LAMP

GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

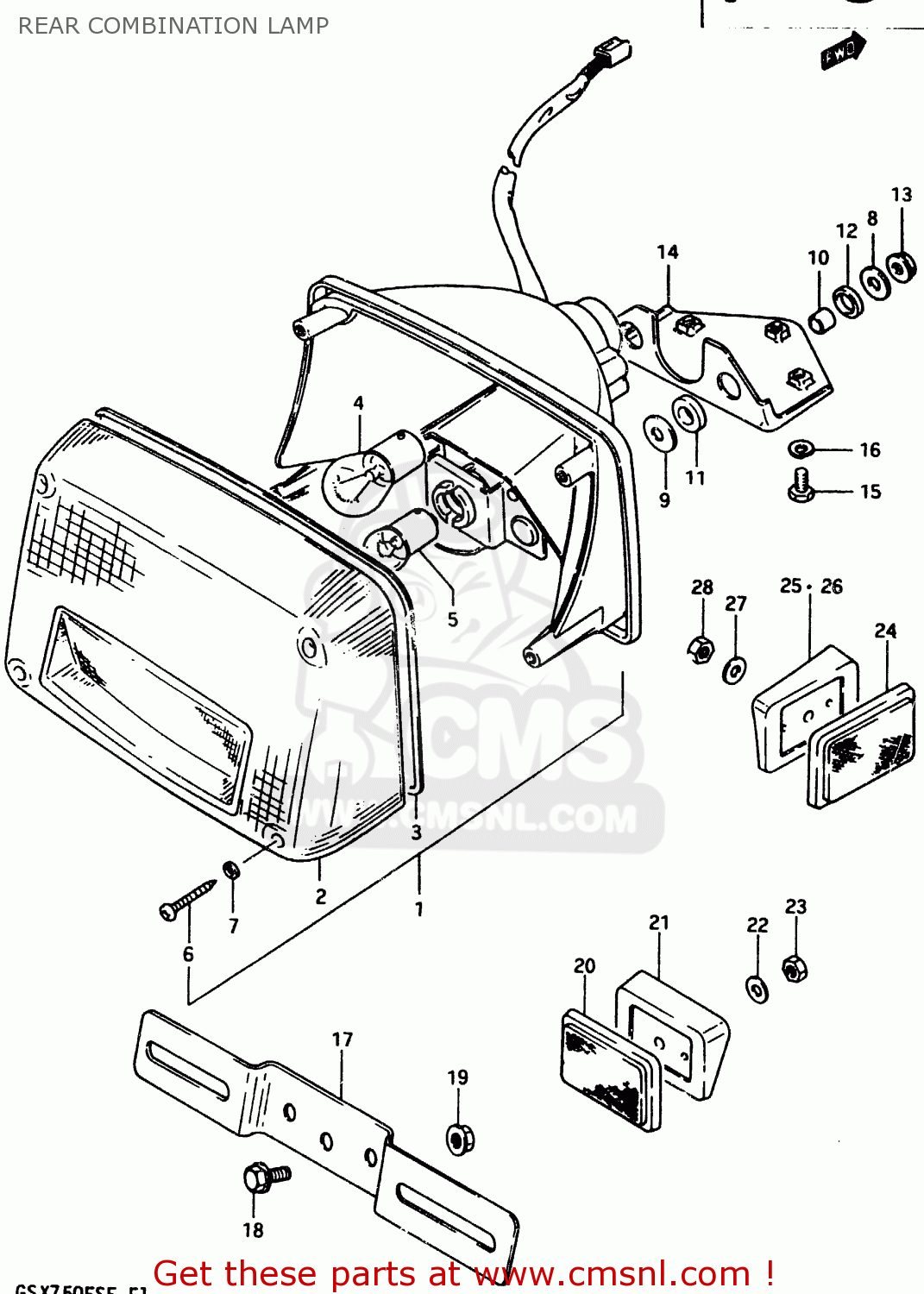

Rear combination lamp diagram GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

REAR COMBINATION LAMP GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
REAR COMBINATION LAMP GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
REAR COMBINATION LAMP GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
3571031330
ref: 1
E1,E6,E24,E27,E30
LAMP ASSEMBLY,REAR COMBINATION
€ 209.50
1
3571031320
ref: 1
E2,E4,E21
LAMP ASSY, REAR COMBINATION
€ 161.00
1
3571031350
ref: 1
E15,E26
LAMP ASSY, REAR COMBINATION
€ 0.00
1
3571031380
ref: 1
E16,E18,E39
LAMP ASSY, REAR COMBINATION
€ 161.00
1
3571031370
ref: 1
E17
LAMP ASSY, REAR COMBINATION
€ 161.00
1
3571031391
ref: 1
E22,E25
LAMP ASSY,RR C
€ 161.00
1
3571031360
ref: 1
E34,E53
LAMP ASSY, REAR COMBINATION
€ 161.00
2
3571249031
ref: 2
E1,E6,E24,E27,E30
LENS
3571249031
€ 43.50
2
3571249084
ref: 2
E2,E4,E15,E16,E18,E2
LENS,RR COMBI
€ 43.50
2
3571249071
ref: 2
E17
LENS
€ 44.00
2
3571249091
ref: 2
E22,E25
LENS
3571249091
€ 37.50
2
3571249062
ref: 2
E34,E53
LENS
3571249062
€ 49.00
3
3571349030
ref: 3
GASKET (NAS)
3571349030
€ 12.50
4
0947112035
ref: 4
E1,E6,E24,E27,E30
BULB(12V23W)
0947112035
€ 5.50
4
0947112046
ref: 4
E2,E4,E15,E16,E17,E1
BULB(12V21/5W)
0947112046
€ 1.50
5
0947112037
ref: 5
E1,E6,E24,E27,E30
BULB
€ 7.00
5
0947112059
ref: 5
E2,E4,E15,E16,E17,E1
BULB
€ 4.00
6
3562749030
ref: 6
SCREW,REAR COMBINATION LAMP
3562749030
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
0916006057
ref: 8
WASHER
€ 2.00
9
0916006012
ref: 9
WASHER(6,5X22X1.6)
€ 2.00
10
0918006038
ref: 10
SPACER(6.1X9X7.5)
0918006038
€ 2.00
11
0932009003
ref: 11
CUSHION
0932009003
€ 2.00
12
0932009004
ref: 12
CUSHION
0932009004
€ 2.50
13
0831626066
ref: 13
NUT
€ 2.00
14
3572631300
ref: 14
BRACKET,REAR COMBINATION LAMP
3572631300
€ 8.00
15
0110706126
ref: 15
BOLT
€ 2.00
16
0832121066
ref: 16
WASHER,LOCK
0832121066
€ 2.00
17
3592744110
ref: 17
PLATE,RR LICENSE
3592744110
€ 22.50
18
0151706165
ref: 18
BOLT
€ 2.50
19
0831626066
ref: 19
NUT
€ 2.00
20
3597049330
ref: 20
E17,E22,E25
REFLEX REFLECTOR,RR
3597049330
€ 16.50
21
3597731370
ref: 21
E17,E22,E25
SPACER
€ 2.50
22
0916005013
ref: 22
E17,E22,E25
WASHER(5.2X16X1)
0916005013
€ 1.50
23
0831011056
ref: 23
E17,E22,E25
NUT
€ 2.50
24
3595049330
ref: 24
E39
REFLECTOR,REFLEX
3595049330
€ 15.00
25
3597731300
ref: 25
E39
SPACER, RH
€ 0.00
26
3597831300
ref: 26
E39
SPACER, LH
€ 0.00
27
0916005013
ref: 27
E39
WASHER(5.2X16X1)
0916005013
€ 1.50
28
0831011056
ref: 28
E39
NUT
€ 2.50
