FRONT WHEEL (GSX750ESE/EFE E6, E24)

GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

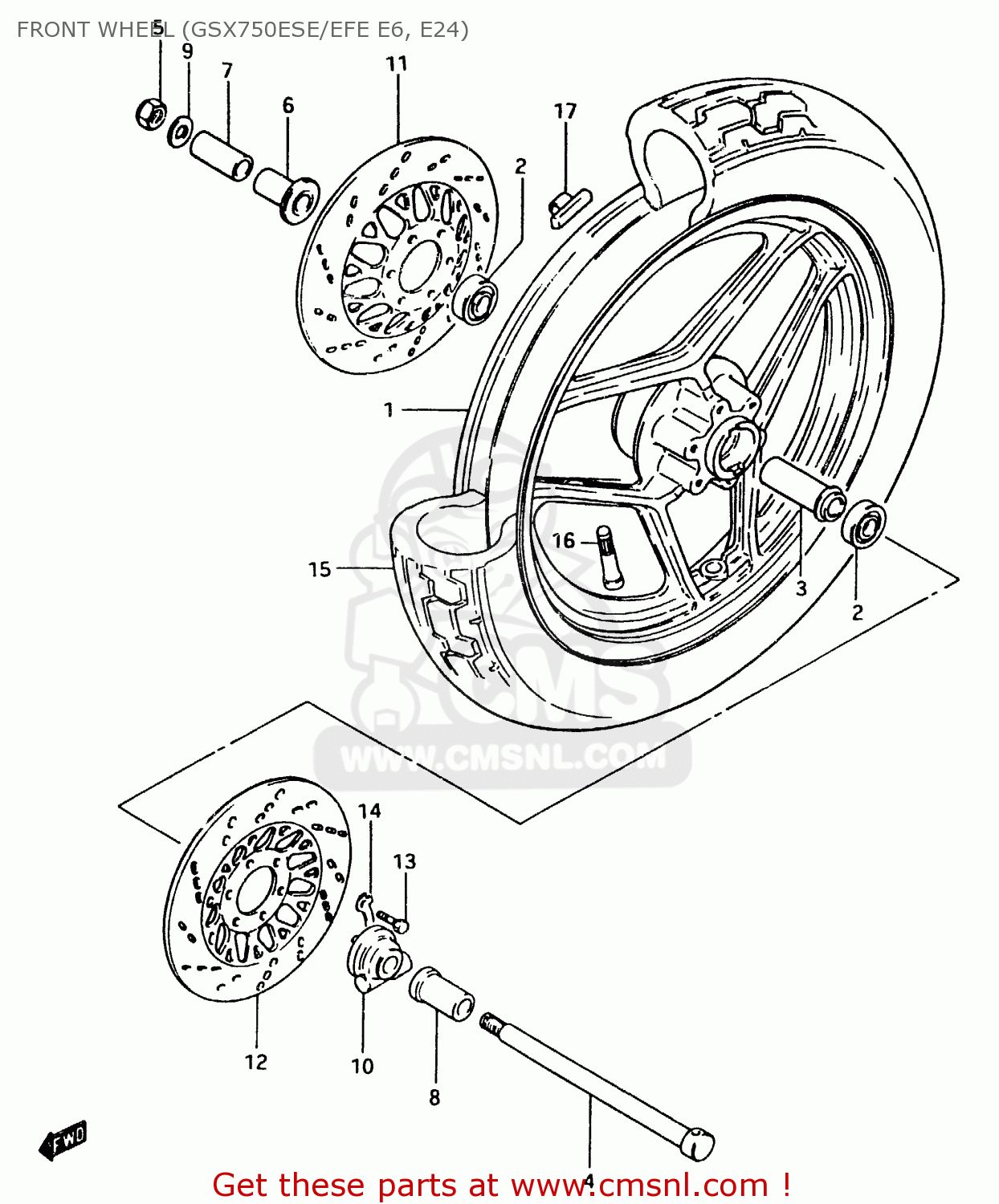

Front wheel (gsx750ese/efe e6, e24) diagram GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)

FRONT WHEEL (GSX750ESE/EFE E6, E24) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
FRONT WHEEL (GSX750ESE/EFE E6, E24) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
FRONT WHEEL (GSX750ESE/EFE E6, E24) GSX750EF 1984 (E) (E1 2 4 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
541113134019T
ref: 1
WHEEL, FRONT (MT2.50X16) GOLD
€ 0.00
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
5473009300
ref: 3
SPACER,FRONT HUB BEARING
€ 9.50
4
5471109300
ref: 4
AXLE,FR
5471109300
€ 42.00
5
0915912011
ref: 5
NUT
0915912011
€ 8.50
6
5474018402
ref: 6
SPACER,FR AXLE,R
5474018402
€ 18.50
7
5474149300
ref: 7
SPACER,FR AXLE,R
5474149300
€ 19.00
8
5474149000
ref: 8
SPACER,FR AXLE,L
5474149000
€ 16.50
9
0832221128
ref: 9
WASHER
0832221128
€ 2.00
10
5460031301
ref: 10
BOX ASSEMBLY,SPEEDOMETER GEAR
5460031301
€ 90.00
11
5921109300
ref: 11
DISC,BRAKE,RIGHT
5921109300
€ 243.00
12
5922109300
ref: 12
DISC,BRAKE,LEFT
5922109300
€ 243.00
13
0910008140
ref: 13
BOLT(8X25)
0910008140
€ 2.00
14
0916908016
ref: 14
WASHER
0916908016
€ 3.50
15
5510031370
ref: 15
BS
TIRE, TUBELESS (120/80V16)
€ 0.00
16
4313075150
ref: 16
VALVE,TIRE
€ 14.50
17
5541100A0019T
ref: 17
BALANCER,WHEEL
€ 6.50
17
5541200A0019T
ref: 17
BALANCER,WHEEL
€ 7.00
17
5541300A0019T
ref: 17
BALANCER,WHEEL
€ 4.00
