CAM CHAIN

GSXR1000 2007 (K7) USA (E03)

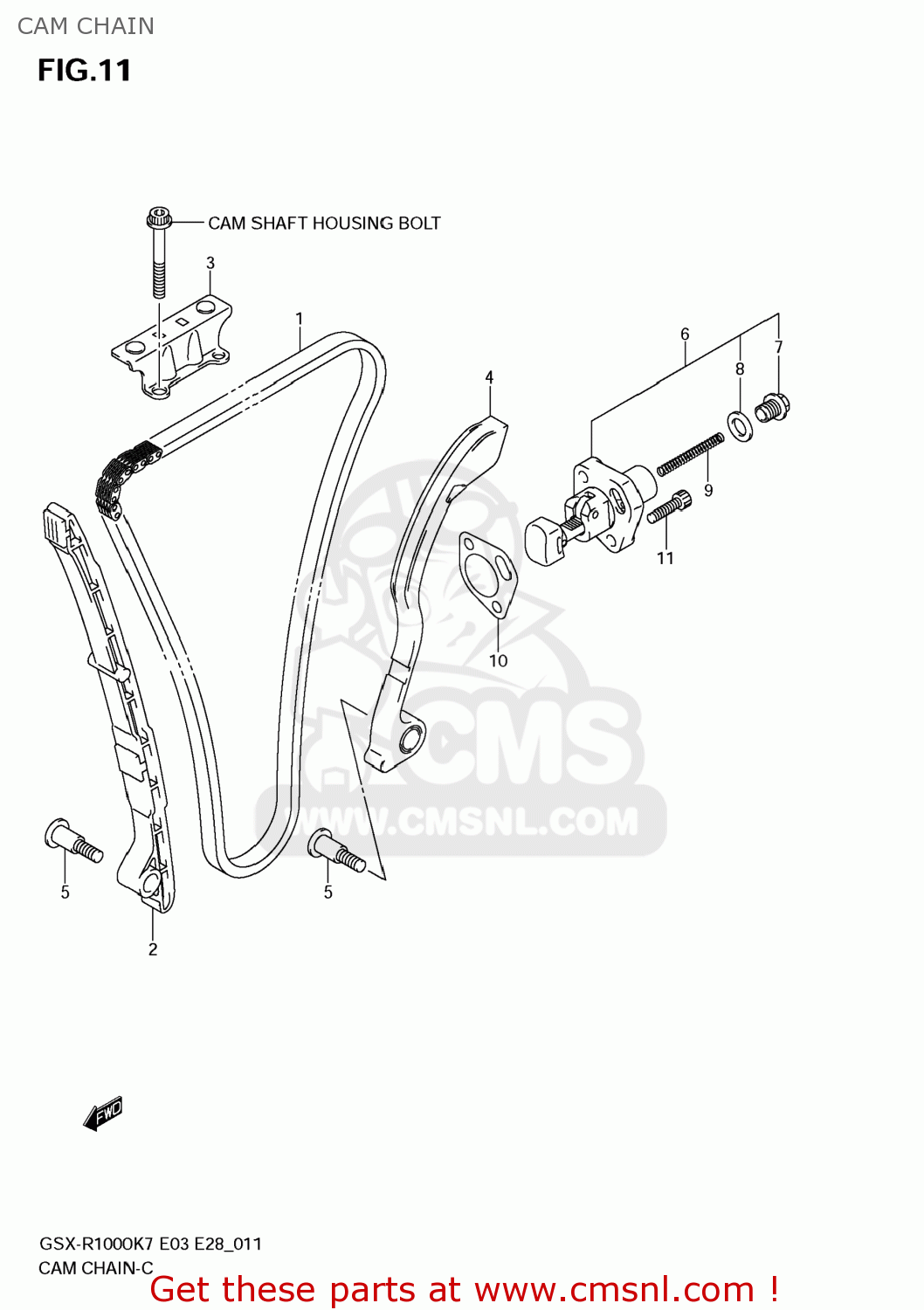

Cam chain diagram GSXR1000 2007 (K7) USA (E03)

CAM CHAIN GSXR1000 2007 (K7) USA (E03)

CAM CHAIN GSXR1000 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1276021H00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 154.00

2

1277121H00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 19.50

3

1278235F10
ref: 3

GUIDE CAM CHAIN NO,2

€ 17.00

4

1281121H00
ref: 4

TENSIONER,CAM CHAIN

€ 43.50

5

1281231G00
ref: 5

BOLT,CAM CHAIN TENSIONER

€ 4.00

6

1283041G11
ref: 6

ADJUSTER ASSY,TENSIONER

€ 113.00

7

1283305A00
ref: 7

PLUG,FR TENSIONER ADJ

€ 9.00

8

1283724F10
ref: 8

GASKET,TENSIONER ADJUSTER (NAS)

€ 4.00

9

1283141G00
ref: 9

SPRING

€ 3.50

10

1283718G00
ref: 10

GASKET,TENSIONER ADJUSTER (NAS)

€ 5.00

11

071300625B
ref: 11

BOLT

€ 3.00
