THROTTLE BODY HOSE/JOINT
GSXR1000 2007 (K7) USA (E03)

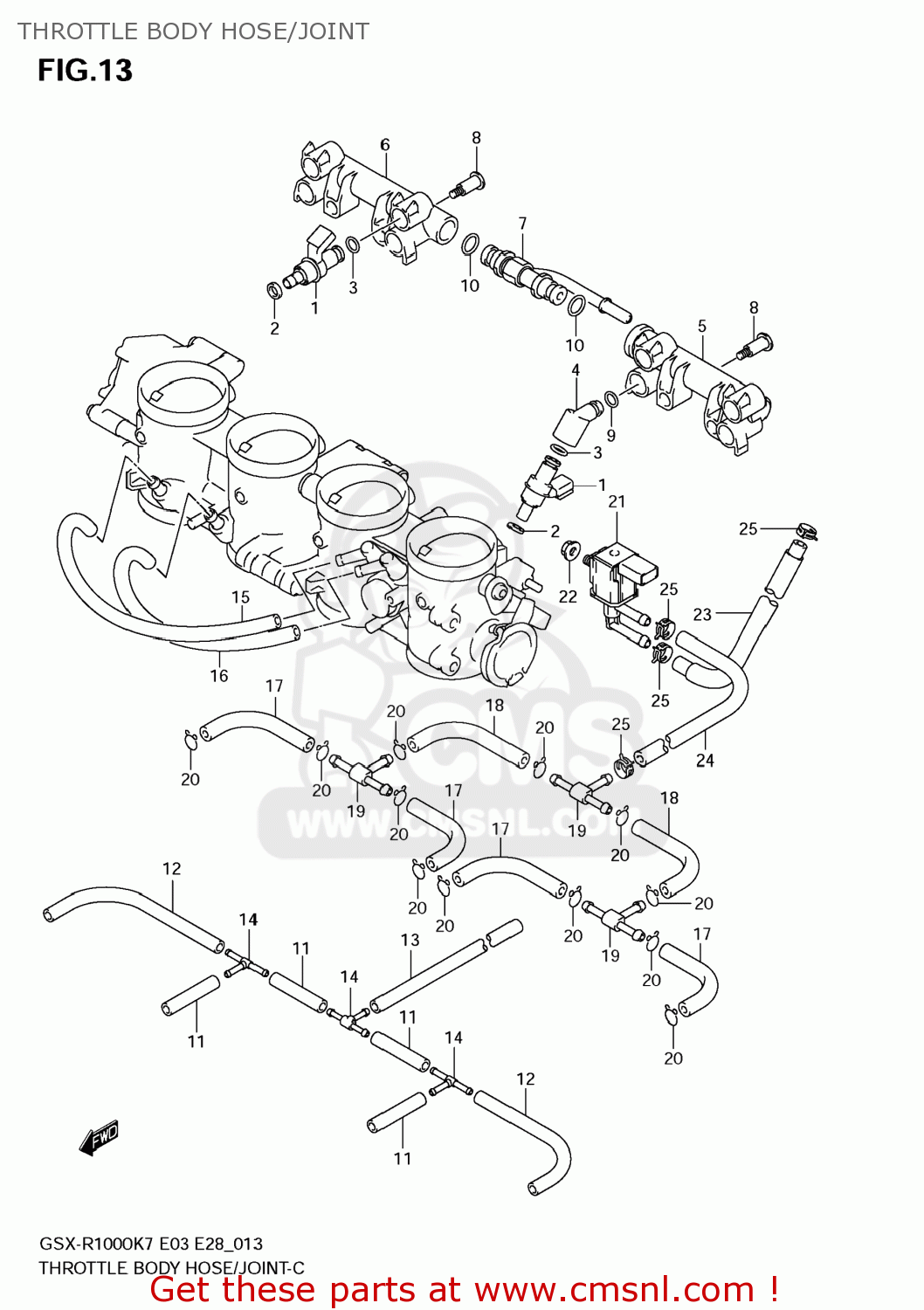

Throttle body hose/joint diagram GSXR1000 2007 (K7) USA (E03)
THROTTLE BODY HOSE/JOINT GSXR1000 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1571021H00
ref: 1
INJECTOR ASSY
€ 284.00
2
1572221H00
ref: 2
RING,SEAL
€ 9.50
3
1572121H00
ref: 3
O RING
€ 7.00
4
1347321H00
ref: 4
PIPE,FUEL
€ 13.00
5
1347421H00
ref: 5
PIPE,FUEL
€ 71.50
6
1347421H10
ref: 6
PIPE,FUEL
€ 71.50
7
1347321H10
ref: 7
PIPE,FUEL
€ 162.50
8
1360135F00
ref: 8
SCREW
€ 7.00
9
1572124F00
ref: 9
O RING
€ 7.50
10
1572110G00
ref: 10
O RING
€ 7.00
11
1369724F00
ref: 11
HOSE,RUBBER(L:35)
€ 2.50
12
1369724F20
ref: 12
HOSE,RUBBER(L:100)
€ 3.50
13
1368321H00
ref: 13
PIPE
€ 7.50
14
1347124F30
ref: 14
JOINT
€ 11.50
15
1368021H10
ref: 15
TUBE
€ 15.00
16
1369821H00
ref: 16
TUBE
€ 7.00
17
1368321H10
ref: 17
HOSE
€ 8.00
18
1368321H20
ref: 18
HOSE
€ 8.50
19
1368536E50
ref: 19
JOINT
€ 8.00
20
1369324F00
ref: 20
CLIP
€ 2.00
21
1811752G10
ref: 21
VALVE,CANISTER PURGE
€ 74.00
22
083161006B
ref: 22
NUT
€ 2.50
23
1368021H00
ref: 23
HOSE,CANISTER PURGE
€ 8.00
24
0935554115600
ref: 24
HOSE(5.4X11.4X600)
€ 20.00
25
0940111413
ref: 25
CLIP
€ 2.50
