CLUTCH MASTER CYLINDER
GSXR1000 2007 (K7) USA (E03)

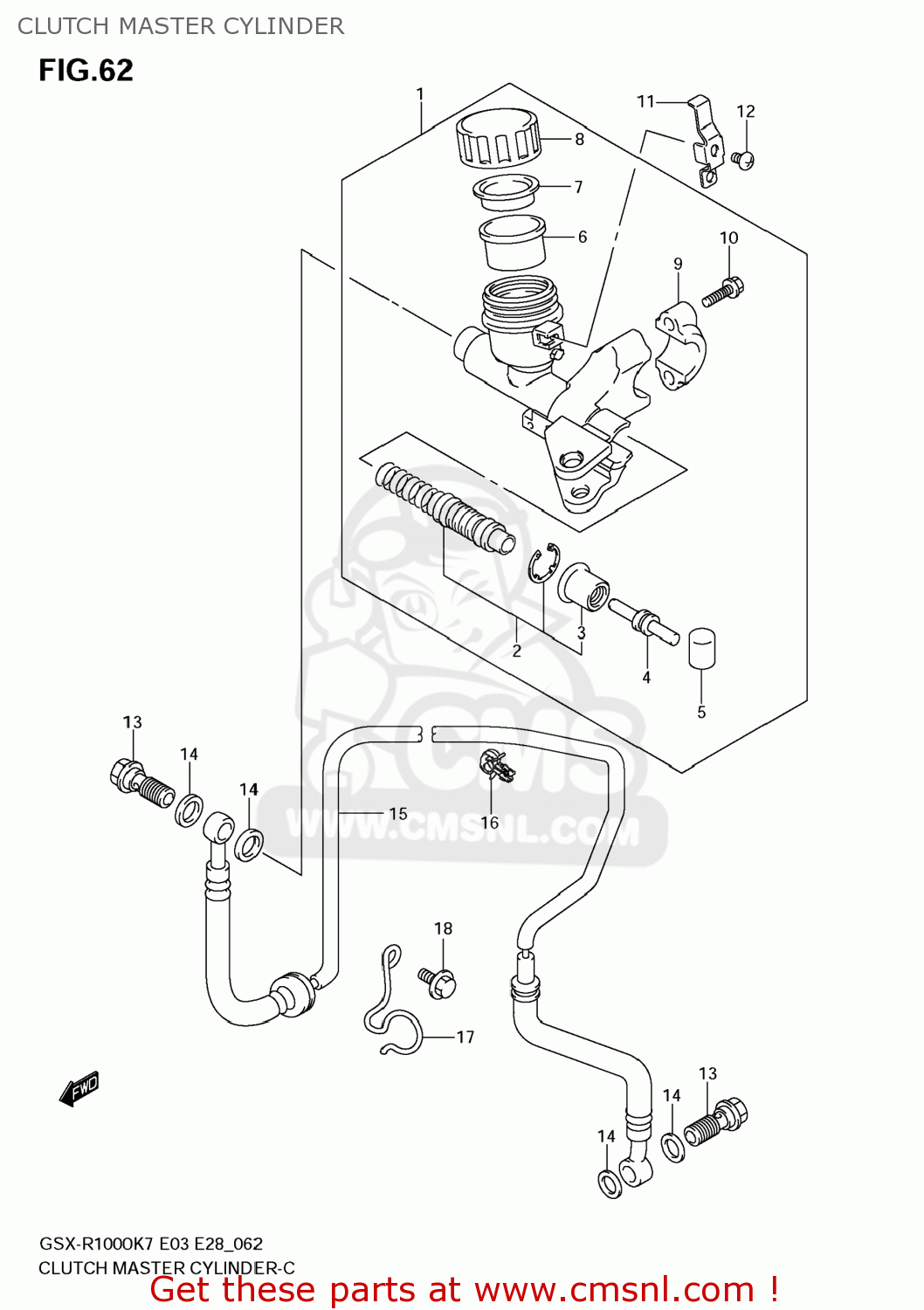

Clutch master cylinder diagram GSXR1000 2007 (K7) USA (E03)
CLUTCH MASTER CYLINDER GSXR1000 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5980021H00
ref: 1
CYLINDER ASSY,CLUTCH MASTER
€ 322.00
2
5980021810
ref: 2
PISTON & CUP SET
€ 39.00
3
5966644300
ref: 3
BOOT
€ 6.00
4
5987138A00
ref: 4
PUSH ROD
€ 6.50
5
5989208A00
ref: 5
BUSH
€ 5.50
6
6966700B20
ref: 6
DIAPHRAGM
€ 9.50
7
6966800B20
ref: 7
PLATE
€ 4.00
8
6966903D10
ref: 8
CAP
€ 11.00
9
5967136500
ref: 9
HOLDER
€ 10.00
10
5967502FA0
ref: 10
BOLT(6X22)
€ 3.00
11
5974317C00
ref: 11
PLATE,RESERVOIR TANK CAP
€ 8.00
12
021420410A
ref: 12
SCREW
€ 1.50
13
0936010062
ref: 13
BOLT UNION
€ 5.00
14
0916110009
ref: 14
WASHER(10X15X1.5)
€ 2.00
15
5991021H00
ref: 15
HOSE,CLUTCH
€ 211.00
16
0940310406
ref: 16
CLAMP
€ 3.00
17
5991521H00
ref: 17
CLAMP,CLUTCH HOSE NO.1
€ 16.50
18
015500612A
ref: 18
BOLT
€ 2.50
