CRANKCASE
GSXR1000 2007 (K7) USA (E03)

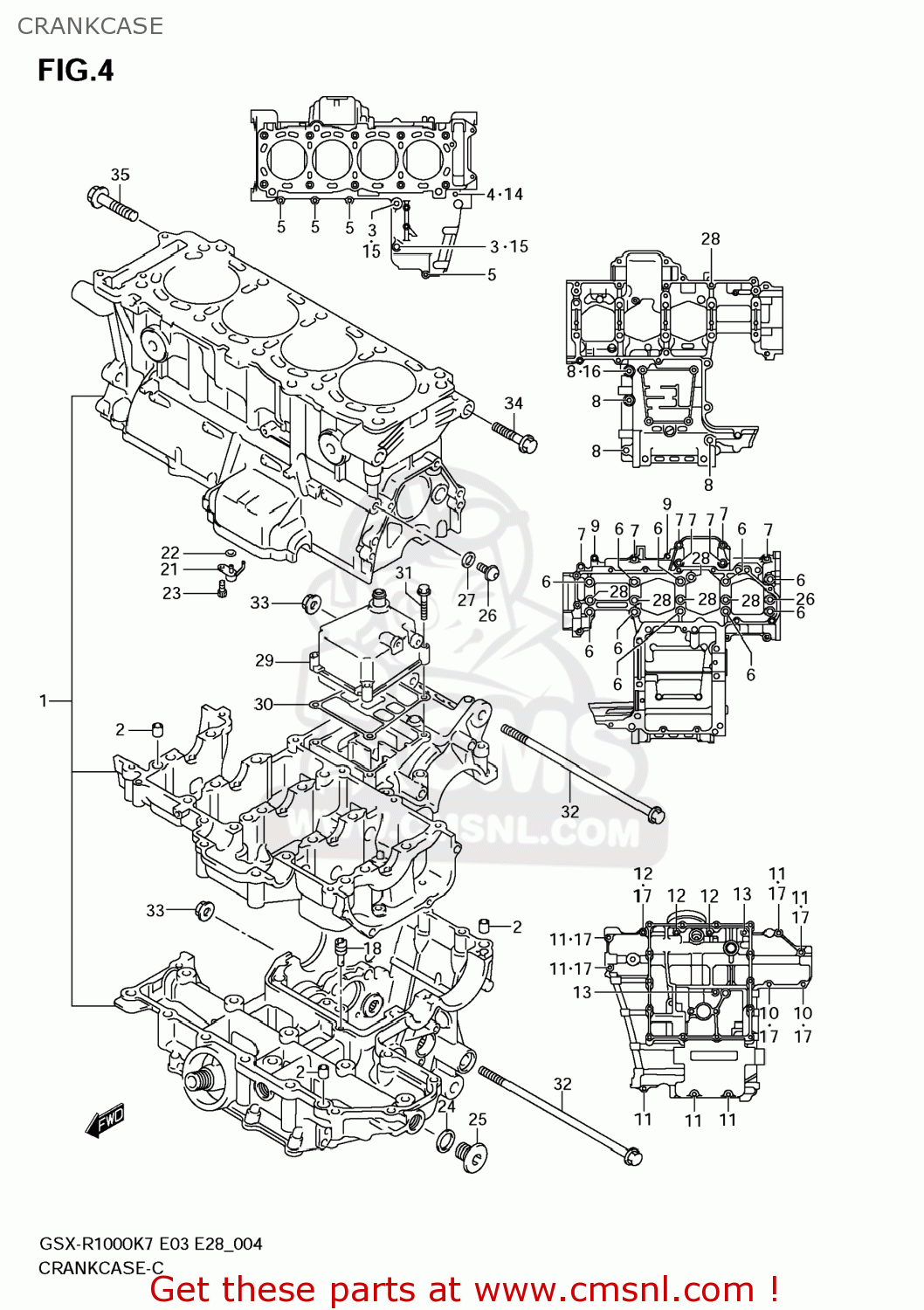

Crankcase diagram GSXR1000 2007 (K7) USA (E03)
CRANKCASE GSXR1000 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130021860
ref: 1
CRANKCASE SET
€ 3,103.50
2
1131933E50
ref: 2
PIN,CRANKCASE
€ 4.00
3
0910608139
ref: 3
BOLT(8X120)
€ 10.00
4
015470680A
ref: 4
BOLT
€ 2.00
5
015470640A
ref: 5
BOLT
€ 2.50
6
0910309012
ref: 6
BOLT(9X95)
€ 7.00
7
0910308170
ref: 7
09103-08339
BOLT
€ 3.50
8
071200865A
ref: 8
BOLT
€ 2.50
9
015470640A
ref: 9
BOLT
€ 2.50
10
015470630A
ref: 10
BOLT
€ 2.50
11
015470640A
ref: 11
BOLT
€ 2.50
12
015470660A
ref: 12
BOLT
€ 2.50
13
015470670A
ref: 13
BOLT
€ 2.50
14
0916806023
ref: 14
GASKET(5.8X13X1.2) (NAS)
€ 2.00
15
0916808016
ref: 15
GASKET(8.2X14X1) (NAS)
€ 1.00
16
0916808016
ref: 16
GASKET(8.2X14X1) (NAS)
€ 1.00
17
0916806023
ref: 17
GASKET(5.8X13X1.2) (NAS)
€ 2.00
18
0949328012
ref: 18
JET(140)
€ 8.00
19
1222848B000E0
ref: 19
BEARING,CRANK THRUST(GREEN)
€ 8.00
20-1
1222848B000B0
ref: 20-1
BEARING,CRANK THRUST(BROWN)
€ 7.50
20-2
1222848B000C0
ref: 20-2
BEARING,CRANK THRUST(RED)
€ 7.50
20-3
1222848B000D0
ref: 20-3
BEARING,CRANK THRUST(YELLOW)
€ 7.50
20-4
1222848B000E0
ref: 20-4
BEARING,CRANK THRUST(GREEN)
€ 8.00
20-5
1222848B000F0
ref: 20-5
BEARING,CRANK THRUST(BLUE)
€ 7.50
20-6
1222848B000G0
ref: 20-6
BEARING,CRANK THRUST(ORANGE)
€ 7.50
20-7
1222848B000H0
ref: 20-7
BEARING,CRANK THRUST(BLACK)
€ 7.50
21
1139021H00
ref: 21
JET,PISTON COOLING
€ 26.50
22
0928004004
ref: 22
O RING(D:1.2,ID:4)
€ 2.00
23
0910606075
ref: 23
BOLT(6X12)
€ 2.50
24
0916816002
ref: 24
GASKET(16X22X2) (NAS)
€ 2.00
25
0924816013
ref: 25
PLUG
€ 4.50
26
0924810010
ref: 26
PLUG(10X10)
€ 4.00
27
0916810002
ref: 27
GASKET(10X14X3.6) (NAS)
€ 2.00
28
0928008012
ref: 28
O RING(D:1.9,ID:7.8)
€ 4.00
29
1137021H00
ref: 29
COVER,BREATHER
€ 84.50
30
1148435F00
ref: 30
GASKET,BREATHER COVER (NAS)
€ 3.50
31
015470630A
ref: 31
BOLT
€ 2.50
32
0910310041
ref: 32
09103-10041-A05
BOLT 10X215
€ 9.00
33
0915910115
ref: 33
NUT
€ 4.00
34
0910610069
ref: 34
BOLT(10X45)
€ 4.50
35
0910610070
ref: 35
BOLT(10X55)
€ 4.50
